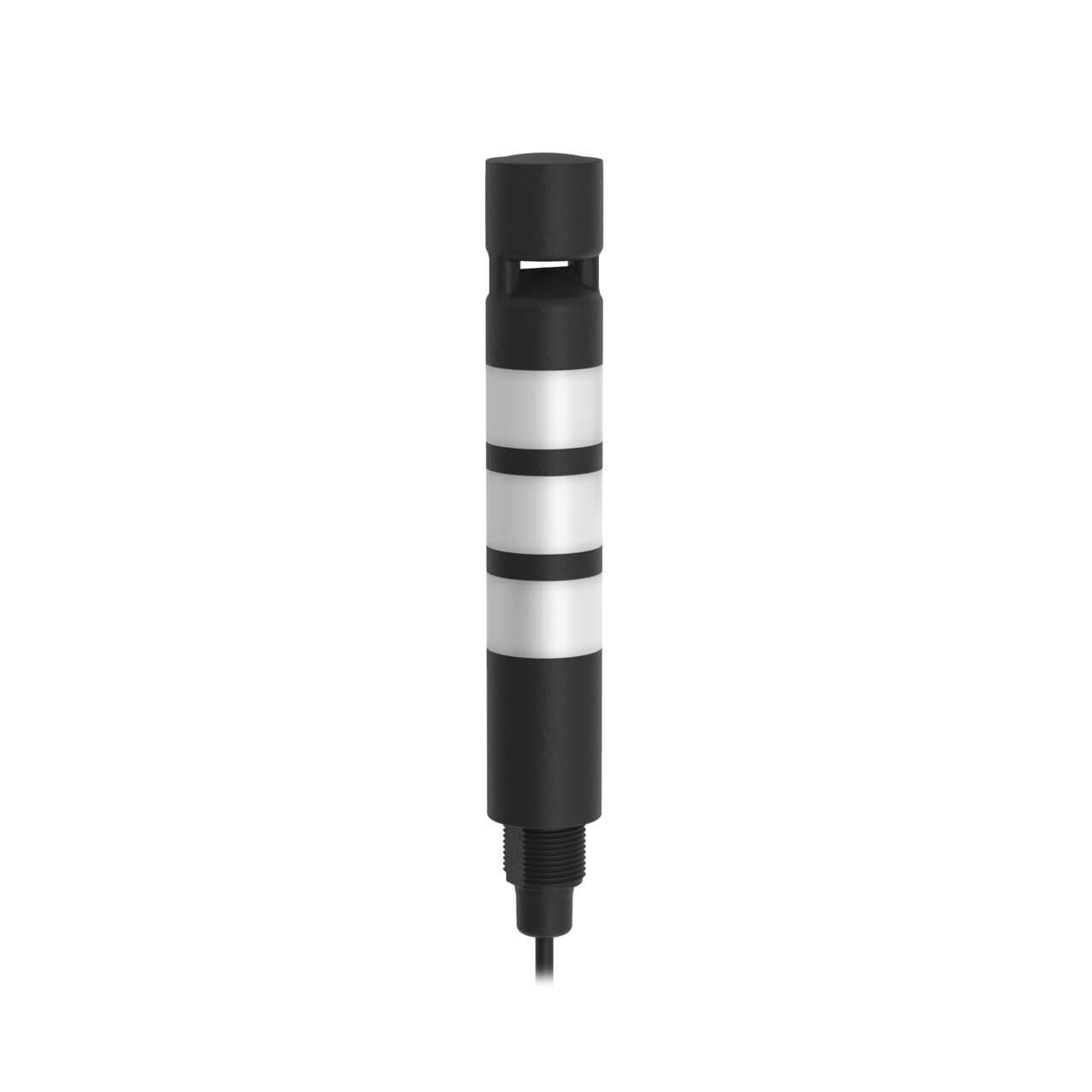

TL30BWYGXXAXC1 Banner Signal Towers
Part#:TL30BWYGXXAXC1
Manufacturer:Banner
Alt. Part#:808195
Product Lifecycle:Active
Get a quick Quote!
TL30 Basic Tower Light; Black Housing: 3-Color Audible Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: White Yellow Green; 1.2 m (4 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL30BWYGXXAXC1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight18.14368 g
- Country Of OriginUS
- Mounting Thread M22 x 1.5
- Indication Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Housing Style Base Mount - Tower
- Power DC
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Product Size (mm) 30
- Color 2 - Wavelength/Color Temp/Coordinates 592 nm
- Environmental Rating IP65
- Number of Colors / Segments 3
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 5
- Max Audible Intensity (db at 1m) 90
- Power Source DC
- Number of Tower Light Segments 4
- Supply Voltage 12-30 V dc
- Audible Operating Frequency (kHz) 2.8
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Max Current - Audible Alarm (mA) 20
- Primary Window Material Polycarbonate Diffused
- Max Current Color (mA) 40
- Max Op. Temperature (°C) 50
- Primary Housing Color Black
- Wireless No
- Lumens Color 1 7.5
- Lumens Color 3 7.5
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Quick Disconnect No
- Color Option 2 Yellow
- Audible Alarm Type Continuous
- Max Input Response Time (ms) 1
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Color Option 1 White
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 190.6
- Feature: Audible Yes
- Color 1 - Wavelength/Color Temp/Coordinates 5500K
- Input Type Bimodal (PNP/NPN)
- Multi-Color Device Simultaneous Colors On
- Lumens Color 2 6.5
- Color Option 3 Green
- Storage Temp (°C) -40 to 70
- Feature: Chemical Resistant No
- Connection Cable
- Color 3 - Wavelength/Color Temp/Coordinates 525 nm
- NEMA Type and UL Type Rating UL 4X
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL30BWYGXXAXC1 Description
Banner Engineering TL30BWYGXXAXC1 is a tower light from the Basic series featuring a monolithic design with continuous sound and 3-tiers of 3-color W+Y+G color pattern LED illumination. This audible tower/stack light has a polycarbonate (PC) base and segments, with a diameter of 30mm / 1-3/16" and is pre-wired with a 1.2m / 3.9ft. 5-wire cable terminated with bare end flying leads. The housing is black, and it operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). It offers surface or base pole mounting with an M22 thread and can operate in ambient air temperatures ranging from -40°C to +50°C. This model is rated IP65 UL type 4X, ensuring protection against dust and water ingress. It has a cylindrical shape, consumes 40mA of current, and includes 3 x digital inputs (12-30Vdc; NPN/PNP) for color control and 1 x digital input (12-30Vdc; NPN/PNP) for alarm input.
