TL30BYWBXXAXC1 Banner Electronic Components
Part#:TL30BYWBXXAXC1
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

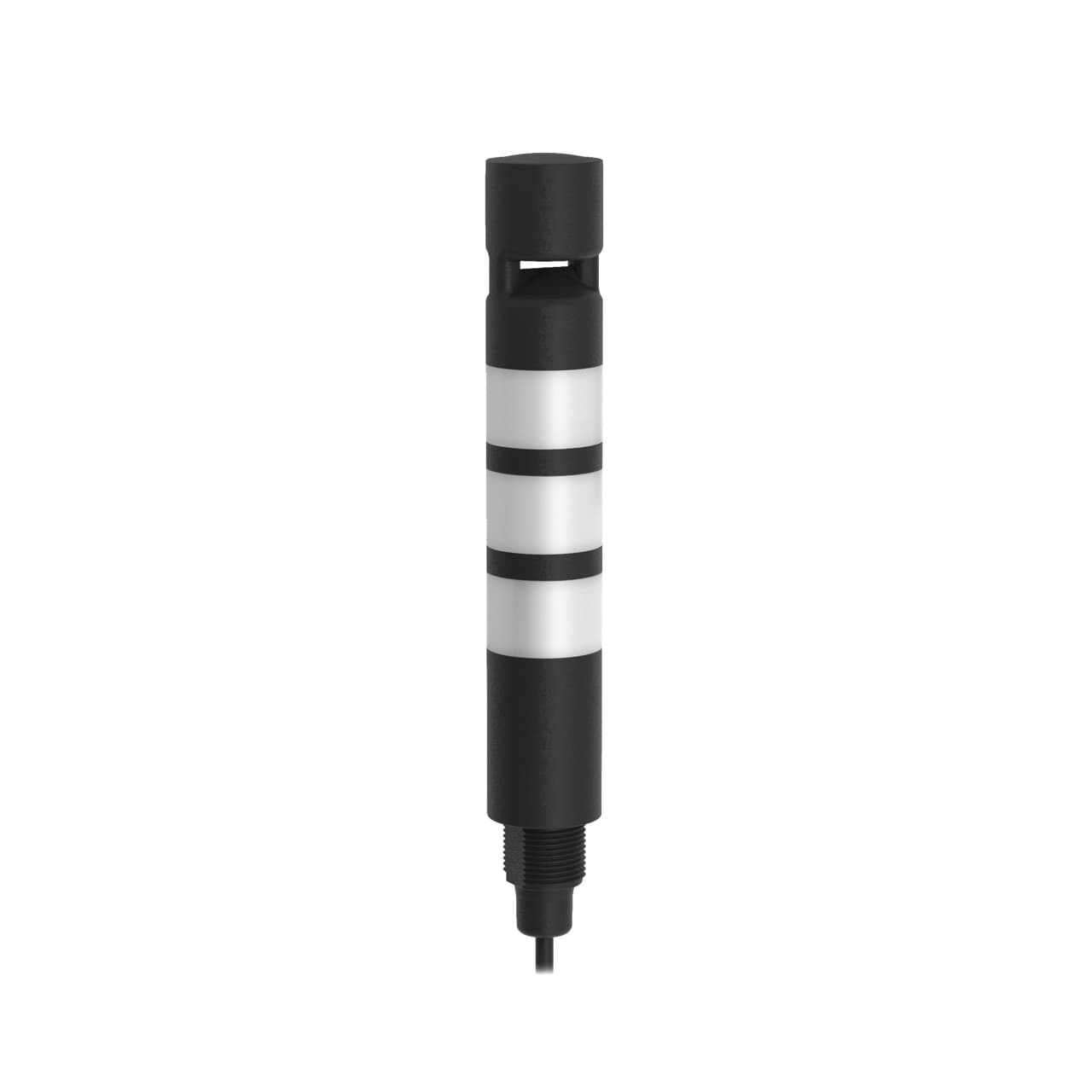

TL30 Basic Tower Light; Black Housing: 3-Color Audible Indicator, Voltage: 12-30 V dc; Environ. Rating: IP65, Input: Bimodal; Colors: Yellow White Blue, 1.2 m (4 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL30BYWBXXAXC1 Banner price in the box on the right side or send a quick quote.
Product Details
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Animation Option 1 Solid On
- Audible Alarm Type Continuous
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Hazardous Area No
- Housing Style Base Mount - Tower
- Connection Cable
- Number of Input Pins/Conductors 5
- Environmental Rating IP65
- IO Link No
- Number of Colors / Segments 3
- Color Option 1 Yellow
- Lumens Color 3 2.0
- Audible Operating Frequency (kHz) 2.8
- Min Op. Temperature (°C) -40
- Primary Window Material Polycarbonate Diffused
- Indication Yes
- Color 1 - Wavelength/Color Temp/Coordinates 592 nm
- Max Current Color (mA) 40
- Max Input Response Time (ms) 1
- Primary Housing Color Black
- Max Op. Temperature (°C) 50
- Mounting Thread M22 x 1.5
- Number of Tower Light Segments 3
- Input Type Bimodal (PNP/NPN)
- Storage Temp (°C) -40 to 70
- Wireless No
- Power Source DC
- Color Option 2 White
- Supply Voltage 12-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 190.6
- Feature: Quick Disconnect No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 6.5
- Color 3 - Wavelength/Color Temp/Coordinates 470 nm
- Max Current - Audible Alarm (mA) 20
- Pro-Editor Compatible (Discrete) No
- Multi-Color Device Simultaneous Colors On
- Power DC
- Color Option 3 Blue
- Max Audible Intensity (db at 1m) 90
- NEMA Type and UL Type Rating UL 4X
- Feature: Audible Yes
- Product Size (mm) 30
- Color 2 - Wavelength/Color Temp/Coordinates 5500K
- Lumens Color 2 7.5
- Feature: Chemical Resistant No
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
