TL30BBGYRXNXQD Banner Signal Towers
Part#:TL30BBGYRXNXQD
Manufacturer:Banner
Alt. Part#:805385
Product Lifecycle:Active
Get a quick Quote!
TL30 Basic Tower Light; Black Housing: 4-Color Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: Blue Green Yellow Red; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL30BBGYRXNXQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight14.514944 g
- Country Of OriginMX
- Indication Yes
- Connection Integral QD
- Color Option 3 Yellow
- Environmental Rating IP65
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Housing Style Base Mount - Tower
- Animation Option 1 Solid On
- Number of Colors / Segments 4
- Color Option 1 Blue
- Product Size (mm) 30
- Color Option 2 Green
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Input Type Bimodal (PNP/NPN)
- Storage Temp (°C) -40 to 70
- IO Link No
- Power Source DC
- Lumens Color 1 2.0
- Color Option 4 Red
- NEMA Type and UL Type Rating UL 4X, 13
- Feature: Audible No
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Quick Disconnect Type M12 (Euro)
- Lumens Color 4 2.5
- Max Input Response Time (ms) 1
- Primary Housing Material Polycarbonate
- Number of Tower Light Segments 4
- Lumens Color 2 7.5
- Max Current Color (mA) 40
- Max Op. Temperature (°C) 50
- Power DC
- Mounting Thread M22 x 1.5
- Color 1 - Wavelength/Color Temp/Coordinates 470 nm
- Color 4 - Wavelength/Color Temp/Coordinates 625 nm
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 184.7
- Lumens Color 3 6.5
- Number of Input Pins/Conductors 5
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Quick Disconnect Yes
- Color 3 - Wavelength/Color Temp/Coordinates 592 nm
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
- Multi-Color Device Simultaneous Colors On
- Feature: Chemical Resistant No
- Primary Housing Color Black
- Feature: Hazardous Area No
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL30BBGYRXNXQD Description

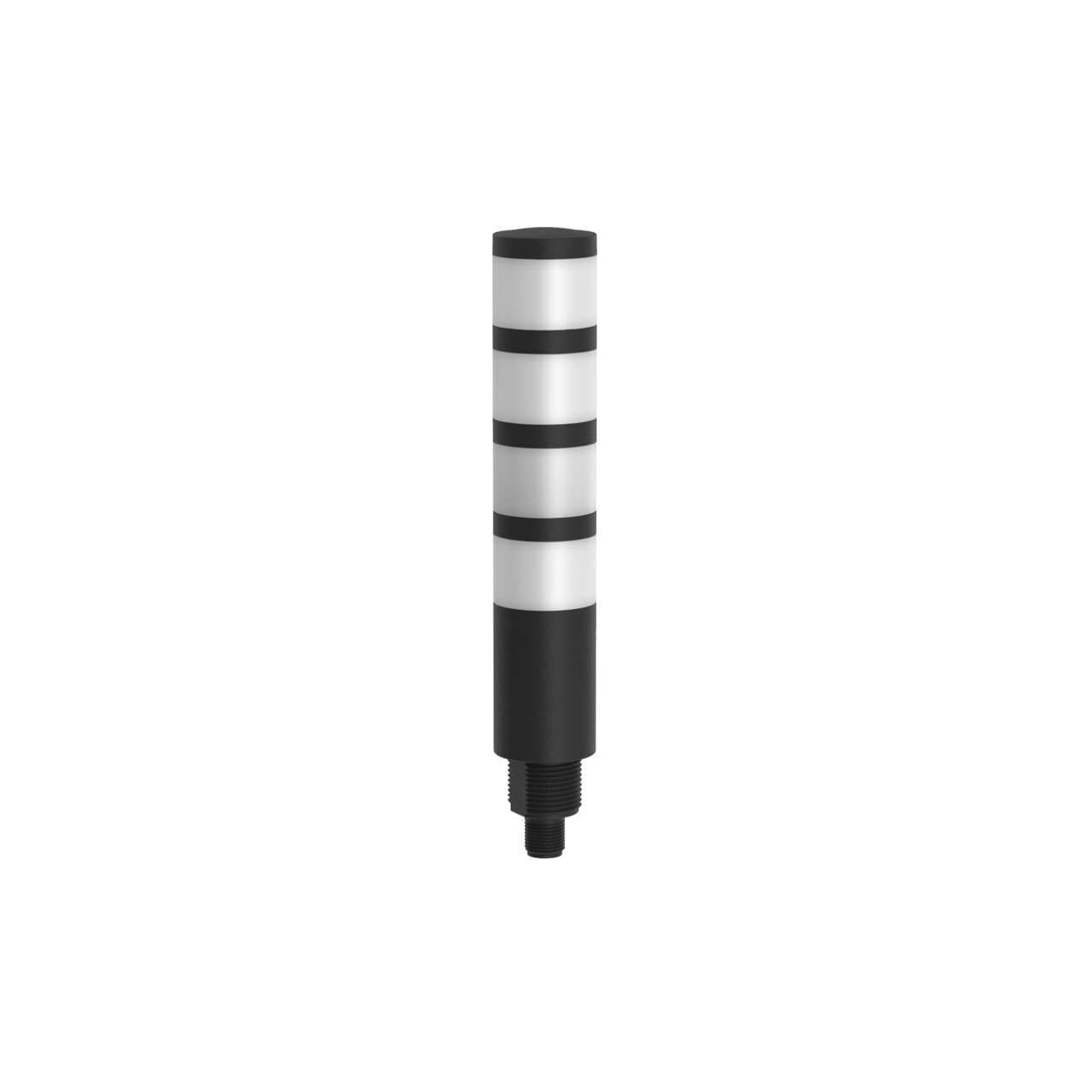

Banner Engineering TL30BBGYRXNXQD is a tower light from the Basic series, featuring a monolithic design with 4-tiers and a 4-color B+G+Y+R color pattern for LED illumination. This product is constructed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has a diameter of 30mm / 1-3/16" and comes pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. The housing is black, and it operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc being nominal. Designed for surface or base pole mounting with an M22 thread, it can operate in ambient air temperatures ranging from -40°C to +50°C. This tower light is rated IP65, UL type 4X, and UL type 13, indicating a high degree of protection. Its cylindrical shape is complemented by a current consumption of 40mA and it features 4 x digital inputs (12-30Vdc; NPN/PNP) for color control.
Related documents TL30BBGYRXNXQD Specs
