TL30BGYRXXAXQD Banner Signal Towers
Part#:TL30BGYRXXAXQD
Manufacturer:Banner
Alt. Part#:805415
Product Lifecycle:Active
Get a quick Quote!
TL30 Basic Tower Light; Black Housing: 3-Color Audible Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: Green Yellow Red; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL30BGYRXXAXQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight152.860504 g
- Country Of OriginMX
- Number of Colors / Segments 3
- Color Option 2 Yellow
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Power Source DC
- Connection Integral QD
- Color Technology Standard LED
- Lumens Color 3 2.5
- Max Audible Intensity (db at 1m) 90
- Feature: Chemical Resistant No
- Housing Style Base Mount - Tower
- Color Option 1 Green
- Color Option 3 Red
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 203.6
- NEMA Type and UL Type Rating UL 4X
- Indication Yes
- Lumens Color 1 7.5
- Max Current Color (mA) 40
- Max Input Response Time (ms) 1
- Feature: Quick Disconnect Yes
- Product Size (mm) 30
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Number of Input Pins/Conductors 5
- Environmental Rating IP65
- Primary Window Material Polycarbonate Diffused
- Power DC
- Quick Disconnect Type M12 (Euro)
- Audible Alarm Type Continuous
- Feature: Hazardous Area No
- Modbus RTU No
- Feature: Audible Yes
- Wireless No
- Mounting Thread M22 x 1.5
- Animation Option 1 Solid On
- Supply Voltage 12-30 V dc
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Primary Housing Color Black
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 2 - Wavelength/Color Temp/Coordinates 592 nm
- Audible Operating Frequency (kHz) 2.8
- Max Op. Temperature (°C) 50
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Number of Tower Light Segments 3
- Lumens Color 2 6.5
- Max Current - Audible Alarm (mA) 20
- Min Op. Temperature (°C) -40
- IO Link No
- Input Type Bimodal (PNP/NPN)
- Storage Temp (°C) -40 to 70
- Multi-Color Device Simultaneous Colors On
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL30BGYRXXAXQD Description

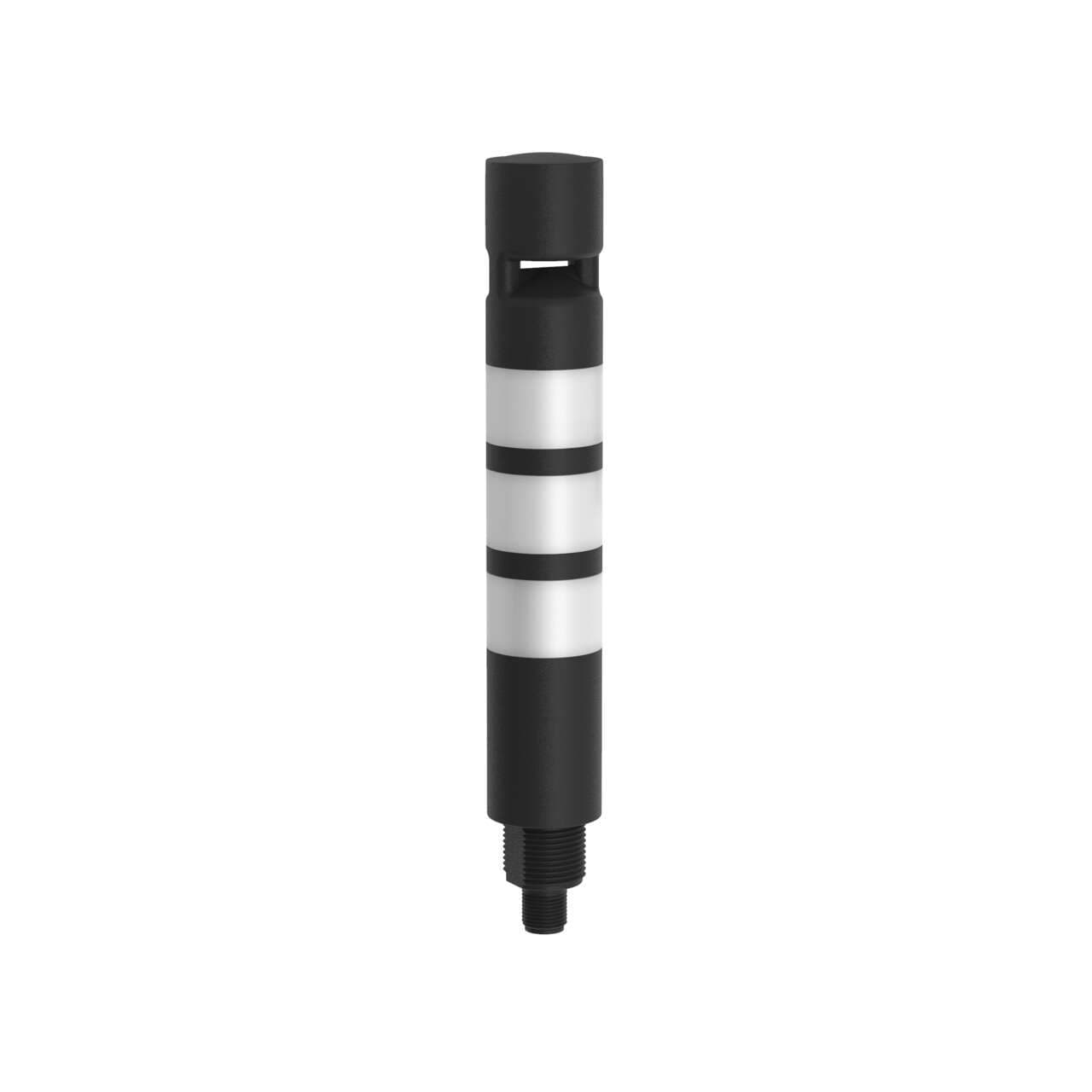

Banner Engineering TL30BGYRXXAXQD is a tower light from the Basic series, designed with a continuous sound 3-tiers 3-color G+Y+R (Green, Yellow, Red) color pattern LED illumination. This monolithic tower light functions as an audible tower/stack light, constructed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base. It features a 30mm / 1-3/16" diameter and is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. The housing color is black, and it operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). For mounting, it offers a surface/base pole M22 thread option. The ambient air temperature for operation ranges from -40°C to +50°C, and it is rated with a degree of protection of IP65 UL type 4X, ensuring durability in various environmental conditions. Its cylindrical shape is designed for easy integration, and it has a current consumption of 40mA. Additionally, it includes 3 x digital inputs (12-30Vdc; NPN/PNP) for color control and 1 x digital input (12-30Vdc; NPN/PNP) for alarm input.
