TL30BGYRBXAXC1 Banner Signal Towers
Part#:TL30BGYRBXAXC1
Manufacturer:Banner
Alt. Part#:807361
Product Lifecycle:Active
Get a quick Quote!
TL30 Basic Tower Light; Black Housing: 4-Color Audible Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: Green Yellow Red Blue; 1.2 m (4 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL30BGYRBXAXC1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight22.6796 g
- Country Of OriginMX
- Mounting Thread M22 x 1.5
- Power DC
- Indication Yes
- Animation Option 1 Solid On
- Audible Alarm Type Continuous
- Color 3 - Wavelength/Color Temp/Coordinates 620 nm
- Feature: Hazardous Area No
- Product Size (mm) 30
- Color Option 2 Yellow
- Color 4 - Wavelength/Color Temp/Coordinates 466 nm
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Min Op. Temperature (°C) -40
- IO Link No
- Color Technology Standard LED
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Color Option 3 Red
- Audible Operating Frequency (kHz) 2.8
- Feature: Audible Yes
- Wireless No
- Power Source DC
- Number of Tower Light Segments 5
- Color Option 4 Blue
- Max Input Response Time (ms) 1
- Storage Temp (°C) -40 to 70
- Primary Housing Material Polycarbonate
- Connection Cable
- Lumens Color 3 2.5
- Max Audible Intensity (db at 1m) 90
- NEMA Type and UL Type Rating UL 4X
- Multi-Color Device Simultaneous Colors On
- Number of Colors / Segments 4
- Lumens Color 1 7.5
- Input Type Bimodal (PNP/NPN)
- Max Op. Temperature (°C) 50
- Feature: Quick Disconnect No
- Housing Style Base Mount - Tower
- Color Option 1 Green
- Lumens Color 4 2.0
- Max Current Color (mA) 40
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 217.6
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Supply Voltage 12-30 V dc
- Color 2 - Wavelength/Color Temp/Coordinates 592 nm
- Environmental Rating IP65
- Feature: Chemical Resistant No
- Lumens Color 2 6.5
- Number of Input Pins/Conductors 7
- Max Current - Audible Alarm (mA) 20
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL30BGYRBXAXC1 Description

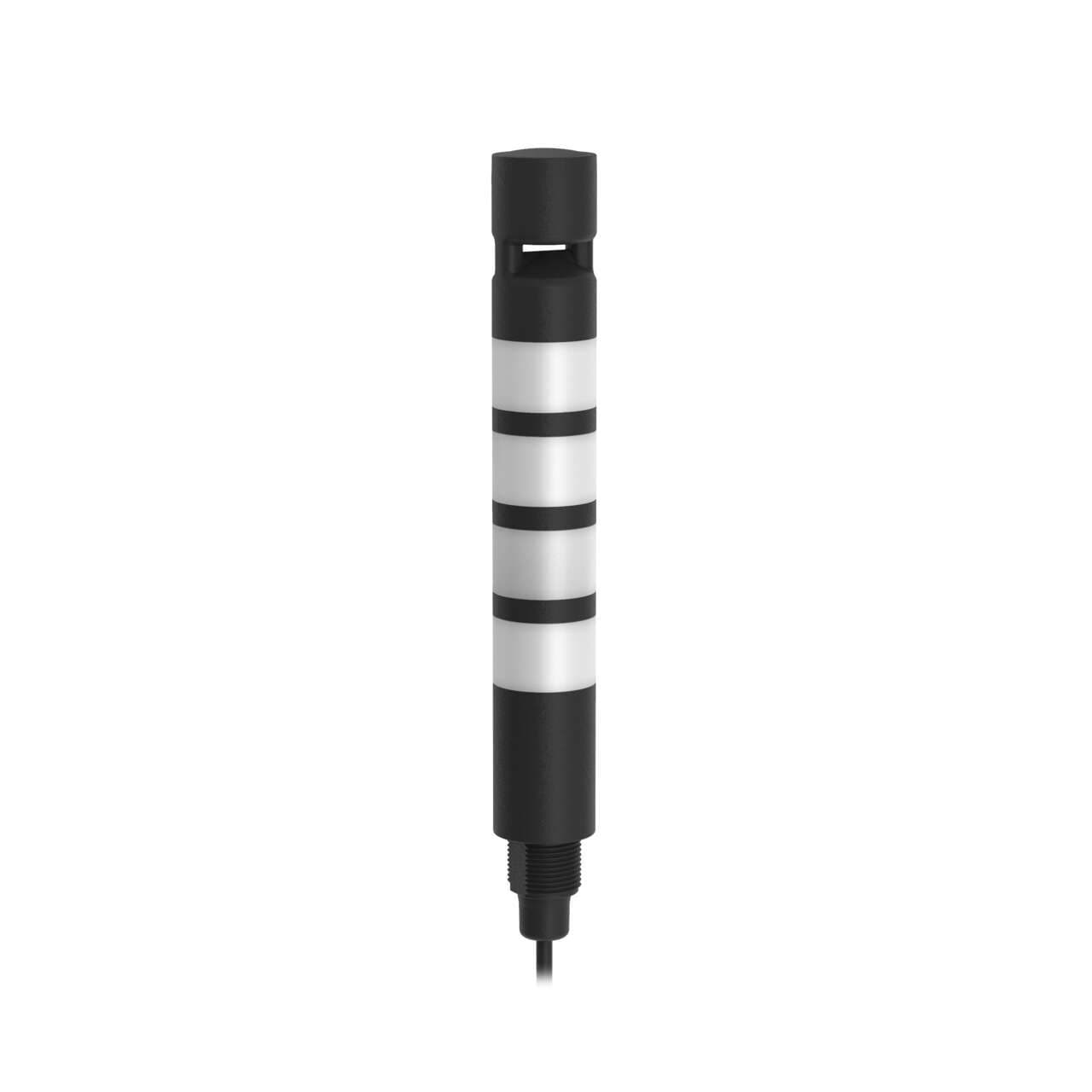

Banner Engineering TL30BGYRBXAXC1 is a tower light from the Basic series featuring a monolithic design with continuous sound and 4-tiers 4-color G+Y+R+B color pattern LED illumination. This audible tower/stack light has a polycarbonate (PC) base and segments, with a diameter of 30mm / 1-3/16" diam. It comes pre-wired with a 1.2m / 3.9ft. 7-wire cable terminated with bare end flying leads, and has a black housing. The supply voltage ranges from 12Vdc to 30Vdc (24Vdc nom.), and it supports surface or base pole mounting with an M22 thread. The ambient air temperature for operation spans from -40°C to +50 °C. This product is rated IP65 UL type 4X for protection, has a cylindrical shape, and a current consumption of 40mA. It includes 4 x digital inputs (12-30Vdc; NPN/PNP) for color control and 1 x digital input (12-30Vdc; NPN/PNP) for alarm input.
