TL30BGRXXXAXQD Banner Signal Towers
Part#:TL30BGRXXXAXQD
Manufacturer:Banner
Alt. Part#:805412
Product Lifecycle:Active
Get a quick Quote!
TL30 Basic Tower Light; Black Housing: 2-Color Audible Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: Green Red; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL30BGRXXXAXQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight127.00576 g
- Country Of OriginMX
- Housing Style Base Mount - Tower
- Color Technology Standard LED
- Product Size (mm) 30
- Quick Disconnect Type M12 (Euro)
- Number of Input Pins/Conductors 5
- Power Source DC
- Mounting Thread M22 x 1.5
- Connection Integral QD
- Supply Voltage 12-30 V dc
- Indication Yes
- Animation Option 1 Solid On
- Primary Housing Color Black
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- Number of Colors / Segments 2
- Color Option 2 Red
- Input Type Bimodal (PNP/NPN)
- Max Op. Temperature (°C) 50
- Power DC
- Number of Tower Light Segments 2
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Environmental Rating IP65
- Feature: Audible Yes
- Audible Operating Frequency (kHz) 2.8
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect Yes
- Pro-Editor Compatible (Discrete) No
- Max Current - Audible Alarm (mA) 20
- Feature: Hazardous Area No
- Audible Alarm Type Continuous
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 176.6
- Primary Window Material Polycarbonate Diffused
- Feature: Chemical Resistant No
- Lumens Color 1 7.5
- Max Current Color (mA) 40
- Max Input Response Time (ms) 1
- Storage Temp (°C) -40 to 70
- Wireless No
- NEMA Type and UL Type Rating UL 4X
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Multi-Color Device Simultaneous Colors On
- Lumens Color 2 2.5
- Max Audible Intensity (db at 1m) 90
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL30BGRXXXAXQD Description

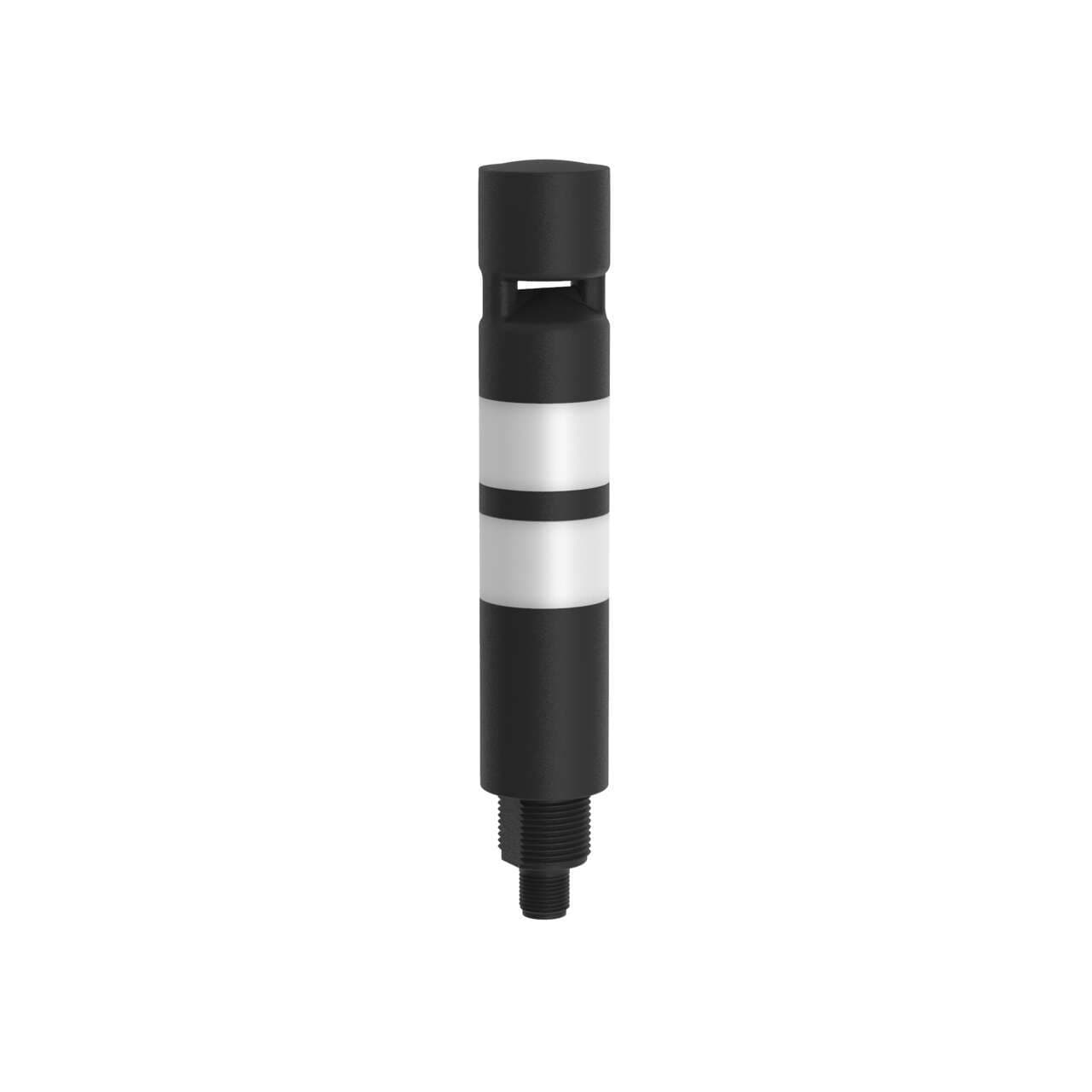

Banner Engineering TL30BGRXXXAXQD is a tower light from the Basic series, featuring a monolithic design with continuous sound, 2-tiers, and a 2-color G+R color pattern LED illumination. It functions as an audible tower or stack light. The part is constructed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has a diameter of 30mm / 1-3/16" and comes pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. The housing is black, and it operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). This model offers flexible mounting options, including surface or base pole with an M22 thread. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated at IP65 UL type 4X for protection against dust and water ingress. The shape of the light is cylindrical, and it has a current consumption of 40mA. For control, it includes 2 x digital inputs (12-30Vdc; NPN/PNP) for color control and 1 x digital input (12-30Vdc; NPN/PNP) for alarm input.
