TL30BBGYRXNXC1 Banner Signal Towers
Part#:TL30BBGYRXNXC1
Manufacturer:Banner
Alt. Part#:805377
Product Lifecycle:Active
Get a quick Quote!
TL30 Basic Tower Light; Black Housing: 4-Color Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: Blue Green Yellow Red; 1.2 m (4 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL30BBGYRXNXC1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight168.736224 g
- Country Of OriginMX
- Power DC
- Connection Cable
- Max Current Color (mA) 40
- Input Type Bimodal (PNP/NPN)
- Primary Housing Color Black
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- IO Link No
- Housing Style Base Mount - Tower
- Animation Option 1 Solid On
- Color 3 - Wavelength/Color Temp/Coordinates 592 nm
- Supply Voltage 12-30 V dc
- Feature: Hazardous Area No
- Indication Yes
- Color Technology Standard LED
- Lumens Color 1 2.0
- Color 4 - Wavelength/Color Temp/Coordinates 625 nm
- Storage Temp (°C) -40 to 70
- Feature: Quick Disconnect No
- Power Source DC
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Max Input Response Time (ms) 1
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Mounting Thread M22 x 1.5
- Number of Tower Light Segments 4
- Color Option 3 Yellow
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 171.7
- Feature: Audible No
- Number of Colors / Segments 4
- Lumens Color 2 7.5
- Color Option 4 Red
- NEMA Type and UL Type Rating UL 4X, 13
- Multi-Color Device Simultaneous Colors On
- Primary Housing Material Polycarbonate
- Color Option 1 Blue
- Lumens Color 3 6.5
- Environmental Rating IP65
- Feature: Chemical Resistant No
- Color Option 2 Green
- Number of Input Pins/Conductors 7
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Product Size (mm) 30
- Color 1 - Wavelength/Color Temp/Coordinates 470 nm
- Lumens Color 4 2.5
- Max Op. Temperature (°C) 50
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL30BBGYRXNXC1 Description

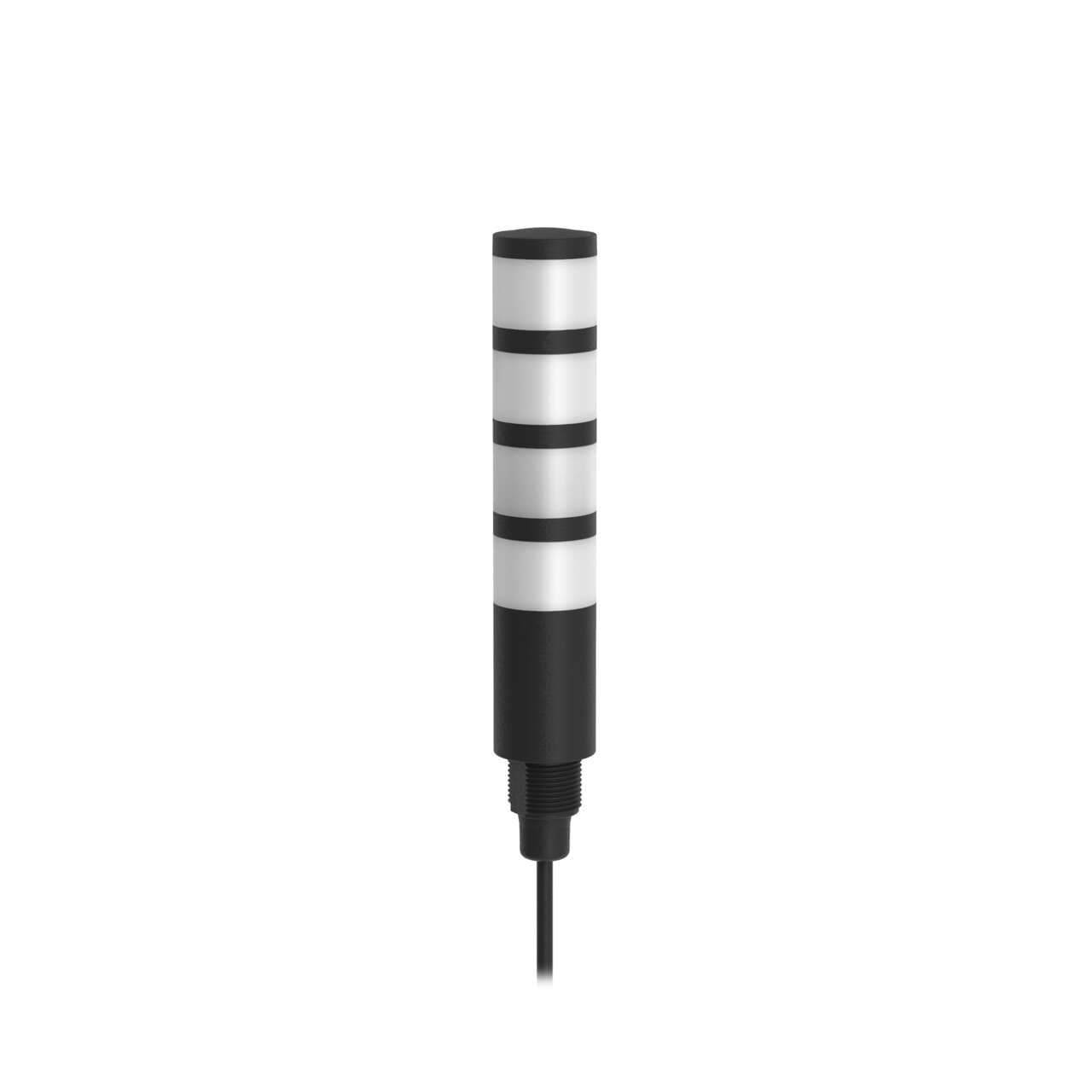

Banner Engineering TL30BBGYRXNXC1 is a monolithic tower light from the Basic series, featuring a 4-tier design with a 4-color B+G+Y+R LED illumination pattern. This part is constructed with a polycarbonate diffused window and base, ensuring durability and clear signal visibility. It has a 30mm / 1-3/16" diameter and comes pre-wired with a 1.2m / 3.9ft 7-wire cable terminated with bare end flying leads for easy installation. The housing is black, and it operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. Designed for surface or base pole mounting with an M22 thread, it can function in ambient air temperatures ranging from -40°C to +50°C. This tower light is rated IP65, UL type 4X, and UL type 13, indicating a high degree of protection against dust and water. Its cylindrical shape is complemented by a current consumption of 40mA and it features 4 x digital inputs (12-30Vdc; NPN/PNP) for color control.
Related documents TL30BBGYRXNXC1 Specs
