TL30BGYXXXNXQD Banner Signal Towers
Part#:TL30BGYXXXNXQD
Manufacturer:Banner
Alt. Part#:805381
Product Lifecycle:Active
Get a quick Quote!
TL30 Basic Tower Light; Black Housing: 2-Color Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: Green Yellow; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL30BGYXXXNXQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight104.779752 g
- Country Of OriginMX
- Housing Style Base Mount - Tower
- Power Source DC
- Color 2 - Wavelength/Color Temp/Coordinates 592 nm
- Supply Voltage 12-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 130.7
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Environmental Rating IP65
- Multi-Color Device Simultaneous Colors On
- Indication Yes
- Color Option 1 Green
- Quick Disconnect Type M12 (Euro)
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Primary Housing Material Polycarbonate
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- NEMA Type and UL Type Rating UL 4X, 13
- Wireless No
- Number of Colors / Segments 2
- Lumens Color 2 6.5
- Number of Input Pins/Conductors 5
- Storage Temp (°C) -40 to 70
- IO Link No
- Color Technology Standard LED
- Color Option 2 Yellow
- Max Current Color (mA) 40
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Input Type Bimodal (PNP/NPN)
- Feature: Quick Disconnect Yes
- Product Size (mm) 30
- Connection Integral QD
- Lumens Color 1 7.5
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Chemical Resistant No
- Power DC
- Mounting Thread M22 x 1.5
- Number of Tower Light Segments 2
- Max Input Response Time (ms) 1
- Feature: Hazardous Area No
- Primary Housing Color Black
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL30BGYXXXNXQD Description

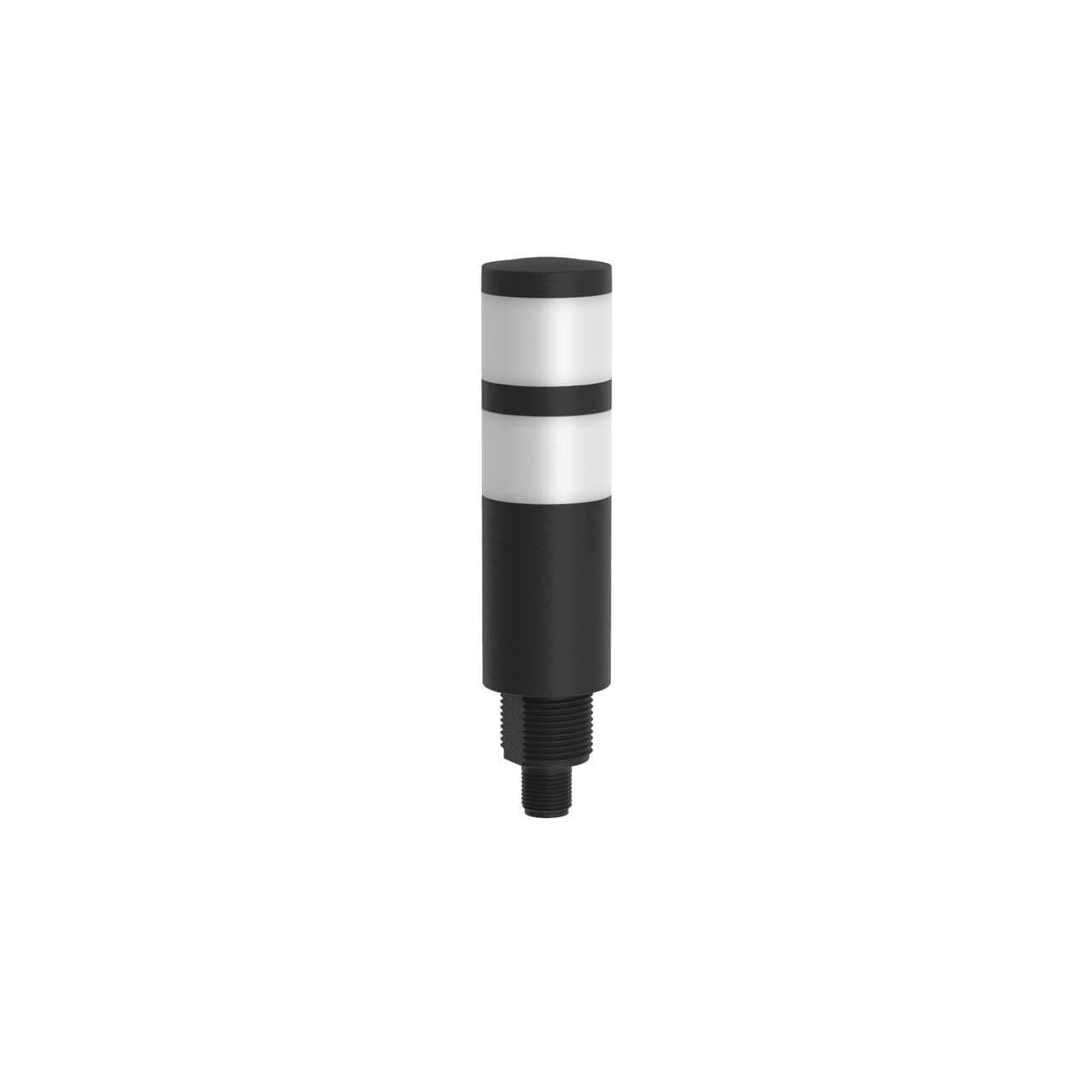

Banner Engineering TL30BGYXXXNXQD is a tower light from the Basic series, designed with a 2-tiers 2-color G+Y color pattern LED illumination. This monolithic tower light features a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has a diameter of 30mm / 1-3/16" and is pre-equipped with a 5-pin M12 Euro-style QD connector for easy connection. The housing is black, and it operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). It offers versatile mounting options, including surface or base pole with an M22 thread. The TL30BGYXXXNXQD can operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP65, UL type 4X, and UL type 13, making it suitable for various environments. Its cylindrical shape is complemented by a current consumption of 40mA and it supports 2 x digital inputs (12-30Vdc; NPN/PNP) for color control.
Related documents TL30BGYXXXNXQD Specs
