TL30BGRXXXNXQD Banner Signal Towers
Part#:TL30BGRXXXNXQD
Manufacturer:Banner
Alt. Part#:805380
Product Lifecycle:Active
Get a quick Quote!
TL30 Basic Tower Light; Black Housing: 2-Color Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: Green Red; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL30BGRXXXNXQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight104.779752 g
- Country Of OriginMX
- Product Size (mm) 30
- Color Option 2 Red
- Input Type Bimodal (PNP/NPN)
- Min Op. Temperature (°C) -40
- Wireless No
- Power Source DC
- Connection Integral QD
- Max Current Color (mA) 40
- NEMA Type and UL Type Rating UL 4X, 13
- Modbus RTU No
- Indication Yes
- Animation Option 1 Solid On
- Lumens Color 2 2.5
- Power DC
- Color Technology Standard LED
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Primary Window Material Polycarbonate Diffused
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Tower Light Segments 2
- Supply Voltage 12-30 V dc
- Environmental Rating IP65
- Feature: Audible No
- Housing Style Base Mount - Tower
- Number of Input Pins/Conductors 5
- Color Option 1 Green
- Multi-Color Device Simultaneous Colors On
- Max Op. Temperature (°C) 50
- Mounting Thread M22 x 1.5
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 130.7
- Lumens Color 1 7.5
- Feature: Hazardous Area No
- Number of Colors / Segments 2
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Storage Temp (°C) -40 to 70
- Quick Disconnect Type M12 (Euro)
- Primary Housing Material Polycarbonate
- Max Input Response Time (ms) 1
- Feature: Quick Disconnect Yes
- Feature: Chemical Resistant No
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Pro-Editor Compatible (Discrete) No
- Primary Housing Color Black
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL30BGRXXXNXQD Description

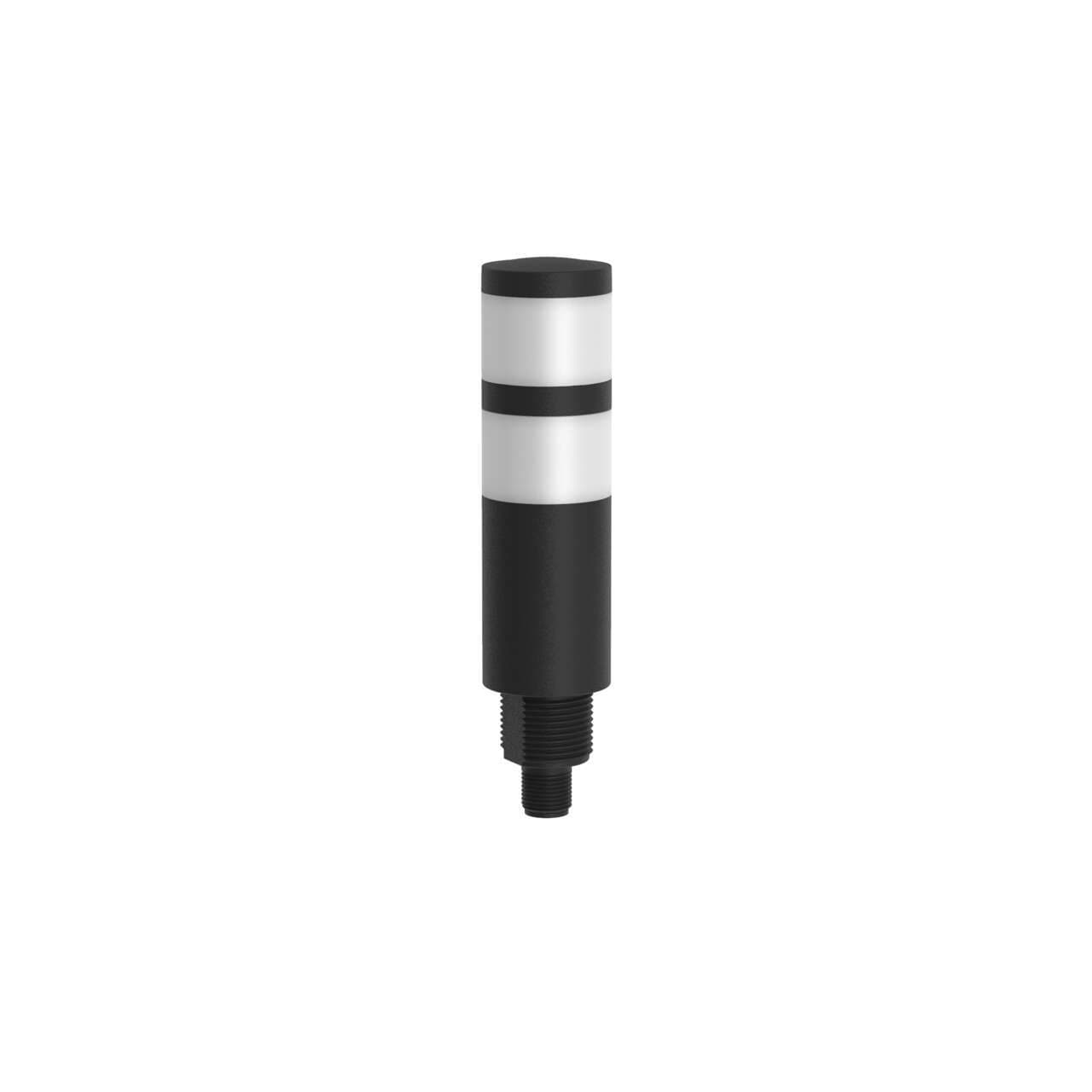

Banner Engineering TL30BGRXXXNXQD is a tower light from the Basic series, designed with a 2-tiers 2-color G+R color pattern LED illumination. This monolithic tower light features a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has a diameter of 30mm / 1-3/16" and is pre-equipped with a 5-pin M12 Euro-style QD connector for easy connection. The housing is black, and it operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). It offers versatile mounting options, including surface or base pole with an M22 thread. The TL30BGRXXXNXQD is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP65, UL type 4X, and UL type 13, making it suitable for various environments. Its cylindrical shape is complemented by a current consumption of 40mA and it supports 2 x digital inputs (12-30Vdc; NPN/PNP) for color control.
