TL30BGYRXXNXC1 Banner Signal Towers
Part#:TL30BGYRXXNXC1
Manufacturer:Banner
Alt. Part#:805375
Product Lifecycle:Active
Get a quick Quote!
TL30 Basic Tower Light; Black Housing: 3-Color Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: Green Yellow Red; 1.2 m (4 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL30BGYRXXNXC1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight144.242256 g
- Country Of OriginMX
- Power Source DC
- Connection Cable
- Color 2 - Wavelength/Color Temp/Coordinates 592 nm
- NEMA Type and UL Type Rating UL 4X, 13
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
- Wireless No
- Indication Yes
- Number of Tower Light Segments 3
- Max Current Color (mA) 40
- IO Link No
- Product Size (mm) 30
- Animation Option 1 Solid On
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 144.7
- Primary Window Material Polycarbonate Diffused
- Number of Colors / Segments 3
- Lumens Color 2 6.5
- Max Input Response Time (ms) 1
- Feature: Hazardous Area No
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Number of Input Pins/Conductors 5
- Primary Housing Color Black
- Power DC
- Lumens Color 1 7.5
- Lumens Color 3 2.5
- Max Op. Temperature (°C) 50
- Housing Style Base Mount - Tower
- Color Option 1 Green
- Color Option 3 Red
- Environmental Rating IP65
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Mounting Thread M22 x 1.5
- Color Option 2 Yellow
- Input Type Bimodal (PNP/NPN)
- Storage Temp (°C) -40 to 70
- Multi-Color Device Simultaneous Colors On
- Feature: Chemical Resistant No
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Quick Disconnect No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL30BGYRXXNXC1 Description

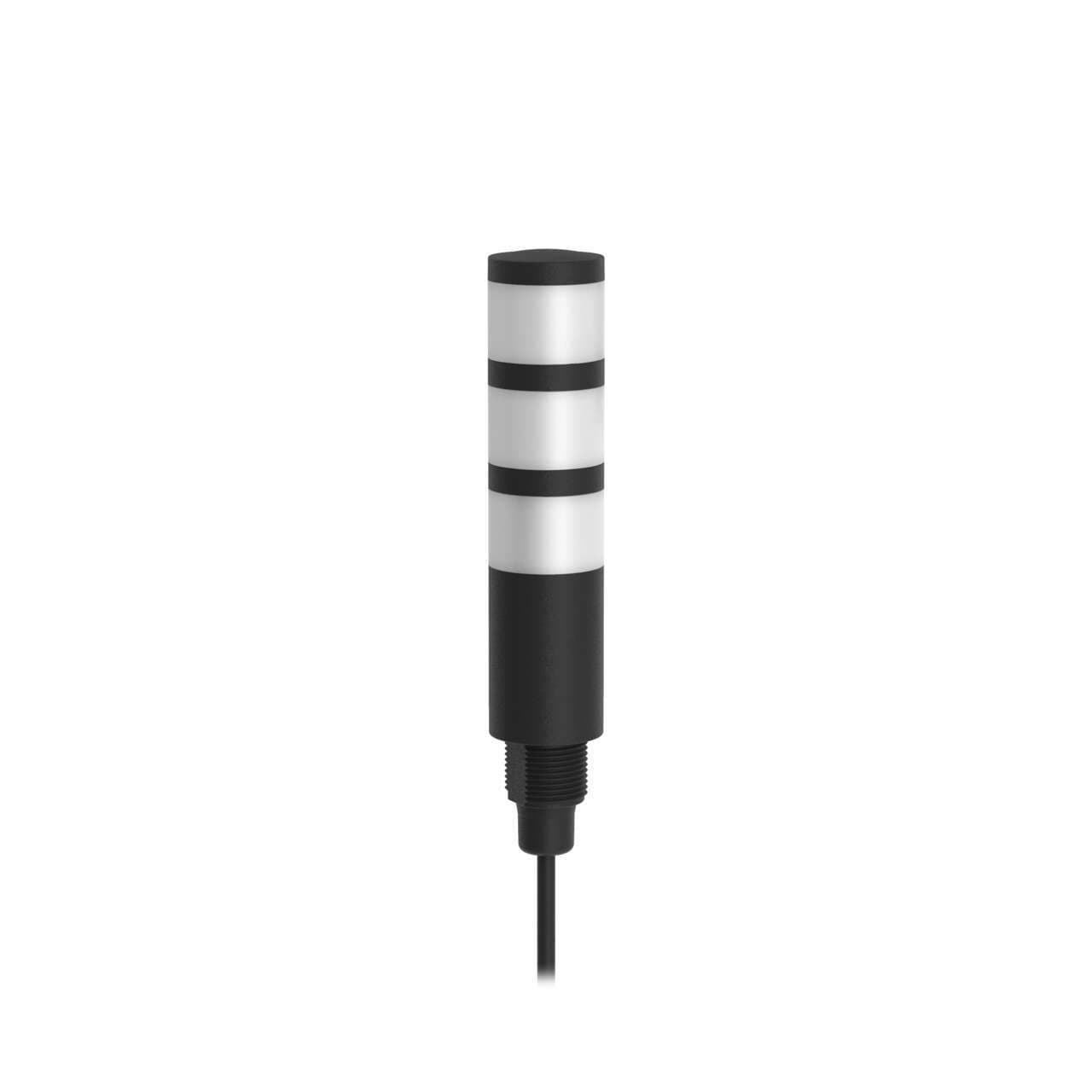

Banner Engineering TL30BGYRXXNXC1 is a tower light from the Basic series, featuring a monolithic design with 3-tiers and a 3-color G+Y+R (Green, Yellow, Red) LED illumination pattern. This part is constructed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has a diameter of 30mm / 1-3/16" and comes pre-wired with a 1.2m / 3.9ft. 5-wire cable terminated with bare end flying leads for easy installation. The housing is black, and it operates on a supply voltage of 12Vdc-30Vdc (24Vdc nominal). Designed for surface or base pole mounting with an M22 thread, it can operate in ambient air temperatures ranging from -40°C to +50°C. This tower light is rated IP65, UL type 4X, and UL type 13, indicating a high degree of protection. Its cylindrical shape is complemented by a current consumption of 40mA and it features 3 x digital inputs (12-30Vdc; NPN/PNP) for color control.
Related documents TL30BGYRXXNXC1 Specs
