TL30BGRXXXNXC1 Banner Signal Towers
Part#:TL30BGRXXXNXC1
Manufacturer:Banner
Alt. Part#:805372
Product Lifecycle:Active
Get a quick Quote!
TL30 Basic Tower Light; Black Housing: 2-Color Indicator; Voltage: 12-30 V dc; Environ. Rating: IP65; Input: Bimodal; Colors: Green Red; 1.2 m (4 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL30BGRXXXNXC1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight132.902456 g
- Country Of OriginMX
- Lumens Color 2 2.5
- Mounting Thread M22 x 1.5
- Housing Style Base Mount - Tower
- Input Type Bimodal (PNP/NPN)
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Power DC
- Color Option 1 Green
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Chemical Resistant No
- Wireless No
- Primary Housing Material Polycarbonate
- Connection Cable
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 117.7
- Primary Housing Color Black
- IO Link No
- Power Source DC
- Number of Tower Light Segments 2
- Supply Voltage 12-30 V dc
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Number of Colors / Segments 2
- Color Option 2 Red
- Max Input Response Time (ms) 1
- Feature: Hazardous Area No
- Product Size (mm) 30
- Color Technology Standard LED
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- NEMA Type and UL Type Rating UL 4X, 13
- Min Op. Temperature (°C) -40
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 5
- Environmental Rating IP65
- Feature: Audible No
- Feature: Quick Disconnect No
- Indication Yes
- Lumens Color 1 7.5
- Max Current Color (mA) 40
- Max Op. Temperature (°C) 50
- Multi-Color Device Simultaneous Colors On
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL30BGRXXXNXC1 Description

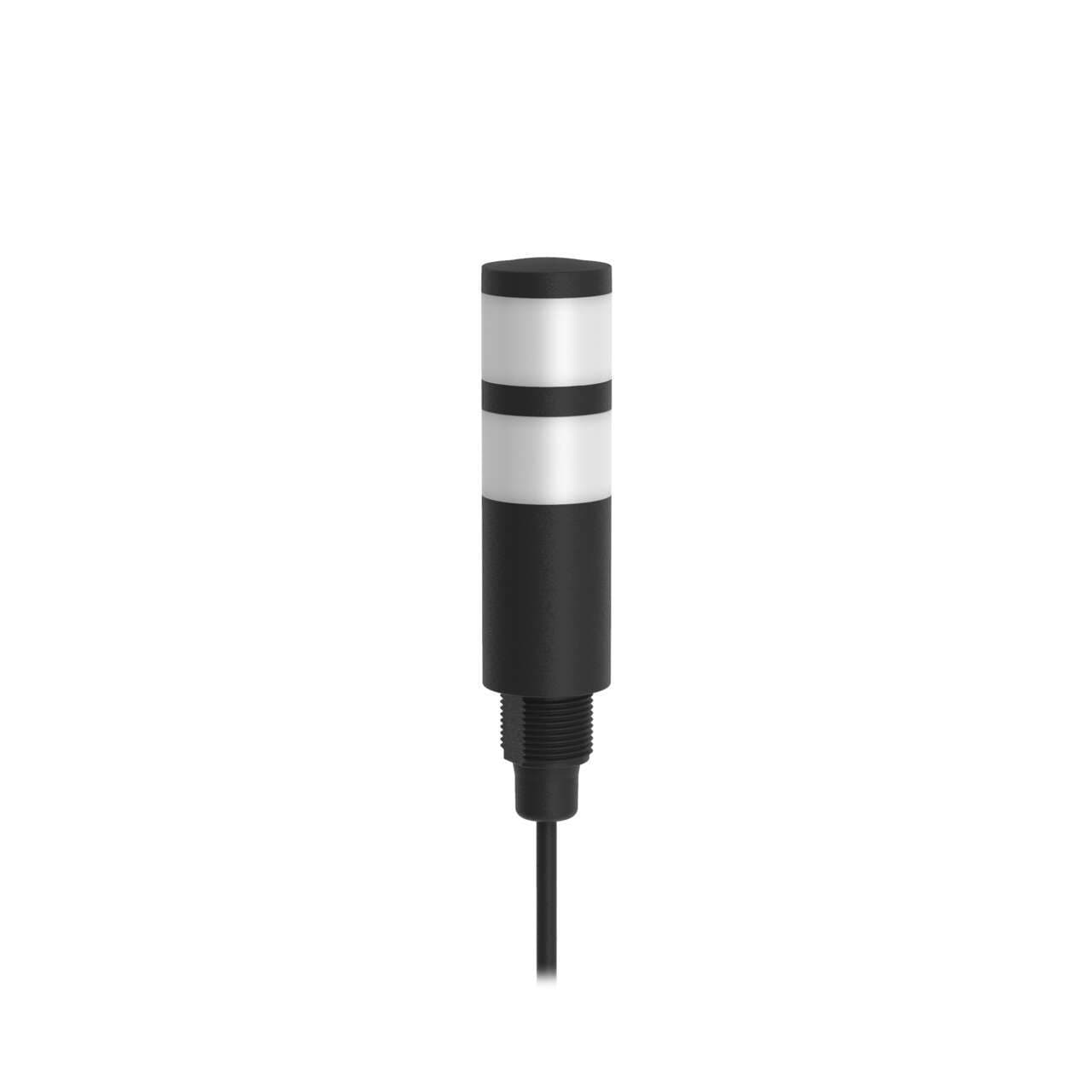

Banner Engineering TL30BGRXXXNXC1 is a monolithic tower light from the Basic series, featuring a 2-tiers 2-color G+R color pattern LED illumination. This tower or stack light is constructed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has a diameter of 30mm / 1-3/16" and comes pre-wired with a 1.2m / 3.9ft. 5-wire cable terminated with bare end flying leads for easy installation. The housing is black, and it operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). Designed for surface or base pole mounting with an M22 thread, it can function in ambient air temperatures ranging from -40°C to +50°C. This product is rated IP65, UL type 4X, and UL type 13, indicating a high degree of protection. Its cylindrical shape is complemented by a current consumption of 40mA and it features 2 x digital inputs (12-30Vdc; NPN/PNP) for color control.
