SM31RQD Banner Proximity Sensors
Part#:SM31RQD
Manufacturer:Banner
Alt. Part#:26839
Product Lifecycle:Active
Get a quick Quote!

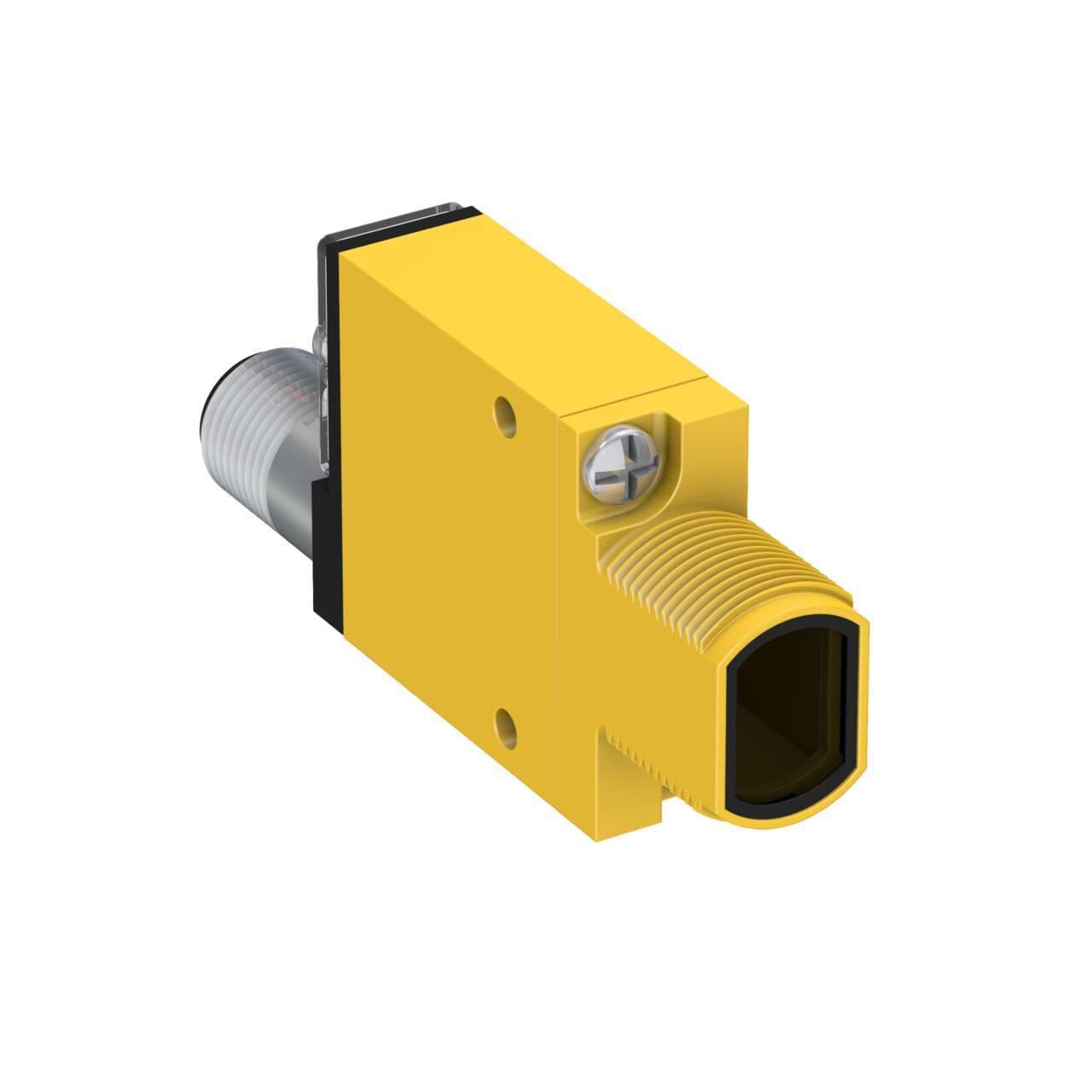

MINI-BEAM: Receiver; Range: 3 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM31RQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight60.327736 g
- Country Of OriginUS
- Sub-range name SM312
- Light Color Infrared (IR)
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Main function Sensor (Photo-electric)
- Functions Photo-electric sensor receiver red LED (power ON) potentiometer adjustment
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Ambient air temperature for operation -20...+70 °C
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Mounting mode Threaded mount
- Product series / family name MINI-BEAM series
- Design through-beam system / opposed mode
- Sensing distance 3m
- Response time 1ms / 0.001 s
- Primary brand Banner Engineering
- Thread size M18
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Compliant with standard(s) cURus CSA CE
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Order code / Manufacturer SKU 26839
- Sensing Mode (General) Opposed
- Connection Integral QD
- Repeatability (µs) 140
- DeviceNet No
- Primary Housing Material Thermoplastic
- Output response time (ms) 1
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Receiver
- Sensing Beam Infrared LED
- Special Feature: Intrinsically Safe No
- Adjustments Potentiometer
- Feature: Encapsulated Yes
- Max Sensing Distance (mm) 3000
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Indicator LEDs
- Input/Output Discrete
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- IO Link No
- Power DC
- Outputs Bipolar (NPN & PNP)
- Operation Light/Dark Operate
- Lens Material Acrylic
- Feature: Audible No
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Housing Style Rectangular w/M18 Mount
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Feature: Hazardous Area No
- Opposed Mode Emitter/Receiver Receiver
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM31RQD Description
Banner Engineering SM31RQD is a photo-electric sensor from the SM312 series, designed with a through-beam system and opposed mode potentiometer adjustment. This sensor functions as a receiver alone, housed in a thermoplastic material with an acrylic lens. It is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The SM31RQD operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It features an M18 threaded mount for installation and can operate within an ambient air temperature range of -20 to +70°C. This sensor is protected to a degree of IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, and 12, ensuring its durability in various environmental conditions. The rectangular-shaped sensor offers 1 x digital output (PNP/NPN transistor), has a sensing distance of 3m, and utilizes infrared (IR) light. It boasts a rapid response time of 1ms / 0.001 s and supports both Light-ON and Dark-ON operating modes.
Related documents SM31RQD Specs
