SM312FQD Banner Proximity Sensors

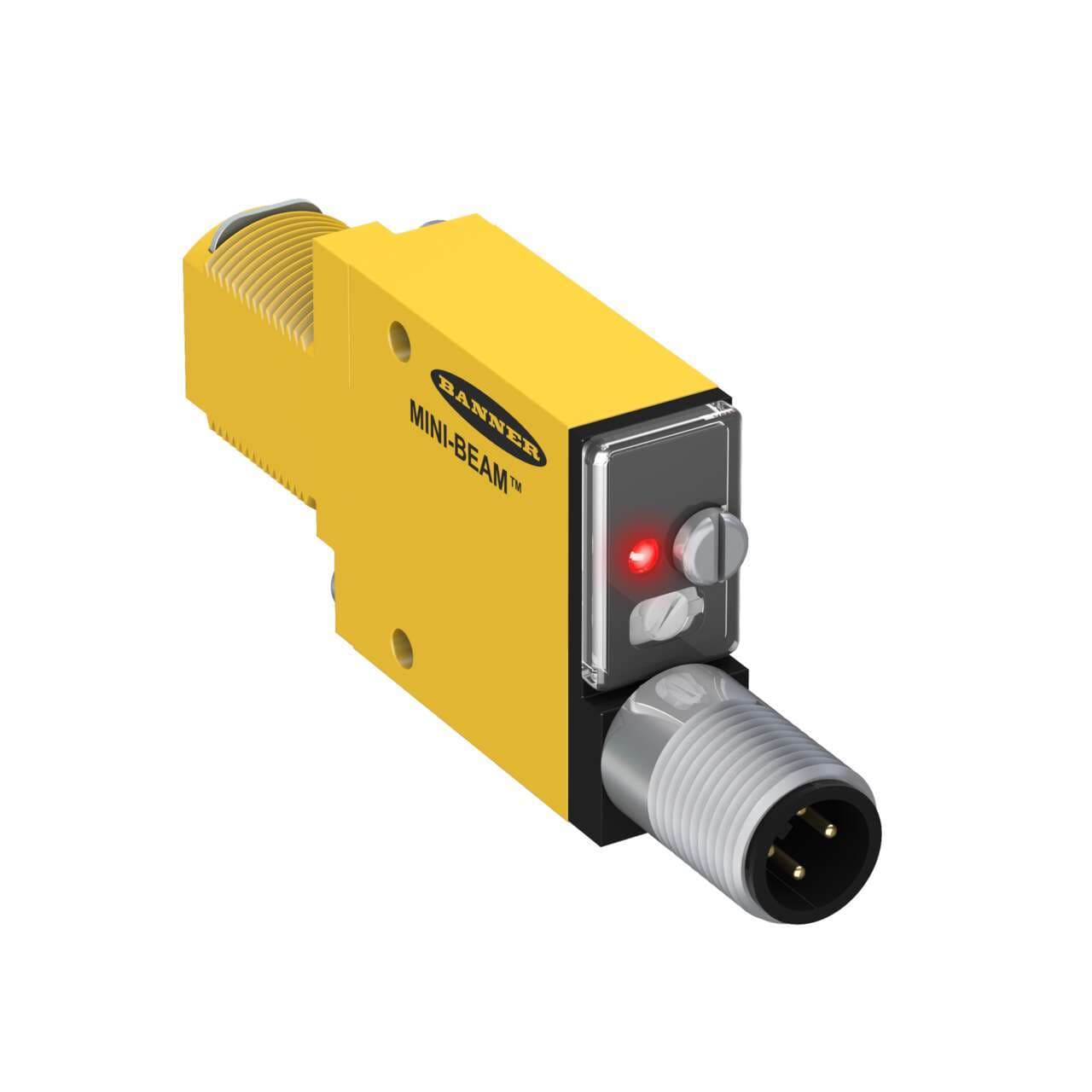

Banner SM312FQD MINI-BEAM: Infrared 880 nm Glass Fiber Optic; Range: Depends on Fiber; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
Banner

Part#:SM312FQD

Manufacturer:Banner

Alt. Part#:26836

Product Lifecycle:Active

Get a quick Quote!

MINI-BEAM: Infrared 880 nm Glass Fiber Optic; Range: Depends on Fiber; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SM312FQD Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight62.142104 g
  • Country Of OriginUS
  • Product series / family name
    MINI-BEAM series
  • Wavelength
    880 nm
  • Operating mode
    Light-ON Dark-ON
  • Material
    thermoplastic housing Glass fiber
  • Technical compatibility with
    glass fiber
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Degree of protection
    IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
  • Order code / Manufacturer SKU
    26836
  • Sub-range name
    SM312
  • Mounting mode
    Threaded mount
  • Compliant with standard(s)
    cURus CSA CE
  • Primary brand
    Banner Engineering
  • Functions
    Photo-electric fiber optic sensor red LED (power ON) yellow LED (output state) potentiometer adjustment
  • Thread size
    M18
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Ambient air temperature for operation
    -20...+70 °C
  • Main function
    Sensor (Photo-electric)
  • Light Color
    Infrared (IR)
  • Shape
    Rectangular
  • Quick Disconnect Type
    M12 (Euro)
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Minimum response time (ms)
    1
  • Color LED - Amplifiers
    Infrared
  • Output Type (Specific)
    Single Discrete
  • Special Feature: Bussable Power
    No
  • Repeatability (µs)
    300
  • Power Supply/Supply Voltage
    10-30 V dc
  • Housing Material
    Thermoplastic
  • Primary Housing Material
    Thermoplastic
  • Max Op. Temperature (°C)
    70
  • Output
    Bipolar (NPN & PNP)
  • Housing Style
    Rectangular w/M18 Mount
  • Adjustments
    Potentiometer
  • Feature: Timing (Hold/Delay)
    No
  • Power
    DC
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
  • Special Feature: Remote Teach
    No
  • IO Link
    No
  • Fiber Type
    Glass Only
  • Number of Pins
    4
  • Feature: Hazardous Area
    No
  • Input/Output
    Discrete
  • IP Rating
    IP67
  • Delay at Power-up (ms)
    100
  • Feature: Audible
    No
  • Connection
    Integral QD
  • Intrinsically Safe
    No
  • Min Op. Temperature (°C)
    -20
  • Indicator Display Type
    Indicator LEDs

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging


SM312FQD Description

Banner Engineering SM312FQD is a photo-electric fiber optic sensor within the SM312 series, featuring a potentiometer adjustment for glass fiber. This sensor is housed in thermoplastic with glass fiber material and comes pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Designed for M18 threaded mount installation, it can function within an ambient air temperature range of -20 to +70°C. The SM312FQD offers a high degree of protection, rated at IP67 and compliant with multiple NEMA standards including 1, 2, 3, 3S, 4, 4X, 6, and 12. Its rectangular shape incorporates 1 x digital output (PNP/NPN transistor), operates with infrared light at a wavelength of 880 nm, and has a rapid response time of 1ms / 0.001 s. The operating modes include Light-ON and Dark-ON options.
