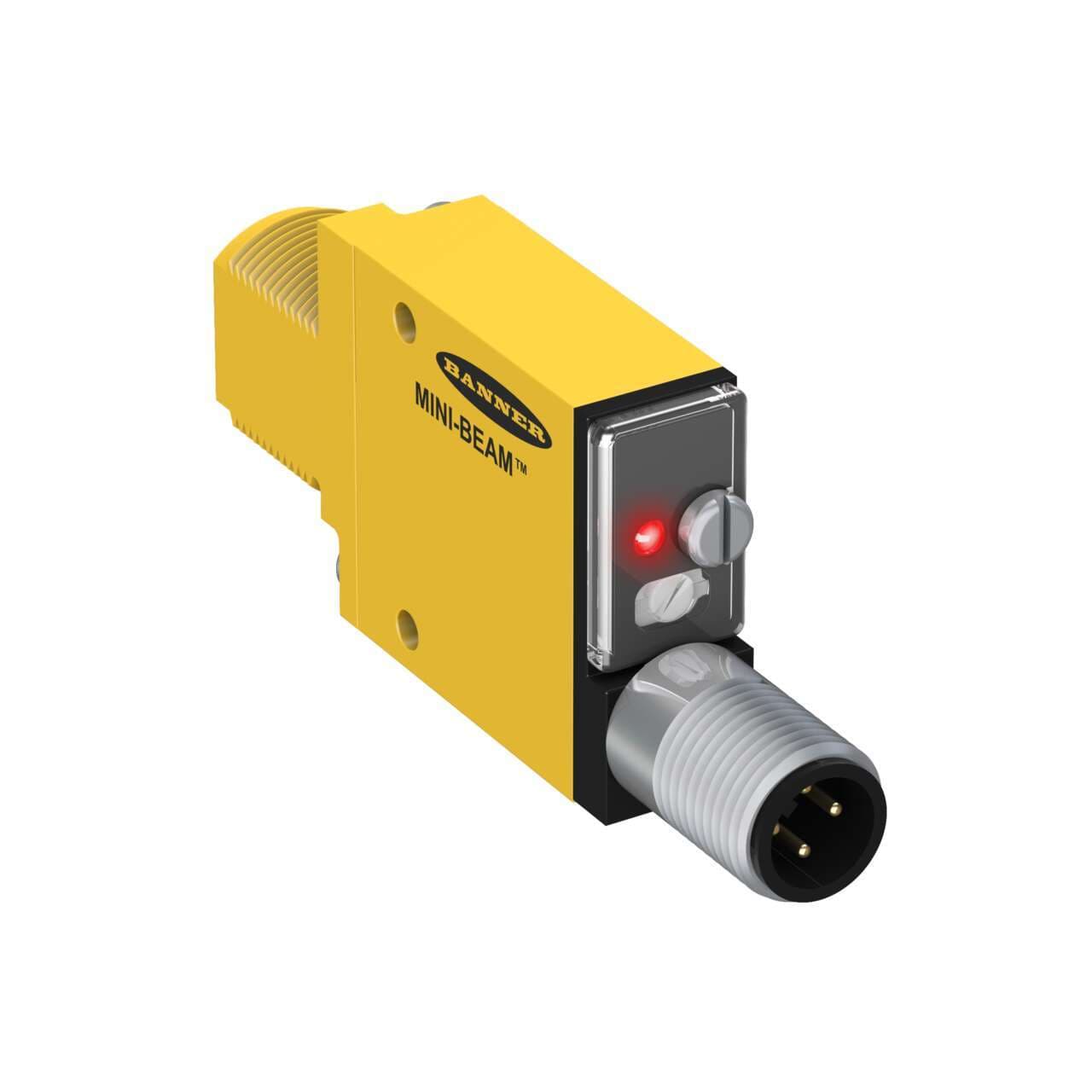

SM312LVQD Banner Proximity Sensors
Part#:SM312LVQD
Manufacturer:Banner
Alt. Part#:26838
Product Lifecycle:Active
Get a quick Quote!
MINI-BEAM: Retro; Range: 5 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM312LVQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight60.781328 g
- Country Of OriginUS
- Product series / family name MINI-BEAM series
- Sensing distance 5m
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Primary brand Banner Engineering
- Functions Photo-electric sensor red LED (power ON) potentiometer adjustment
- Shape Rectangular
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M18
- Response time 1ms / 0.001 s
- Compliant with standard(s) cURus CSA CE
- Main function Sensor (Photo-electric)
- Design retro-reflective mode
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Order code / Manufacturer SKU 26838
- Sub-range name SM312
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -20...+70 °C
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Power DC
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
- Sensing Mode (General) Retroreflective
- Quick Disconnect Type M12 (Euro)
- Sensing Beam Wavelength 650
- Barrel Diameter (mm) 18
- Sensing Mode (Detailed) Non-Polarized
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Adjustments Potentiometer
- IO Link No
- Housing Style Rectangular w/M18 Mount
- Special Feature: Water Detection No
- Repeatability (µs) 300
- Feature: Timing (Hold/Delay) No
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- Number of Pins 4
- Feature: Encapsulated Yes
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Indicator LEDs
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 5000
- Output response time (ms) 1
- Lens Material Acrylic
- Feature: Audible No
- Outputs Bipolar (NPN & PNP)
- Special Feature: Remote Teach No
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- DeviceNet No
- Connection Integral QD
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM312LVQD Description
Banner Engineering SM312LVQD is a photo-electric sensor from the SM312 series designed in a retro-reflective mode with potentiometer adjustment. This sensor features a thermoplastic housing and an acrylic lens. It comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The SM312LVQD operates on a supply voltage range of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C. This sensor offers a high degree of protection with ratings of IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12, ensuring durability in various environmental conditions. The rectangular-shaped sensor provides 1 x digital output (PNP/NPN transistor), has a sensing distance of 5m, utilizes visible red light, and boasts a rapid response time of 1ms / 0.001 s. It supports both Light-ON and Dark-ON operating modes.
Related documents SM312LVQD Specs
