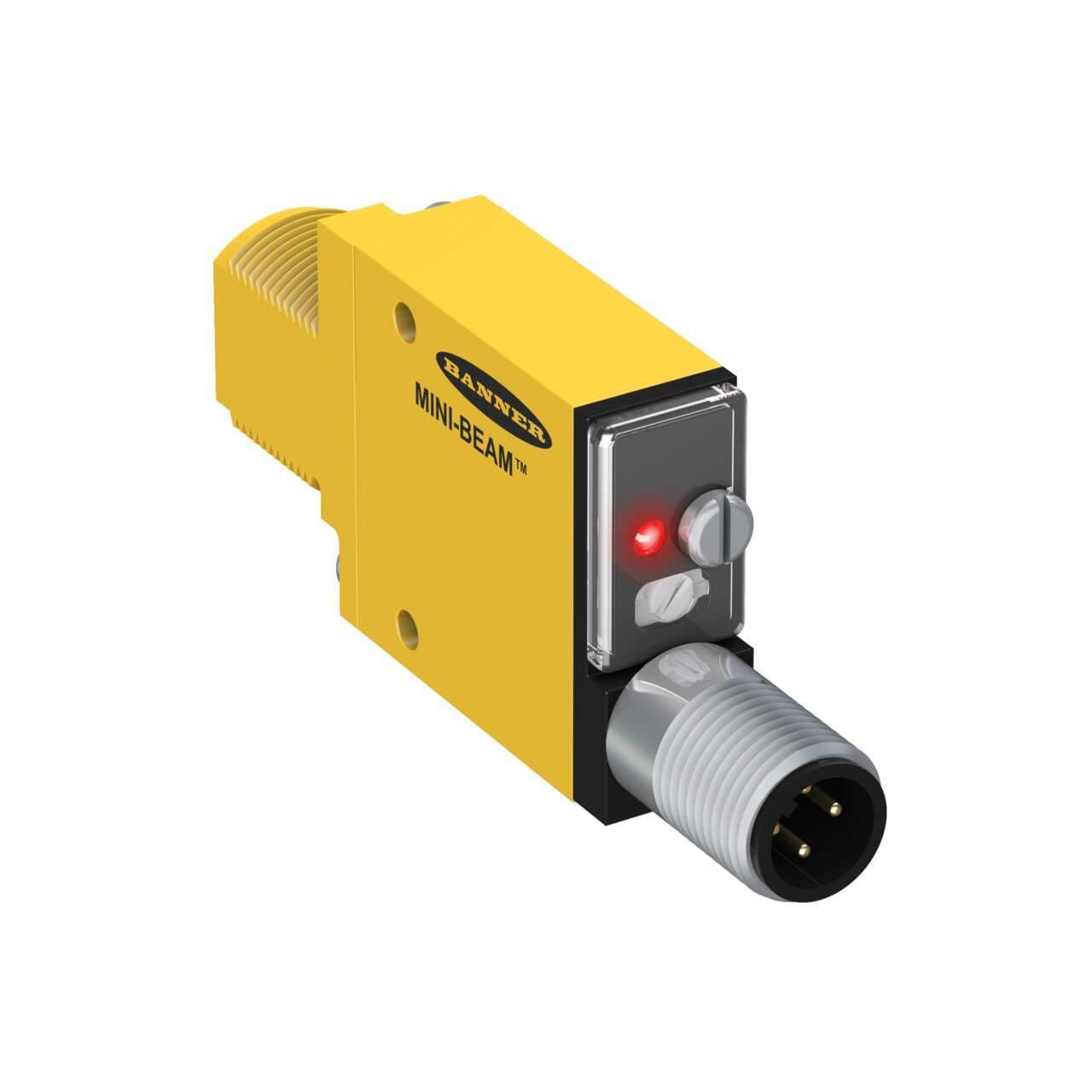

SM312DQD Banner Proximity Sensors
Part#:SM312DQD
Manufacturer:Banner
Alt. Part#:26834
Product Lifecycle:Active
Get a quick Quote!
MINI-BEAM: Diffuse; Range: 380 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM312DQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight61.23492 g
- Country Of OriginUS
- Main function Sensor (Photo-electric)
- Sub-range name SM312
- Sensing distance 380mm
- Mounting mode Threaded mount
- Ambient air temperature for operation -20...+70 °C
- Product series / family name MINI-BEAM series
- Thread size M18
- Operating mode Light-ON Dark-ON
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Material thermoplastic housing Acrylic lns.
- Primary brand Banner Engineering
- Design diffuse mode
- Light Color Infrared (IR)
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Compliant with standard(s) cURus CSA CE
- Functions Photo-electric sensor red LED (power ON) potentiometer adjustment
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Response time 1ms / 0.001 s
- Order code / Manufacturer SKU 26834
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Lens Material Acrylic
- Power DC
- Quick Disconnect Type M12 (Euro)
- Number of Pins 4
- Indicator LEDs
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Sensing Beam Infrared LED
- Connection Integral QD
- Repeatability (µs) 300
- Barrel Diameter (mm) 18
- Max Sensing Distance (mm) 380
- Delay at Power-up (ms) 100
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
- Sensing Mode (Detailed) Diffuse
- Operation Light/Dark Operate
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Primary Housing Material Thermoplastic
- Output response time (ms) 1
- Feature: Hazardous Area No
- Outputs Bipolar (NPN & PNP)
- Special Feature: Remote Teach No
- DeviceNet No
- Opposed Mode Emitter/Receiver N/A
- Feature: Audible No
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM312DQD Description
Banner Engineering SM312DQD is a photo-electric sensor from the SM312 series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc and 24Vdc as nominal values, and can be mounted using an M18 threaded mount. The ambient air temperature for operation ranges from -20 to +70°C. It offers a high degree of protection, rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12, making it suitable for a wide range of environments. The sensor has a rectangular shape and includes 1 x digital output (PNP/NPN transistor). It provides a sensing distance of 380mm and uses infrared (IR) light, with a response time of 1ms / 0.001 s. The operating modes available are Light-ON and Dark-ON.
Related documents SM312DQD Specs
