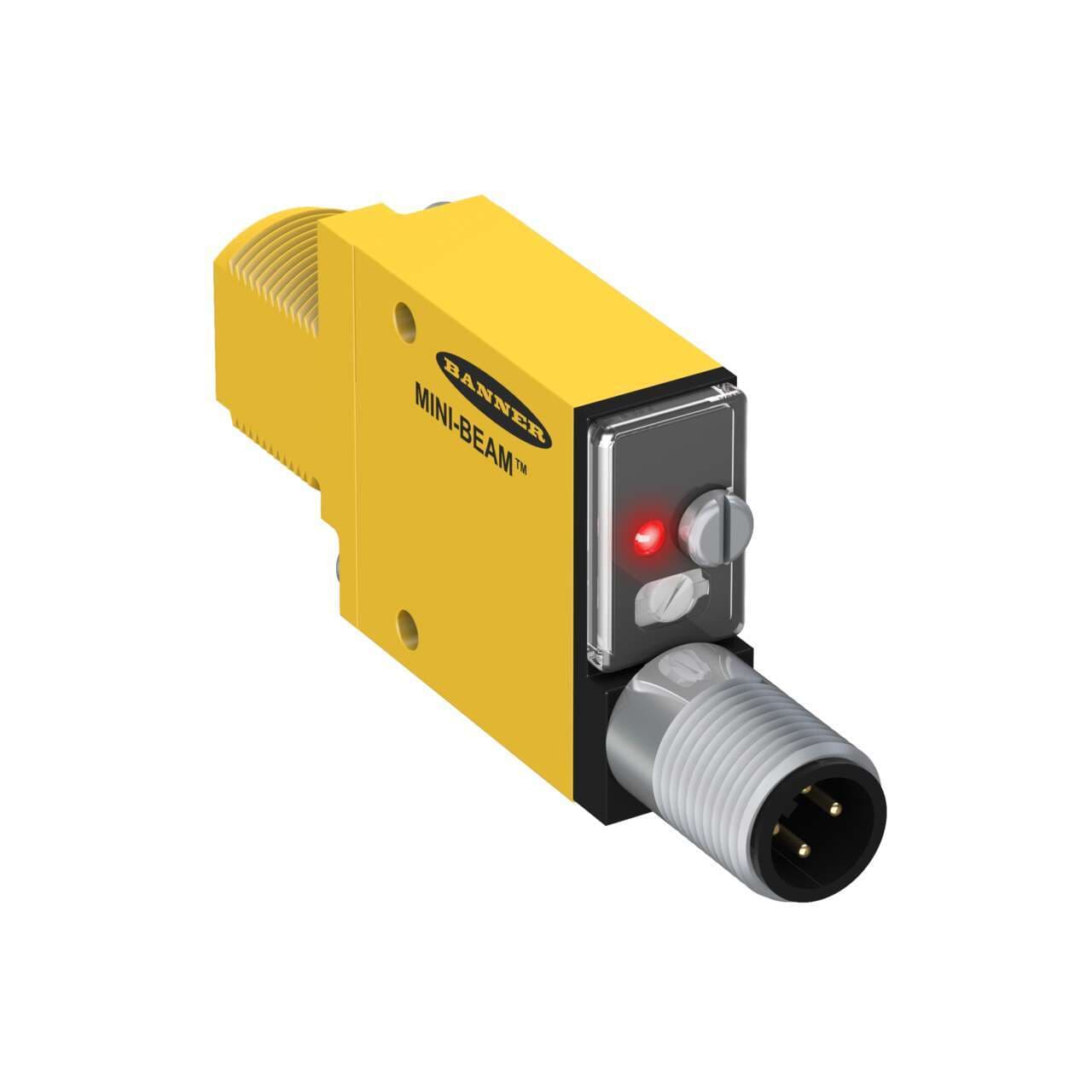

SM312LVAGQD Banner Proximity Sensors
Part#:SM312LVAGQD
Manufacturer:Banner
Alt. Part#:26913
Product Lifecycle:Active
Get a quick Quote!
MINI-BEAM: Polarized Retro; Range: 50 mm - 2 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM312LVAGQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight61.688512 g
- Country Of OriginUS
- Primary brand Banner Engineering
- Shape Rectangular
- Mounting mode Threaded mount
- Ambient air temperature for operation -20...+70 °C
- Main function Sensor (Photo-electric)
- Functions Polarized photo-electric sensor red LED (power ON) potentiometer adjustment
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Response time 1ms / 0.001 s
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 5cm...2m
- Sub-range name SM312
- Light Color Visible red
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Material thermoplastic housing Acrylic lns.
- Product series / family name MINI-BEAM series
- Design retro-reflective mode
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Compliant with standard(s) cURus CSA CE
- Thread size M18
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 26913
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 650
- Indicator LEDs
- Primary Housing Material Thermoplastic
- Connection Integral QD
- Repeatability (µs) 300
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Feature: Encapsulated Yes
- Sensing Mode (Detailed) Polarized
- Operation Light/Dark Operate
- Number of Pins 4
- Feature: Hazardous Area No
- Sensing Mode (General) Retroreflective
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Max Sensing Distance (mm) 2000
- Min Op. Temp. (°C) -20
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
- Outputs Bipolar (NPN & PNP)
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Feature: Audible No
- Power DC
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- Opposed Mode Emitter/Receiver N/A
- Housing Style Rectangular w/M18 Mount
- Output response time (ms) 1
- Lens Material Acrylic
- IO Link No
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM312LVAGQD Description
Banner Engineering SM312LVAGQD is a polarized photo-electric sensor from the SM312 series, designed in a retro-reflective mode with potentiometer adjustment. It features a thermoplastic housing and an acrylic lens. This sensor is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. The SM312LVAGQD offers an M18 threaded mount for installation and can operate within an ambient air temperature range of -20 to +70°C. It boasts a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. The sensor has a rectangular shape and provides 1 x digital output (PNP/NPN transistor). It is capable of sensing distances from 55mm to 2m and emits a visible red light. The response time of the sensor is 1ms / 0.001 s, and it supports both Light-ON and Dark-ON operating modes.
