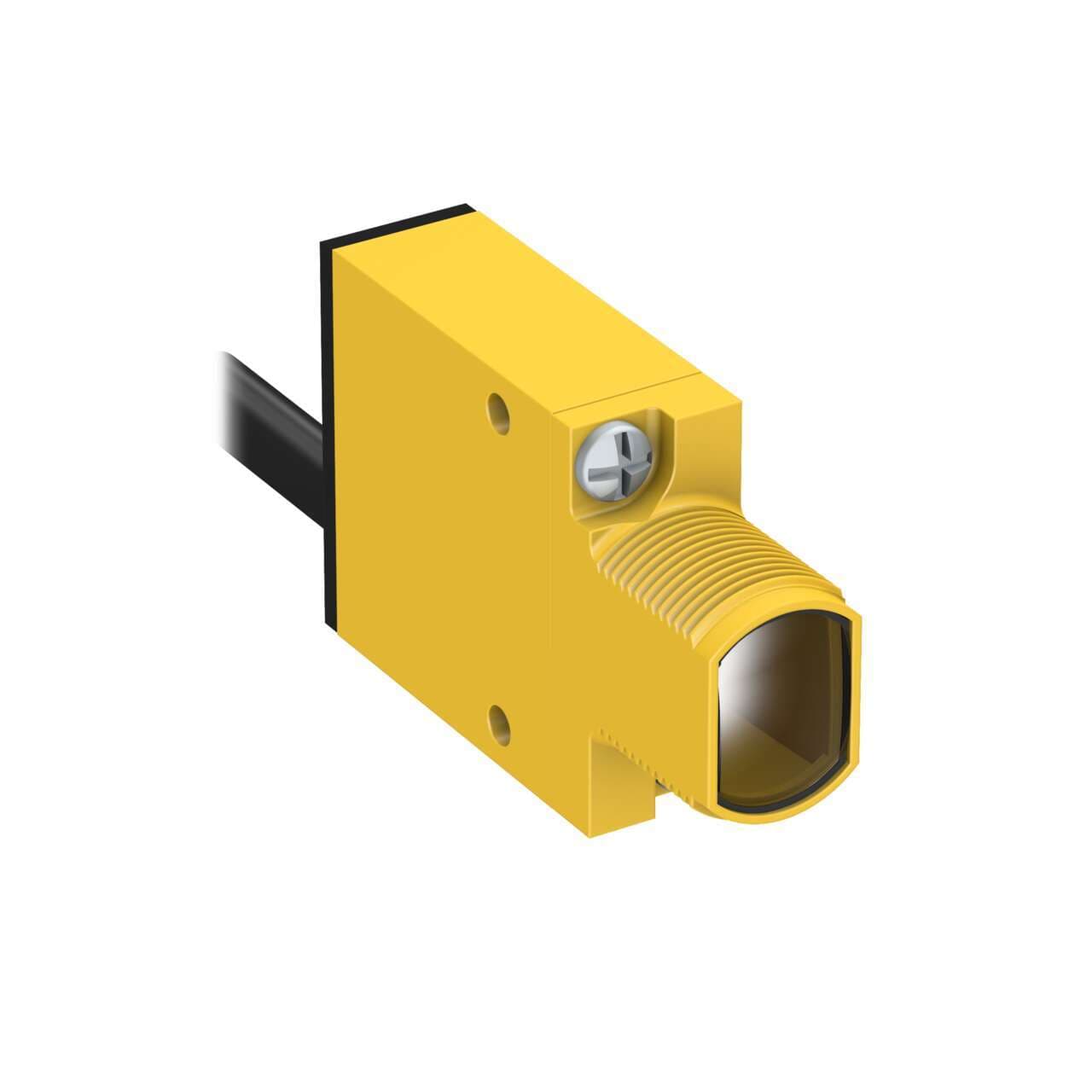

SM31EL Banner Proximity Sensors

Banner SM31EL MINI-BEAM: Emitter; Range: 30 m; Input: 10-30 V dc; Output: Not Applicable; 2 m (6.5 ft) cable
Banner

Part#:SM31EL

Manufacturer:Banner

Alt. Part#:25724

Product Lifecycle:Active

Get a quick Quote!

MINI-BEAM: Emitter; Range: 30 m; Input: 10-30 V dc; Output: Not Applicable; 2 m (6.5 ft) cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SM31EL Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight141.974296 g
  • Country Of OriginUS
  • Sub-range name
    SM312
  • Thread size
    M18
  • Degree of protection
    IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
  • Main function
    Sensor (Photo-electric)
  • Design
    through-beam system / opposed mode
  • Shape
    Rectangular
  • Compliant with standard(s)
    cURus CSA CE
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Mounting mode
    Threaded mount
  • Ambient air temperature for operation
    -20...+70 °C
  • Product series / family name
    MINI-BEAM series
  • Light Color
    Infrared (IR)
  • Response time
    1ms / 0.001 s
  • Order code / Manufacturer SKU
    25724
  • Primary brand
    Banner Engineering
  • Functions
    Photo-electric emitter red LED (power ON) potentiometer adjustment
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Material
    thermoplastic housing Acrylic lns.
  • Sensing Mode (Detailed)
    Emitter
  • Max Op. Temp. (°C)
    70
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Housing Style
    Rectangular w/M18 Mount
  • Number of Pins
    2
  • Barrel Diameter (mm)
    18
  • Cable Length (m)
    2
  • Quick Disconnect Type
    No QD
  • Operation
    N/A
  • Feature: Timing (Hold/Delay)
    No
  • Primary Housing Material
    Thermoplastic
  • Special Feature: Intrinsically Safe
    No
  • IP Rating
    IP67
  • Feature: Chemical Resistant
    No
  • Outputs
    N/A
  • Special Feature: Remote Teach
    No
  • Opposed Mode Emitter/Receiver
    Emitter
  • Sensing Beam
    Infrared LED
  • Output response time (ms)
    1
  • Special Feature: Water Detection
    No
  • Adjustments
    Potentiometer
  • Feature: Audible
    No
  • Max Sensing Distance (mm)
    30000
  • Min Op. Temp. (°C)
    -20
  • NEMA Rating
    NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
  • Feature: Encapsulated
    Yes
  • Feature: Hazardous Area
    No
  • Sensing Mode (General)
    Opposed
  • Connection
    Cable
  • Delay at Power-up (ms)
    100
  • Lens Material
    Acrylic
  • Power
    DC
  • Power Supply/Supply Voltage
    10-30 V dc
  • Repeatability (µs)
    140
  • Indicator
    LEDs
  • IO Link
    No
  • DeviceNet
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

SM31EL Description

Banner Engineering SM31EL is a photo-electric fiber optic sensor designed for through-beam system applications with opposed mode potentiometer adjustment. This sensor, part of the SM312 series, features a thermoplastic housing with an acrylic lens. It is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. The SM31EL operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed for M18 threaded mount installation and can operate in ambient air temperatures ranging from -20 to +70 degrees Celsius. This sensor offers a high degree of protection, rated at IP67 and compliant with multiple NEMA standards, including 1, 2, 3, 3S, 4, 4X, 6, and 12. It has a rectangular shape, can sense objects up to 30 meters away, utilizes infrared light, and has a response time of 1ms / 0.001 s.

Related documents SM31EL Specs

SM31EL 52980.pdf
