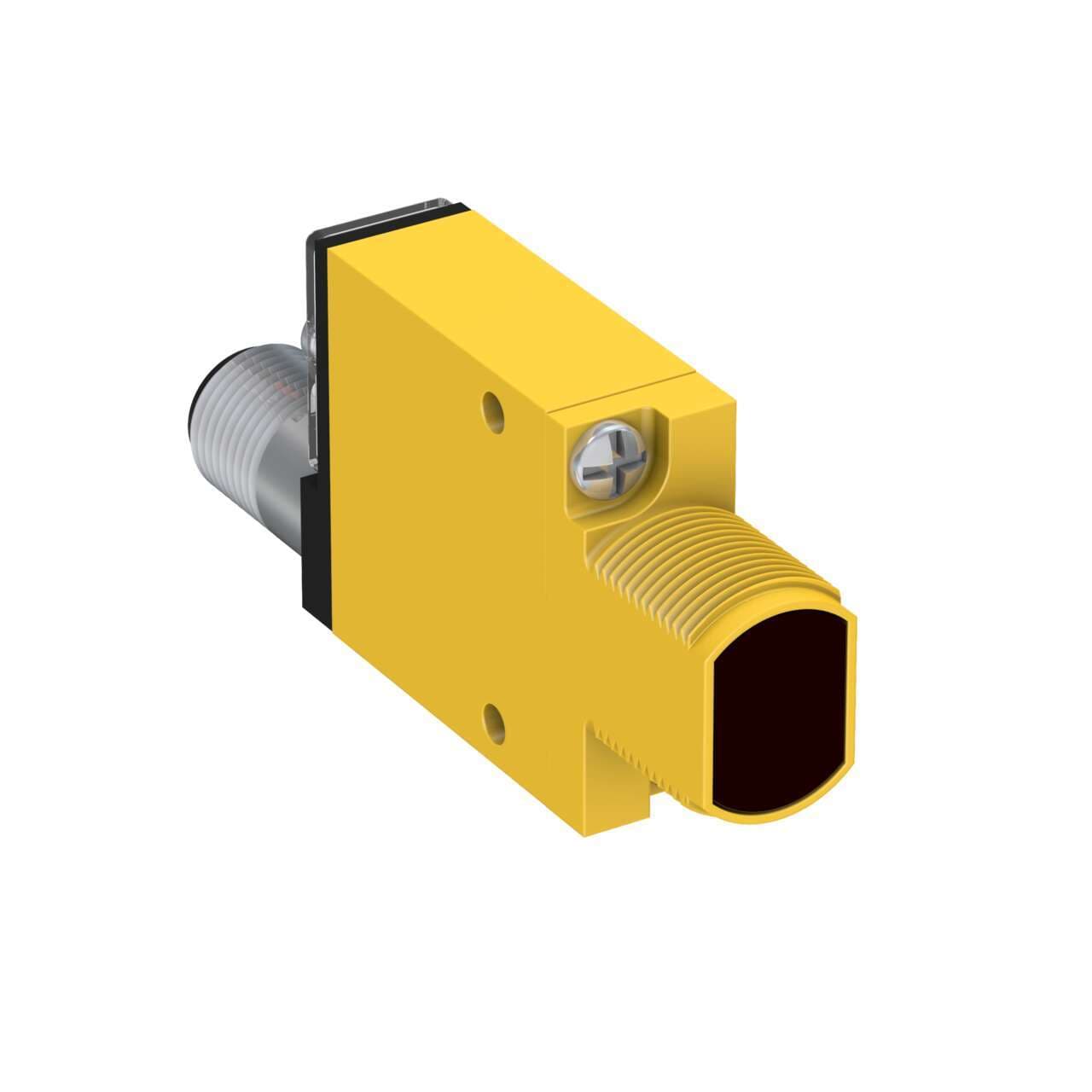

SM312LPQD Banner Proximity Sensors
Part#:SM312LPQD
Manufacturer:Banner
Alt. Part#:49771
Product Lifecycle:Active
Get a quick Quote!
MINI-BEAM: Polarized Retro; Range: 10 mm to 3 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM312LPQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight63.50288 g
- Country Of OriginUS
- Functions Polarized photo-electric sensor red LED (power ON) potentiometer adjustment
- Mounting mode Threaded mount
- Order code / Manufacturer SKU 49771
- Sub-range name SM312
- Sensing distance 3m
- Primary brand Banner Engineering
- Light Color Visible red
- Response time 1ms / 0.001 s
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Material thermoplastic housing Acrylic lns.
- Product series / family name MINI-BEAM series
- Design retro-reflective mode
- Thread size M18
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Operating mode Light-ON Dark-ON
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Compliant with standard(s) cURus CSA CE
- Ambient air temperature for operation -20...+70 °C
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Connection Integral QD
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- IO Link No
- Sensing Mode (General) Retroreflective
- Quick Disconnect Type M12 (Euro)
- Sensing Beam Wavelength 650
- Indicator LEDs
- Input/Output Discrete
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Feature: Audible No
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Outputs Bipolar (NPN & PNP)
- Sensing Beam Visible Red LED
- Output response time (ms) 1
- Feature: Chemical Resistant No
- Housing Style Rectangular w/M18 Mount
- Repeatability (µs) 300
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 3000
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Number of Pins 4
- Feature: Encapsulated Yes
- Sensing Mode (Detailed) Polarized
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM312LPQD Description
Banner Engineering SM312LPQD is a polarized photo-electric sensor from the SM312 series, designed in a retro-reflective mode with potentiometer adjustment. This sensor features a thermoplastic housing and an acrylic lens. It comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The supply voltage required for operation ranges from 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed for M18 threaded mount installation and can operate within an ambient air temperature range of -20 to +70°C. The SM312LPQD offers a high degree of protection, rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12, ensuring durability in various environmental conditions. Its rectangular shape incorporates 1 x digital output (PNP/NPN transistor) and can detect objects within a sensing distance of 10mm to 3m. The sensor emits visible red light and has a response time of 1ms / 0.001 s, with operating modes that include Light-ON and Dark-ON.
Related documents SM312LPQD Specs
