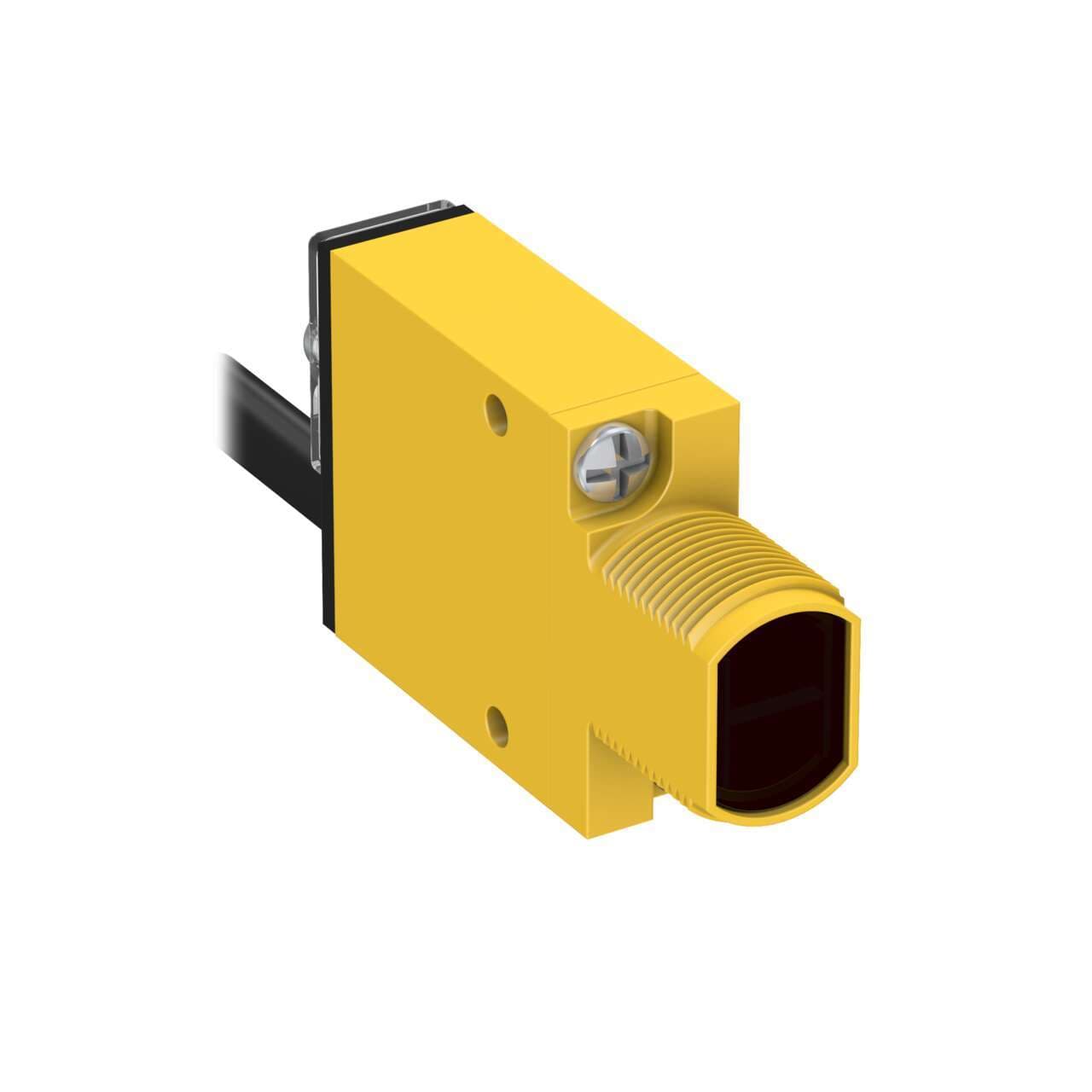

SM312LVQDP Banner Proximity Sensors
Part#:SM312LVQDP
Manufacturer:Banner
Alt. Part#:28155
Product Lifecycle:Active
Get a quick Quote!
MINI-BEAM: Retro; Range: 5 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM312LVQDP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight72.57472 g
- Country Of OriginUS
- Product series / family name MINI-BEAM series
- Design retro-reflective mode
- Light Color Visible red
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Material thermoplastic housing Acrylic lns.
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M18
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Order code / Manufacturer SKU 28155
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Main function Sensor (Photo-electric)
- Functions Photo-electric sensor red LED (power ON) potentiometer adjustment
- Shape Rectangular
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cURus CSA CE
- Sub-range name SM312
- Sensing distance 5m
- Mounting mode Threaded mount
- Response time 1ms / 0.001 s
- Ambient air temperature for operation -20...+70 °C
- Primary Housing Material Thermoplastic
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 100
- Adjustments Potentiometer
- Input/Output Discrete
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 90% @ 50°C
- IO Link No
- Housing Style Rectangular w/M18 Mount
- Outputs Bipolar (NPN & PNP)
- Special Feature: Water Detection No
- Lens Material Acrylic
- Sensing Mode (General) Retroreflective
- Special Feature: Remote Teach No
- Opposed Mode Emitter/Receiver N/A
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Non-Polarized
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Audible No
- Connection Pigtail QD
- Sensing Beam Wavelength 650
- Indicator LEDs
- Power DC
- Output response time (ms) 1
- Repeatability (µs) 300
- DeviceNet No
- Max Sensing Distance (mm) 5000
- Quick Disconnect Type M12 (Euro)
- Barrel Diameter (mm) 18
- Feature: Hazardous Area No
- Sensing Beam Visible Red LED
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- Feature: Chemical Resistant No
- Cable Length (m) 0.15
- Min Op. Temp. (°C) -20
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Feature: Encapsulated Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM312LVQDP Description
Banner Engineering SM312LVQDP is a photo-electric sensor from the SM312 series designed in a retro-reflective mode with potentiometer adjustment. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. This sensor operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can be mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 12. The SM312LVQDP has a rectangular shape, includes 1 x digital output (PNP/NPN transistor), and provides a sensing distance of up to 5m. It emits visible red light and has a response time of 1ms / 0.001 s, with operating modes that include Light-ON and Dark-ON.
