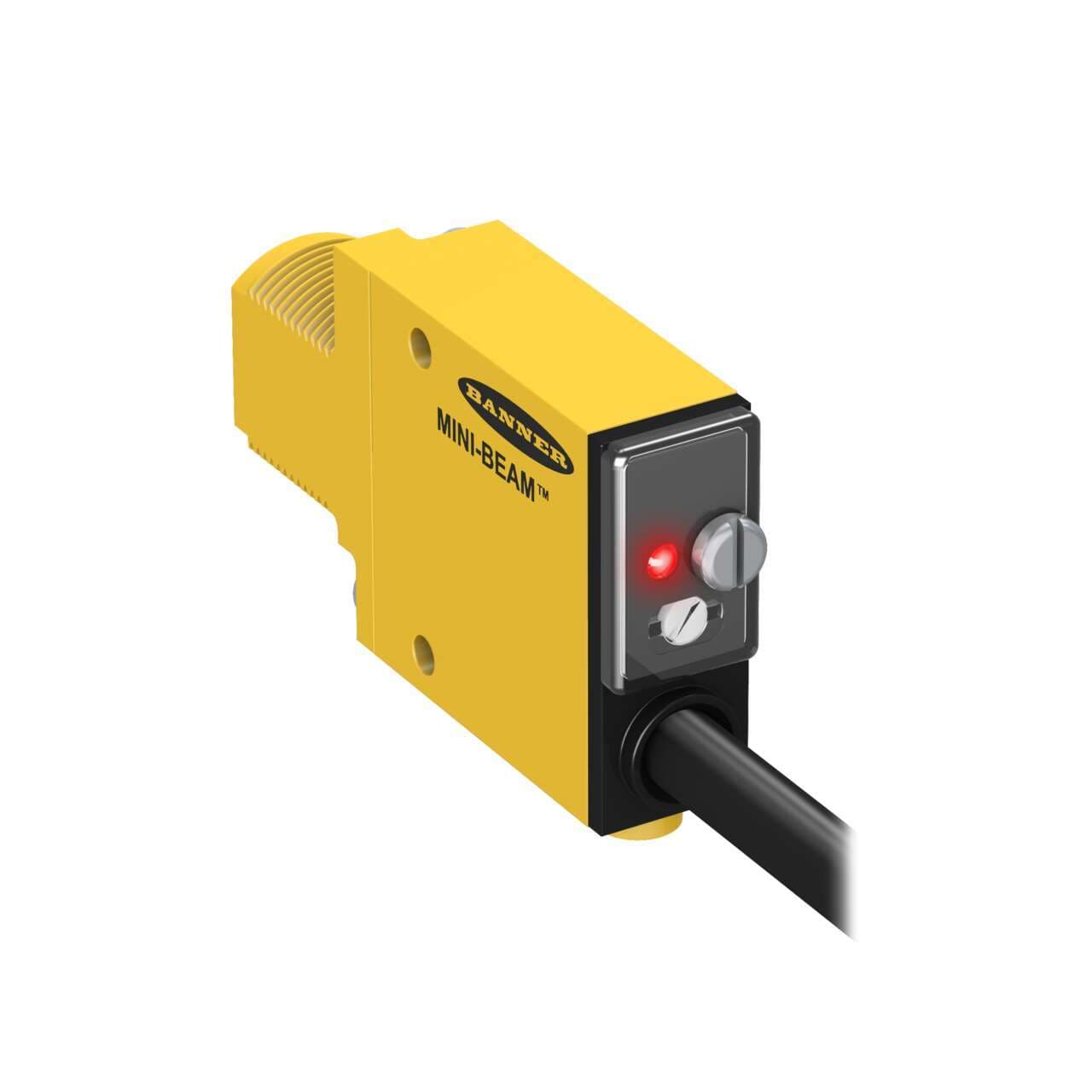

SM31RL Banner Proximity Sensors
Part#:SM31RL
Manufacturer:Banner
Alt. Part#:25725
Product Lifecycle:Active
Get a quick Quote!
MINI-BEAM: Receiver; Range: 30 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM31RL Banner price in the box on the right side or send a quick quote.
Product Details
- Weight151.046136 g
- Country Of OriginUS
- Product series / family name MINI-BEAM series
- Design through-beam system / opposed mode
- Mounting mode Threaded mount
- Sensing distance 30m
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Ambient air temperature for operation -20...+70 °C
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sub-range name SM312
- Shape Rectangular
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Main function Sensor (Photo-electric)
- Functions Photo-electric sensor receiver red LED (power ON) potentiometer adjustment
- Light Color Infrared (IR)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Thread size M18
- Response time 1ms / 0.001 s
- Compliant with standard(s) cURus CSA CE
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Order code / Manufacturer SKU 25725
- Primary Housing Material Thermoplastic
- Output response time (ms) 1
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- DeviceNet No
- Sensing Mode (General) Opposed
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Outputs Bipolar (NPN & PNP)
- Lens Material Acrylic
- Feature: Audible No
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Feature: Encapsulated Yes
- Connection Cable
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Indicator LEDs
- Input/Output Discrete
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 18
- Sensing Mode (Detailed) Receiver
- Quick Disconnect Type No QD
- Repeatability (µs) 140
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 30000
- Special Feature: Intrinsically Safe No
- Adjustments Potentiometer
- IO Link No
- Cable Length (m) 2
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver Receiver
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM31RL Description
Banner Engineering SM31RL is a photo-electric sensor from the SM312 series designed with a through-beam system and opposed mode potentiometer adjustment. This sensor, functioning as a receiver alone, is housed in thermoplastic with an acrylic lens. It features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. The SM31RL operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. The rectangular-shaped sensor provides 1 x digital output (PNP/NPN transistor), has a sensing distance of up to 30m, utilizes infrared (IR) light, and boasts a response time of 1ms / 0.001 s. Its operating modes include Light-ON and Dark-ON.
