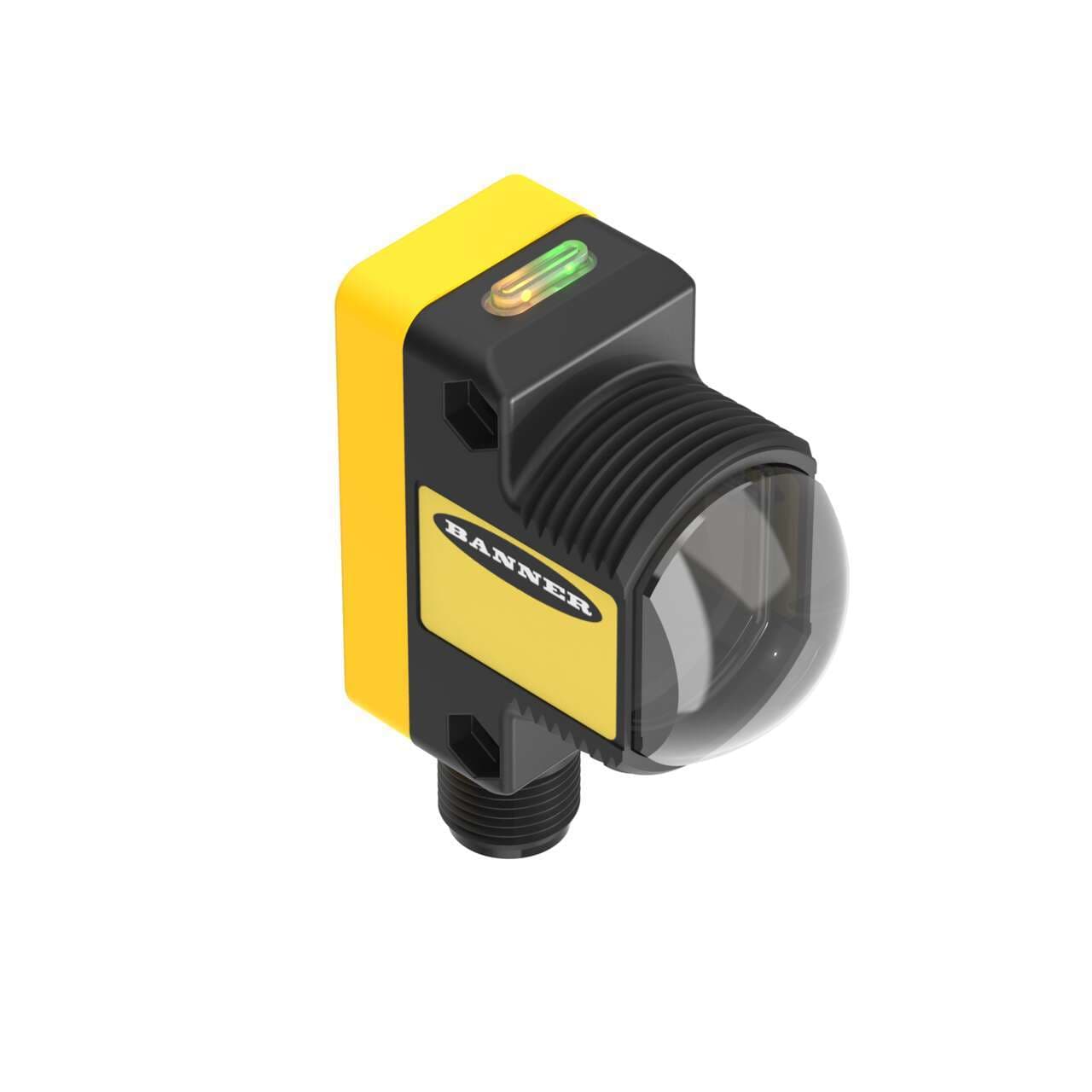

QS30RRXQ Banner Proximity Sensors
Part#:QS30RRXQ
Manufacturer:Banner
Alt. Part#:71741
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS30 Series: High-Powered Receiver; Range: 213 M; Input: 10-30 V dc; Output: DO (Dark Operate) Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD (CAR WASH)
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS30RRXQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight81.64656 g
- Country Of OriginUS
- Sensing distance 213m
- Mounting mode Threaded mount
- Degree of protection IP69K NEMA 6
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sub-range name QS30 high-powered receivers series
- Thread size M30
- Material thermoplastic housing Zeonex lns.
- Primary brand Banner Engineering
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (output state)
- Shape Rectangular
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Ambient air temperature for operation -20...+70 °C
- Product series / family name WORLD-BEAM series
- Design through-beam system / opposed mode
- Wavelength 875 nm
- Operating mode Dark-ON
- Response time 5ms / 0.005 s
- Light Color Infrared (IR)
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Order code / Manufacturer SKU 71741
- Compliant with standard(s) cULus CE
- Min Op. Temp. (°C) -20
- Number of Pins 5
- IO Link No
- Housing Style Rectangular w/M30 Mount
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver Receiver
- Adjustments N/A
- DeviceNet No
- Input/Output Discrete
- Power DC
- Outputs Bipolar (NPN & PNP)
- Repeatability (µs) 5000
- Barrel Diameter (mm) 30
- Sensing Mode (General) Opposed
- Quick Disconnect Type M12 (Euro)
- Max Op. Temp. (°C) 70
- Feature: Encapsulated Yes
- Sensing Beam Infrared LED
- Primary Housing Material Thermoplastic
- Power Supply/Supply Voltage 10-30 V dc
- Connection Integral QD
- Special Feature: Intrinsically Safe No
- IP Rating IP69
- Sensing Mode (Detailed) Receiver
- Max Sensing Distance (mm) 213000
- Output response time (ms) 5
- Operation Dark Operate
- Sensing Beam Wavelength 875
- Indicator Bargraph
- Special Feature: Remote Teach No
- Delay at Power-up (ms) 100
- NEMA Rating NEMA 6
- Max Op. Relative Humidity [%] 95% @ 50°C
- Lens Material Zeonex
- Feature: Washdown Rated Yes
- Feature: Timing (Hold/Delay) No
- Feature: Audible No
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS30RRXQ Description
Banner Engineering QS30RRXQ is a photo-electric sensor designed for through-beam system applications, functioning as a receiver within the QS30 high-powered receivers series. It features a M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. The sensor is equipped with a 5-pin Euro-style M12 connector for straightforward connection and boasts a robust thermoplastic housing made from Cyclo Olefin Polymers (COP). With an IP69K and NEMA 6 degree of protection, it is well-suited for demanding environments. The QS30RRXQ operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It has a rectangular shape and offers a substantial sensing distance of up to 213 meters, utilizing infrared light with a wavelength of 875 nm. The sensor operates in a Dark-ON mode and includes 1 x digital output (PNP/NPN transistor) with a rapid response time of 5ms or 0.005 seconds.
Related documents QS30RRXQ Specs
