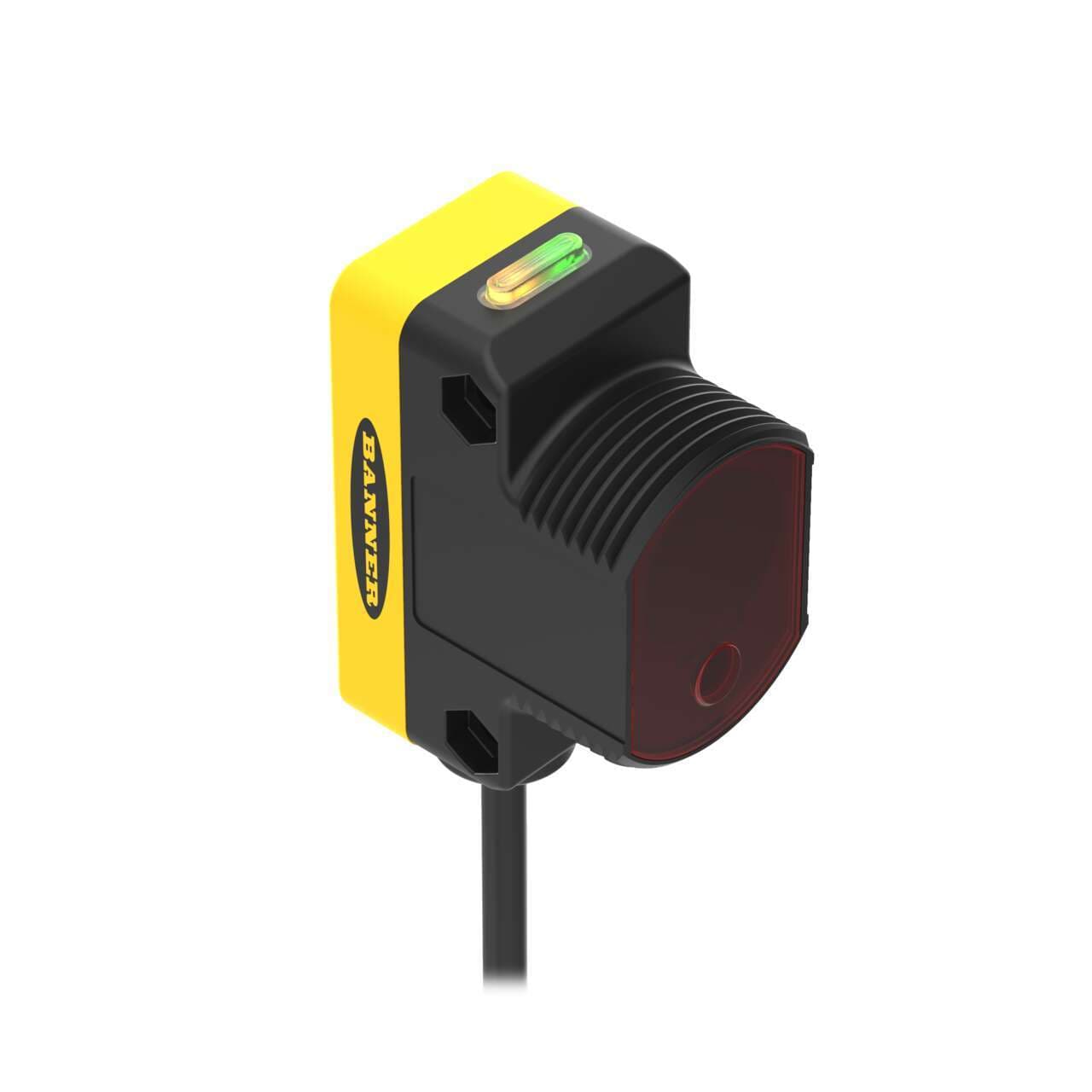

QS30LDQPMA Banner Proximity Sensors
Part#:QS30LDQPMA
Manufacturer:Banner
Alt. Part#:72100
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS30: Laser Diffuse (Class 1); Range: 400 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 PUR Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS30LDQPMA Banner price in the box on the right side or send a quick quote.
Product Details
- Weight108.86208 g
- Country Of OriginUS
- Repeatability (µs) 70
- Feature: Encapsulated No
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach Yes
- Indicator LEDs
- Sensing Beam Visible Red Laser
- Max Sensing Distance (mm) 400
- Output response time (ms) 0.5
- NEMA Rating NEMA 6
- IO Link No
- Sensing Mode (Detailed) Diffuse
- Outputs Bipolar (NPN & PNP)
- Special Feature: Intrinsically Safe No
- Adjustments Teach Button
- Feature: Chemical Resistant No
- Feature: Audible No
- Sensing Mode (General) Proximity
- Max Op. Relative Humidity [%] 95% @ 50°C
- Primary Housing Material Thermoplastic
- Sensing Beam Wavelength 650
- Quick Disconnect Type M12 (Euro)
- Lens Material Acrylic
- DeviceNet No
- Input/Output Discrete
- Max Op. Temp. (°C) 50
- IP Rating IP67
- Feature: Hazardous Area No
- Small Visible Spot Laser
- Min Op. Temp. (°C) -10
- Delay at Power-up (ms) 1000
- Opposed Mode Emitter/Receiver N/A
- Housing Style Rectangular w/M30 Mount
- Connection Pigtail PUR QD
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Laser Classification Class 1
- Operation Light/Dark Operate
- Number of Pins 5
- Feature: Timing (Hold/Delay) Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS30LDQPMA Description
Banner Engineering QS30LDQPMA is a Class 1 laser photo-electric sensor designed for a variety of applications requiring precise detection. It features a diffuse mode with TEACH mode functionality and is equipped for mounting via an M30 threaded mount. This sensor operates within an ambient air temperature range of -10 to +50°C and is housed in a thermoplastic casing with an acrylic lens and a polyurethane (PUR) cable sheath, ensuring durability. It comes pre-wired with a 6" / 150mm PUR cable that terminates with a 5-pin Euro-style M12 connector for easy integration. The QS30LDQPMA, part of the QS30 Diffuse-mode Laser Sensors series, offers a sensing distance of 400mm and emits a visible red light with a wavelength of 650 nm. It supports both Light-ON and Dark-ON operating modes for increased application flexibility. This sensor is protected to IP67 and NEMA 6 standards, making it suitable for use in demanding environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and features a single digital output (PNP/NPN transistor) with a rapid response time of 0.5ms / 0.0005 s.
Related documents QS30LDQPMA Specs
