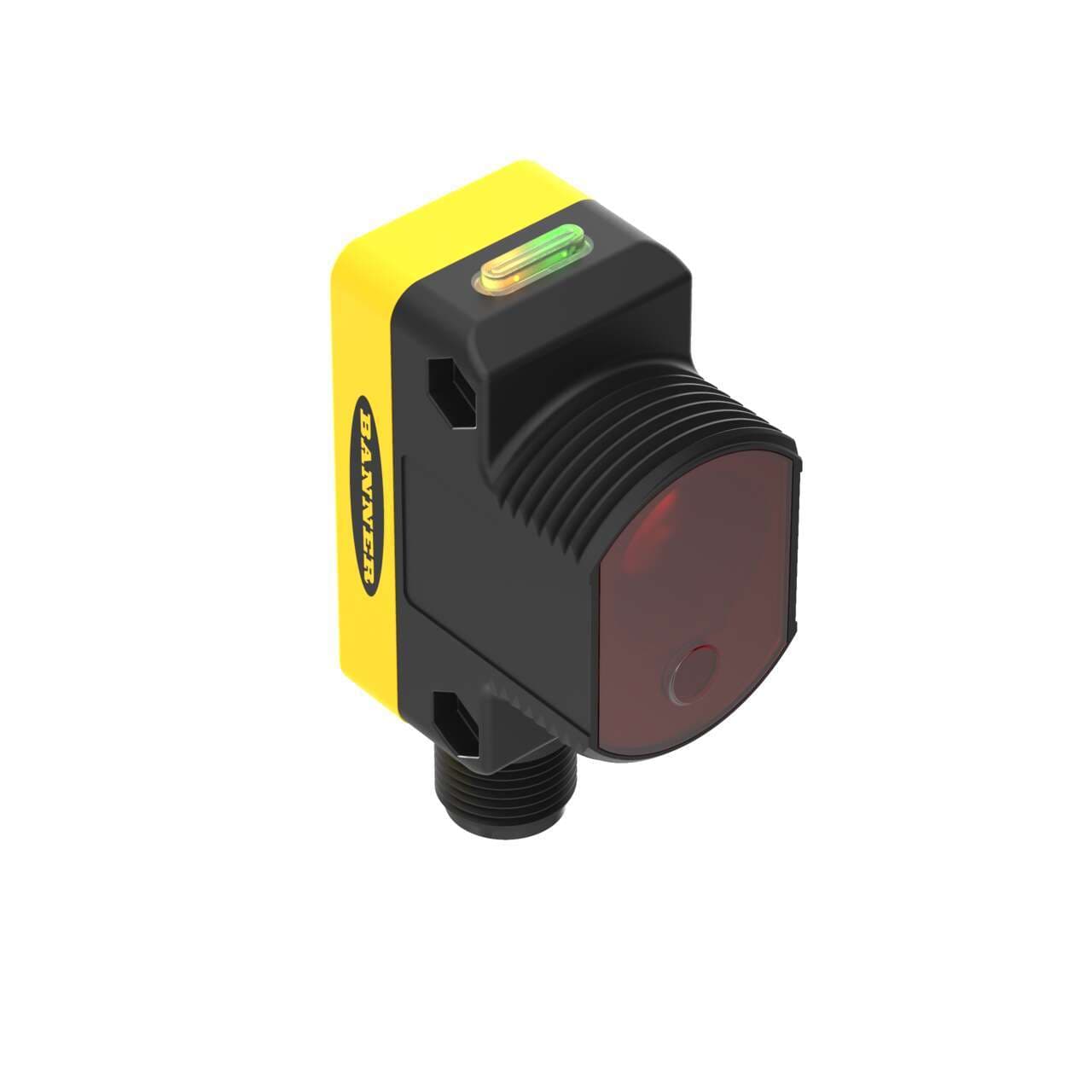

QS30LDQ Banner Proximity Sensors
Part#:QS30LDQ
Manufacturer:Banner
Alt. Part#:70231
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS30 Series: Laser Diffuse (Class 1); Range: 400 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS30LDQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight81.64656 g
- Country Of OriginUS
- Sub-range name QS30 Diffuse-mode Laser sensors series
- Design diffuse mode
- Shape Rectangular
- Degree of protection IP67 NEMA 6
- Primary brand Banner Engineering
- Wavelength 650 nm
- Product series / family name WORLD-BEAM series
- Functions Class 1 Laser photo-electric sensor green LED (power ON) yellow LED (output state) TEACH mode
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -10...+50 °C
- Light Color Visible red
- Thread size M30
- Response time 0.5ms / 0.0005 s
- Material thermoplastic housing Acrylic lns.
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 400mm
- Mounting mode Threaded mount
- Compliant with standard(s) cULus CE
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Order code / Manufacturer SKU 70231
- Small Visible Spot Laser
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- DeviceNet No
- Primary Housing Material Thermoplastic
- Outputs Bipolar (NPN & PNP)
- Power DC
- Connection Integral QD
- Repeatability (µs) 70
- Indicator LEDs
- Feature: Audible No
- Sensing Mode (General) Proximity
- Output response time (ms) 0.5
- Sensing Beam Wavelength 650
- Feature: Encapsulated No
- Housing Style Rectangular w/M30 Mount
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach Yes
- Lens Material Acrylic
- Input/Output Discrete
- Operation Light/Dark Operate
- Number of Pins 5
- Feature: Chemical Resistant No
- Laser Classification Class 1
- Min Op. Temp. (°C) -10
- Delay at Power-up (ms) 1000
- Adjustments Teach Button
- Sensing Beam Visible Red Laser
- Max Sensing Distance (mm) 400
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- Sensing Mode (Detailed) Diffuse
- Quick Disconnect Type M12 (Euro)
- Max Op. Relative Humidity [%] 95% @ 50°C
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Max Op. Temp. (°C) 50
- IP Rating IP67
- Feature: Hazardous Area No
- Feature: Timing (Hold/Delay) Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS30LDQ Description
Banner Engineering QS30LDQ is a Class 1 laser photo-electric sensor designed for a variety of applications. It features a diffuse mode with TEACH mode functionality and is equipped with a 5-pin Euro-style M12 connector for easy connection. This sensor is part of the QS30 Diffuse-mode Laser sensors series and is designed for mounting via an M30 threaded mount. It operates within an ambient air temperature range of -10 to +50 °C and offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The QS30LDQ operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens. The sensing distance is up to 400mm, and it emits a visible red light with a wavelength of 650 nm. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP/NPN transistor) with a rapid response time of 0.5ms / 0.0005 s.
