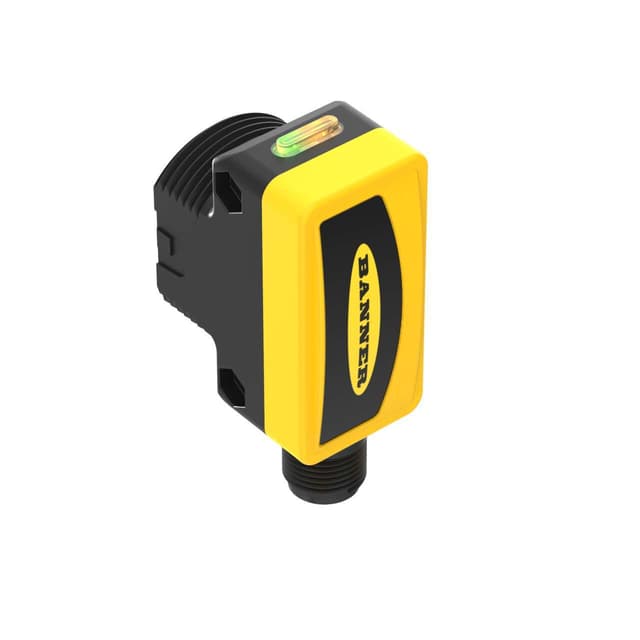

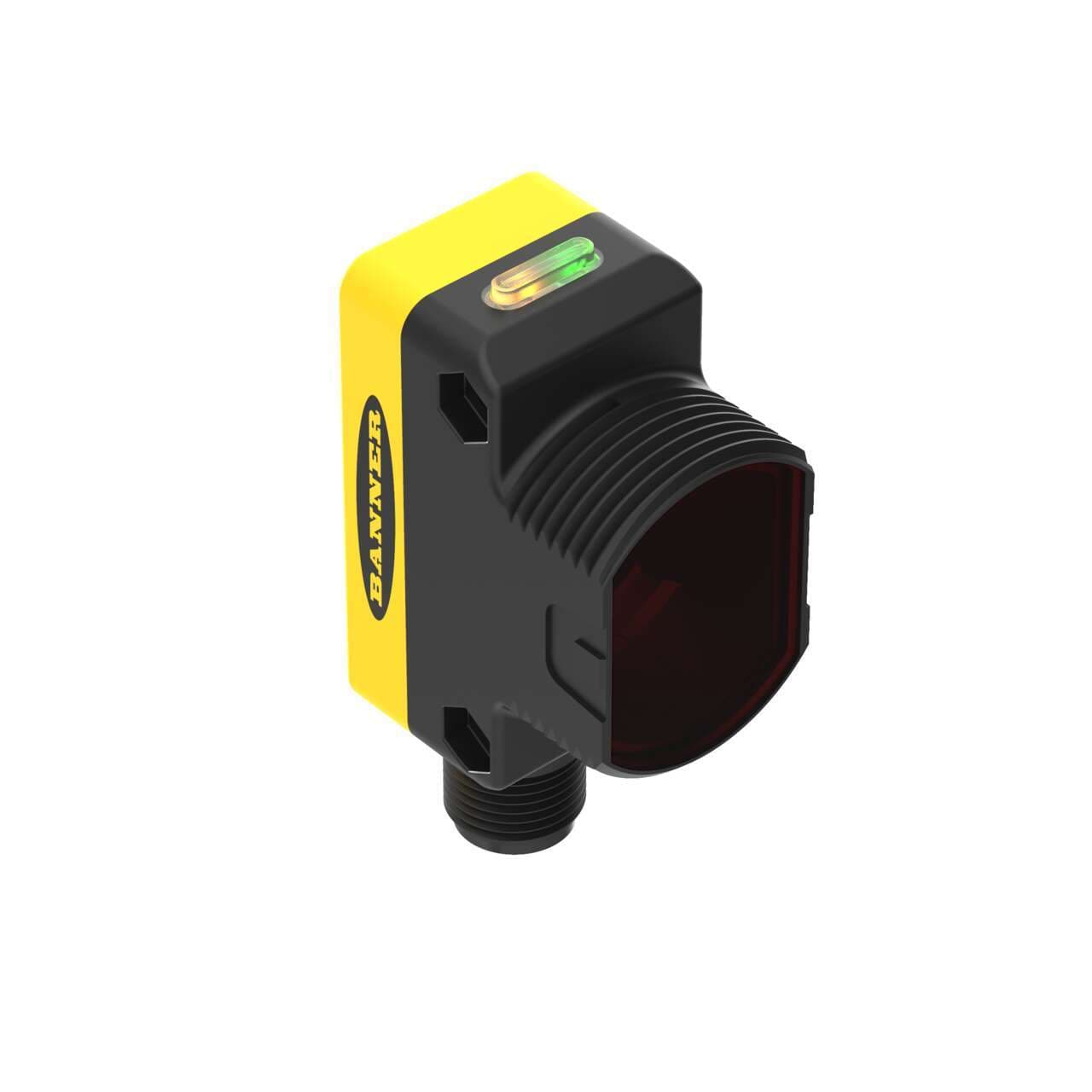

QS30DQ Banner Proximity Sensors
Part#:QS30DQ
Manufacturer:Banner
Alt. Part#:73095
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS30 Series: Diffuse; Range: 1.0 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS30DQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight45.3592 g
- Country Of OriginUS
- Main function Sensor (Photo-electric)
- Thread size M30
- Primary brand Banner Engineering
- Functions Photo-electric sensor green LED (power ON) yellow LED (output state) potentiometer adjustment
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Sub-range name QS30 DC voltage series
- Design diffuse mode
- Mounting mode Threaded mount
- Degree of protection IP67 NEMA 6
- Product series / family name WORLD-BEAM series
- Sensing distance 1m
- Light Color Infrared (IR)
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Response time 2ms / 0.002 s
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Ambient air temperature for operation -20...+70 °C
- Order code / Manufacturer SKU 73095
- Compliant with standard(s) CE
- Sensing Beam Infrared LED
- Sensing Mode (General) Proximity
- Power DC
- Max Sensing Distance (mm) 1000
- Outputs Bipolar (NPN & PNP)
- Max Op. Temp. (°C) 70
- Operation Light/Dark Operate
- Output response time (ms) 2
- Special Feature: Water Detection No
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- IP Rating IP67
- Adjustments Potentiometer
- Max Op. Relative Humidity [%] 95% @ 55°C
- Indicator LEDs
- Lens Material Acrylic
- Opposed Mode Emitter/Receiver N/A
- Feature: Encapsulated No
- Feature: Timing (Hold/Delay) No
- DeviceNet No
- Sensing Mode (Detailed) Diffuse
- Min Op. Temp. (°C) -20
- Repeatability (µs) 500
- Feature: Chemical Resistant No
- Housing Style Rectangular w/M30 Mount
- Connection Integral QD
- Number of Pins 5
- Feature: Hazardous Area No
- Input/Output Discrete
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 30
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS30DQ Description
Banner Engineering QS30DQ is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It comes in a rectangular shape with a thermoplastic housing and an acrylic lens, suitable for M30 threaded mount installations. This sensor operates within an ambient air temperature range of -20 to +70°C and is equipped with a 5-pin Euro-style M12 connector for connectivity. Part of the QS30 DC voltage series, it offers a sensing distance of 1m and utilizes infrared light, with the capability to operate in both Light-ON and Dark-ON modes. The QS30DQ provides a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. It supports a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and features a digital output (PNP/NPN transistor) with a rapid response time of 2ms / 0.002 s.
