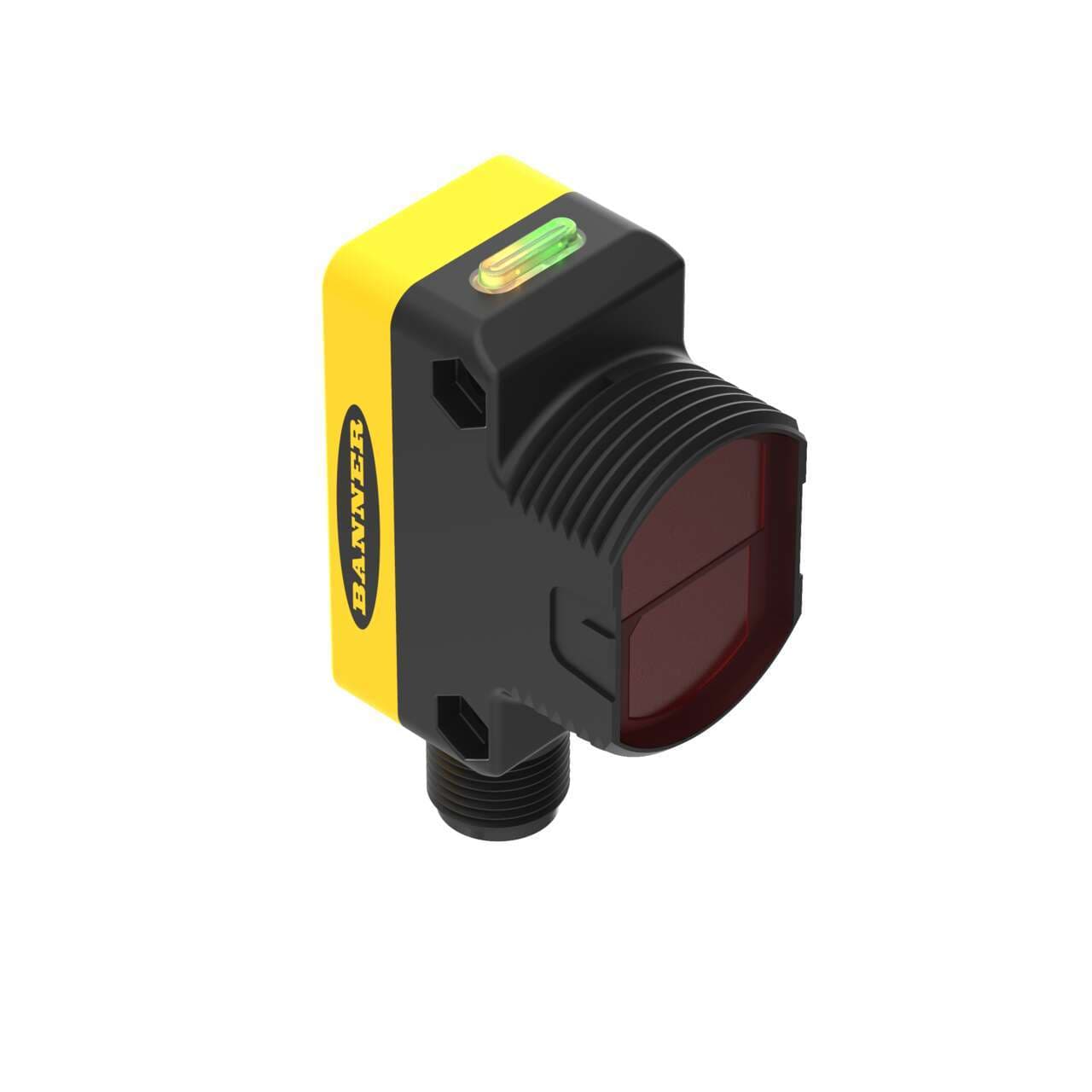

QS30LPQ Banner Proximity Sensors
Part#:QS30LPQ
Manufacturer:Banner
Alt. Part#:73084
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS30 Series: Polarized Retro; Range: 8 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS30LPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight54.43104 g
- Country Of OriginUS
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- Adjustments Potentiometer
- IO Link No
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- DeviceNet No
- Power DC
- Input/Output Discrete
- Operation Light/Dark Operate
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Sensing Beam Visible Red LED
- Connection Integral QD
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 55°C
- Feature: Chemical Resistant No
- Housing Style Rectangular w/M30 Mount
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 8000
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Opposed Mode Emitter/Receiver N/A
- Outputs Bipolar (NPN & PNP)
- Output response time (ms) 2
- Number of Pins 5
- Indicator LEDs
- Sensing Mode (Detailed) Polarized
- Repeatability (µs) 500
- Feature: Hazardous Area No
- Sensing Mode (General) Retroreflective
- Max Op. Temp. (°C) 70
- Sensing Beam Wavelength 630
- Lens Material Acrylic
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS30LPQ Description
Banner Engineering QS30LPQ is a polarized photo-electric sensor designed for versatile applications, featuring an M30 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and is constructed in a rectangular shape with a thermoplastic housing and acrylic lens for durability. This sensor is part of the QS30 DC voltage series and offers a retro-reflective mode with potentiometer adjustment for precise control. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy connection and is powered by a DC voltage ranging from 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The QS30LPQ boasts an IP67 NEMA 6 degree of protection, ensuring its operation in challenging environments. It has a sensing distance of up to 8 meters and utilizes visible red light for detection. The operating modes include Light-ON and Dark-ON, and it features a single digital output (PNP/NPN transistor) with a rapid response time of 2ms / 0.002 s.
Related documents QS30LPQ Specs
