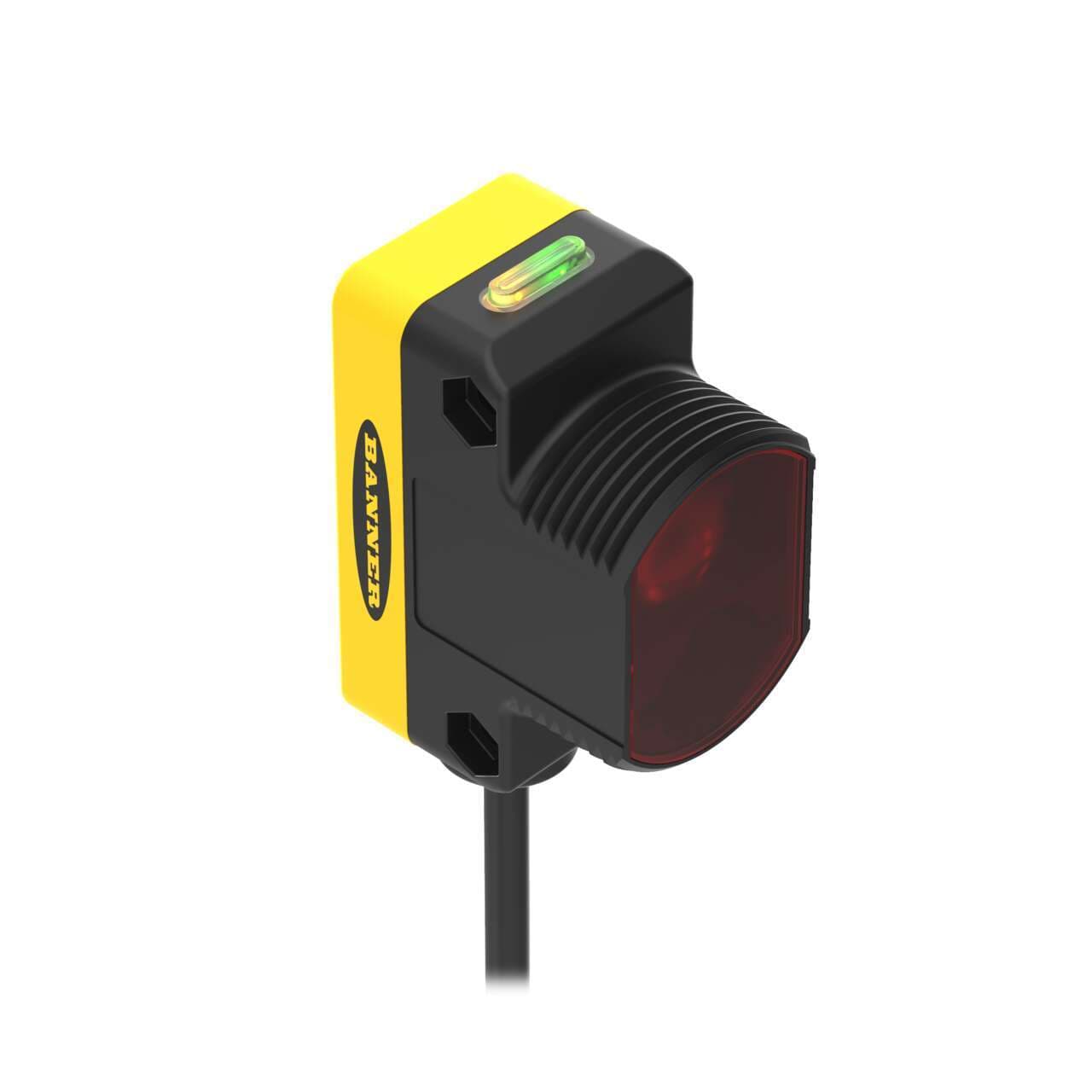

QS30EDV Banner Proximity Sensors


Part#:QS30EDV
Manufacturer:Banner
Alt. Part#:76090
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam; Range: High-Speed Mode: 1100 mm; Normal Mode: 1400 mm; Input: 10-30 V dc; Output: Bipolar NPN/PNP; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS30EDV Banner price in the box on the right side or send a quick quote.
Product Details
- Weight113.398 g
- Country Of OriginUS
- Sub-range name QS30 Expert series
- Main function Sensor (Photo-electric)
- Thread size M30
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -10...+55 °C
- Product series / family name WORLD-BEAM series
- Light Color Visible red
- Wavelength 660 nm
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Material thermoplastic housing Acrylic lns.
- Mounting mode Threaded mount
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Functions Photo-electric sensor green LED (power ON) yellow LED (output state) TEACH mode
- Design diffuse mode
- Shape Rectangular
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 76090
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 1.4m
- Response time 0.3-1.8ms / 0.0003-0.0018 s
- Compliant with standard(s) cULus CE
- Input/Output Discrete
- Quick Disconnect Type No QD
- Power DC
- Outputs Bipolar (NPN & PNP)
- Special Feature: Remote Teach Yes
- Barrel Diameter (mm) 30
- Cable Length (m) 2
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Indicator Bargraph
- IO Link No
- Housing Style Rectangular w/M30 Mount
- Connection Cable
- Delay at Power-up (ms) 250
- Opposed Mode Emitter/Receiver N/A
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -10
- Lens Material Acrylic
- Feature: Timing (Hold/Delay) Yes
- Max Sensing Distance (mm) 1400
- Operation Light/Dark Operate
- Number of Pins 5
- Feature: Audible No
- Sensing Mode (General) Proximity
- Max Op. Temp. (°C) 55
- Max Op. Relative Humidity [%] 95% @ 55°C
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Diffuse
- Output response time (ms) 0.3-1.8
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Sensing Beam Visible Red LED
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- DeviceNet No
- Sensing Beam Wavelength 660
- Adjustments Teach Button
- Repeatability (µs) 100 to 150
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS30EDV Description
Banner Engineering QS30EDV is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with TEACH mode functionality. It comes with an M30 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +55 °C. This sensor is part of the QS30 Expert series and offers a high degree of protection with an IP67 NEMA 6 rating, ensuring durability in various environments. It is powered by a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. The QS30EDV has a rectangular shape with a thermoplastic housing and an acrylic lens, designed for a sensing distance of up to 1.4m. It emits visible red light at a wavelength of 660 nm and can operate in both Light-ON and Dark-ON modes. The sensor is equipped with a pre-wired 6.5ft / 2m cable terminated with bare end flying leads for easy connection and features one digital output (PNP/NPN transistor) with a response time ranging from 0.3 to 1.8ms.
Related documents QS30EDV Specs
