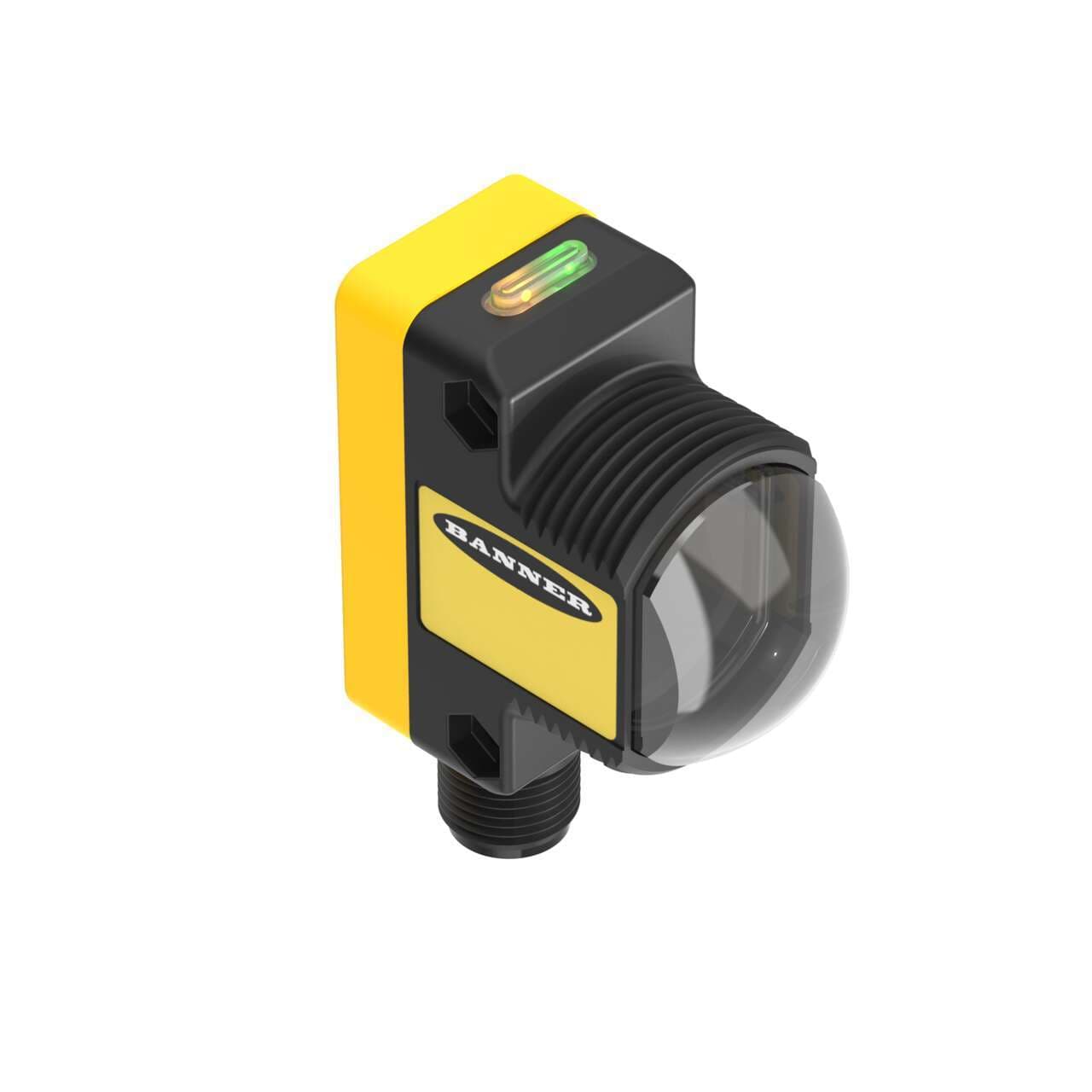

QS30EXQ Banner Proximity Sensors
Part#:QS30EXQ
Manufacturer:Banner
Alt. Part#:71561
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS30 Series: High-Powered Emitter; Range: 213 m; Input: 10-30 V dc; Output: Not Applicable; 5-pin M12 QD (CAR WASH)
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS30EXQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight81.64656 g
- Country Of OriginUS
- Light Color Infrared (IR)
- Mounting mode Threaded mount
- Compliant with standard(s) cULus CE
- Sub-range name QS30 high-powered receivers series
- Shape Rectangular
- Response time 30ms / 0.03 s
- Order code / Manufacturer SKU 71561
- Main function Sensor (Photo-electric)
- Design through-beam system / opposed mode
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Ambient air temperature for operation -20...+60 °C
- Product series / family name WORLD-BEAM series
- Functions Photo-electric emitter green LED (power ON) yellow LED (output state)
- Wavelength 875 nm
- Material thermoplastic housing Zeonex lns.
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M30
- Degree of protection IP69K NEMA 6
- Housing Style Rectangular w/M30 Mount
- Output response time (ms) 30
- Adjustments N/A
- Feature: Audible No
- Connection Integral QD
- Sensing Beam Wavelength 875
- Opposed Mode Emitter/Receiver Emitter
- Min Op. Temp. (°C) -20
- Power DC
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 30
- Quick Disconnect Type M12 (Euro)
- Sensing Mode (General) Opposed
- Lens Material Zeonex
- Feature: Hazardous Area No
- Operation N/A
- Feature: Washdown Rated Yes
- Number of Pins 5
- Max Sensing Distance (mm) 213000
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- DeviceNet No
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Infrared LED
- Repeatability (µs) 5000
- Feature: Encapsulated Yes
- Sensing Mode (Detailed) Emitter
- Max Op. Temp. (°C) 60
- IP Rating IP69
- Feature: Timing (Hold/Delay) No
- Outputs N/A
- Special Feature: Water Detection No
- Indicator LEDs
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS30EXQ Description
Banner Engineering QS30EXQ is a photo-electric sensor designed for through-beam system applications, functioning as an emitter within the QS30 high-powered receivers series. This sensor features a M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +60°C. It is equipped with a 5-pin Euro-style M12 connector for straightforward connection. The QS30EXQ offers a high degree of protection with an IP69K NEMA 6 rating, ensuring durability in demanding environments. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The sensor's rectangular shape is constructed from thermoplastic housing and Cyclo Olefin Polymers (COP) lens, supporting a sensing distance of up to 213 meters. It utilizes infrared light with a wavelength of 875 nm and boasts a rapid response time of 30ms.
Related documents QS30EXQ Specs
