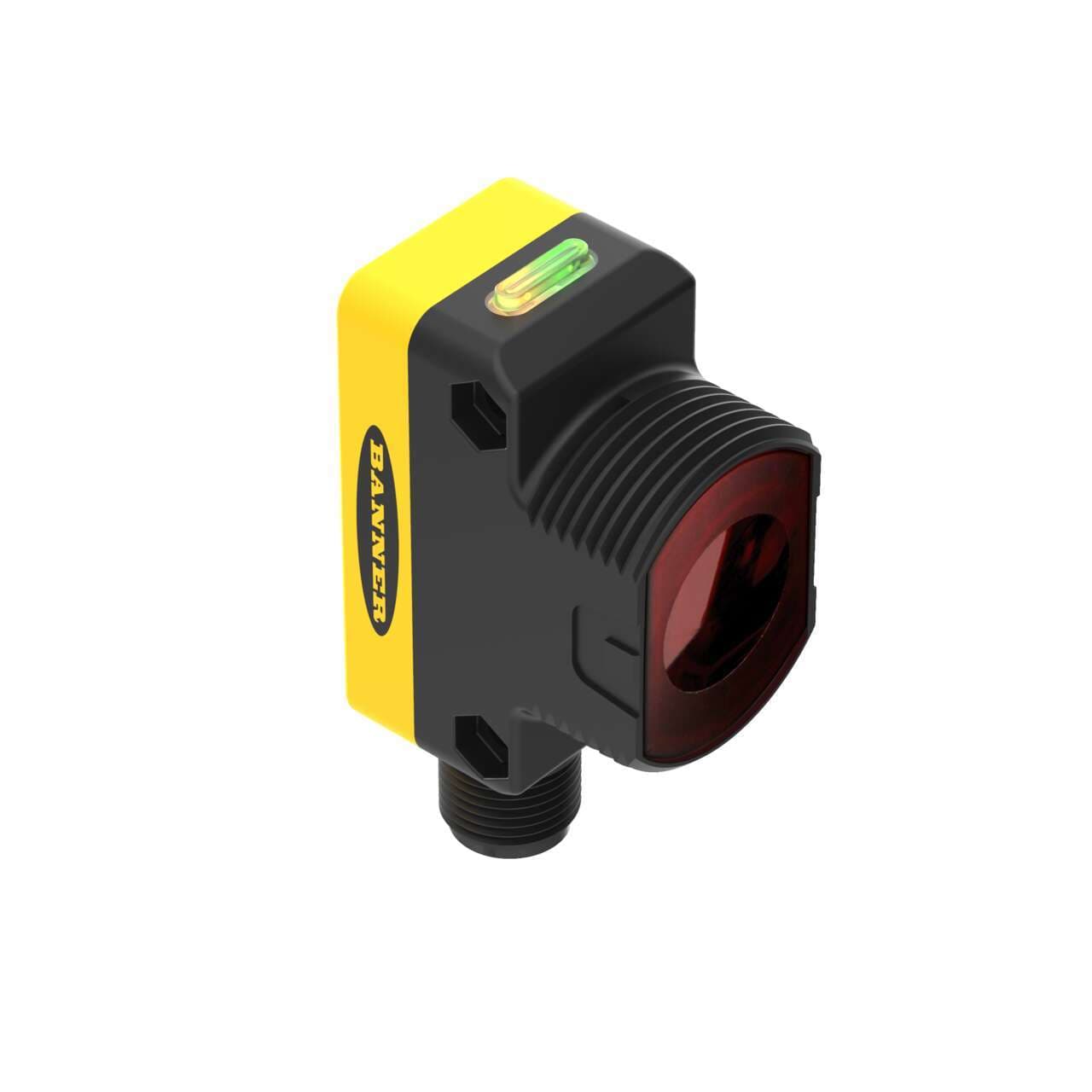

QS30EQ Banner Proximity Sensors
Part#:QS30EQ
Manufacturer:Banner
Alt. Part#:73082
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS30 Series: Emitter; Range: 60 m; Input: 10-30 V dc; Output: Not Applicable; 5-pin M12 QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS30EQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight54.43104 g
- Country Of OriginUS
- Primary brand Banner Engineering
- Functions Photo-electric emitter green LED (power ON) yellow LED (output state)
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 73082
- Product series / family name WORLD-BEAM series
- Shape Rectangular
- Material thermoplastic housing Acrylic lns.
- Sub-range name QS30 DC voltage series
- Thread size M30
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Ambient air temperature for operation -20...+70 °C
- Main function Sensor (Photo-electric)
- Design through-beam system / opposed mode
- Light Color Infrared (IR)
- Response time 5ms / 0.005 s
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Mounting mode Threaded mount
- Compliant with standard(s) cURus CE
- Power DC
- Output response time (ms) 5
- IP Rating IP67
- Indicator LEDs
- Housing Style Rectangular w/M30 Mount
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Primary Housing Material Thermoplastic
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) N/A
- Feature: Hazardous Area No
- Number of Pins 5
- Feature: Audible No
- Sensing Mode (General) Opposed
- Min Op. Temp. (°C) -20
- Outputs N/A
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- IO Link No
- Connection Integral QD
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Emitter
- Operation N/A
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Encapsulated No
- Max Sensing Distance (mm) 60000
- Special Feature: Remote Teach No
- Adjustments N/A
- DeviceNet No
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver Emitter
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS30EQ Description
Banner Engineering QS30EQ is a photo-electric sensor designed for through-beam system applications, functioning as an emitter within the QS30 DC voltage series. It features an M30 threaded mount for secure installation and is equipped with a 5-pin Euro-style M12 connector for straightforward connectivity. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a durable thermoplastic casing with an acrylic lens. With a protection rating of IP67 NEMA 6, it is well-suited for challenging environments. The QS30EQ operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and offers a sensing distance of up to 60 meters. It emits infrared (IR) light and boasts a rapid response time of 5ms (0.005 seconds), ensuring timely detection for automation applications.
Related documents QS30EQ Specs
