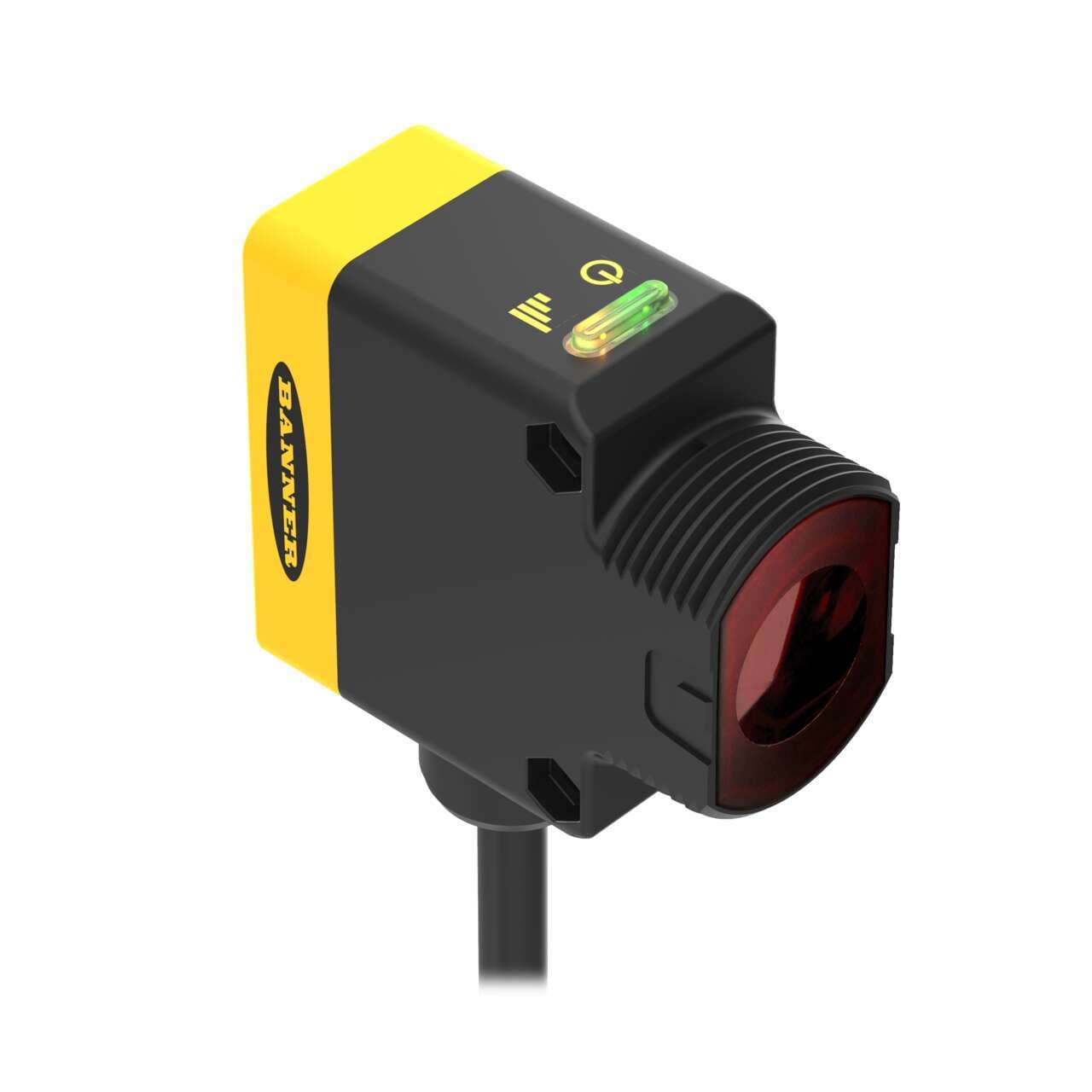

QS303E W/30 Banner Proximity Sensors
Part#:QS303E W/30
Manufacturer:Banner
Alt. Part#:73210
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM QS30 Series: Universal Voltage; Range: 60 m; Input: 12-250 V dc or 24-250 V ac; Output: Not Applicable; 9 m (30 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the QS303E W/30 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight607.81328 g
- Country Of OriginUS
- Max Sensing Distance (mm) 60000
- Output response time (ms) 15
- Repeatability (µs) N/A
- Opposed Mode Emitter/Receiver Emitter
- IO Link No
- Sensing Mode (General) Opposed
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 30
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Chemical Resistant No
- Outputs N/A
- Special Feature: Remote Teach No
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Power AC/DC Universal
- Connection Cable
- Special Feature: Water Detection No
- Adjustments N/A
- DeviceNet No
- Housing Style Rectangular w/M30 Mount
- Quick Disconnect Type No QD
- Lens Material Acrylic
- Feature: Audible No
- Cable Length (m) 9
- Power Supply/Supply Voltage 12-250 V dc or 24-250 V ac
- Delay at Power-up (ms) 100
- Indicator LEDs
- Sensing Beam Infrared LED
- Min Op. Temp. (°C) -20
- Number of Pins 2
- Feature: Hazardous Area No
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Sensing Mode (Detailed) Emitter
- Operation N/A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
QS303E W/30 Description
Banner Engineering QS303E W/30 is a photo-electric sensor designed for through-beam system applications, functioning as an emitter alone. It features an M30 threaded mount for secure installation and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads for easy connection. This sensor operates within an ambient air temperature range of -20 to +70°C and offers a sensing distance of up to 60m. It operates on a universal voltage range, accepting 24Vac-250Vac (with 200Vac / 220Vac / 240Vac nominal) and 12Vdc-250Vdc (with 24Vdc / 48Vdc / 120Vdc nominal), making it versatile for various power supplies. The QS303E W/30 is part of the QS30 universal voltage series and is housed in a durable thermoplastic with an acrylic lens, ensuring protection up to IP67 NEMA 6 standards against dust and water ingress. It emits infrared (IR) light and has a response time of 15ms / 0.015 s.
