WLS27XWR-430DSQ Banner Signal Towers
Part#:WLS27XWR-430DSQ
Manufacturer:Banner
Alt. Part#:802999
Product Lifecycle:Active
Get a quick Quote!
WLS27 Dual Color Light Strip; Length: 430 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White (100%) Red (100%); 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XWR-430DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight34.0194 g
- Country Of OriginMX
- Primary Housing Material FDA Copolyester
- Color Technology Standard LED
- Quick Disconnect Type M12 (Euro)
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Cable Length (m) 2
- Connection Integral QD
- Illuminated Length (LxWxH mm) 430.0
- Feature: Chemical Resistant Yes
- Product Size (mm) 27
- Color Option 1 White
- Min Op. Temperature (°C) -40
- Number of Input Pins/Conductors 4
- Wireless No
- Number of Colors / Segments 1
- Color Option 2 Red
- Supply Voltage 12-30 V dc
- Feature: Audible No
- Modbus RTU No
- Mounting Thread No Thread
- Power DC
- Lumens Color 2 165
- Max Op. Temperature (°C) 70
- Multi-Color Device Single Color On
- Power Source DC
- Dimming Option High-Low-Off
- Feature: Hazardous Area No
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Illumination Yes
- Environmental Rating IP66; IP67; IP69
- Lumens Color 1 975
- Max Current Color (mA) 1200
- IO Link No
- Housing Style Linear Strip
- Animation Option 1 Solid On
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Primary Window Material Copolyester Diffused
- Feature: Quick Disconnect Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 492.5
- Animation Option 2 Solid On
- Feature: Washdown Rated Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XWR-430DSQ Description

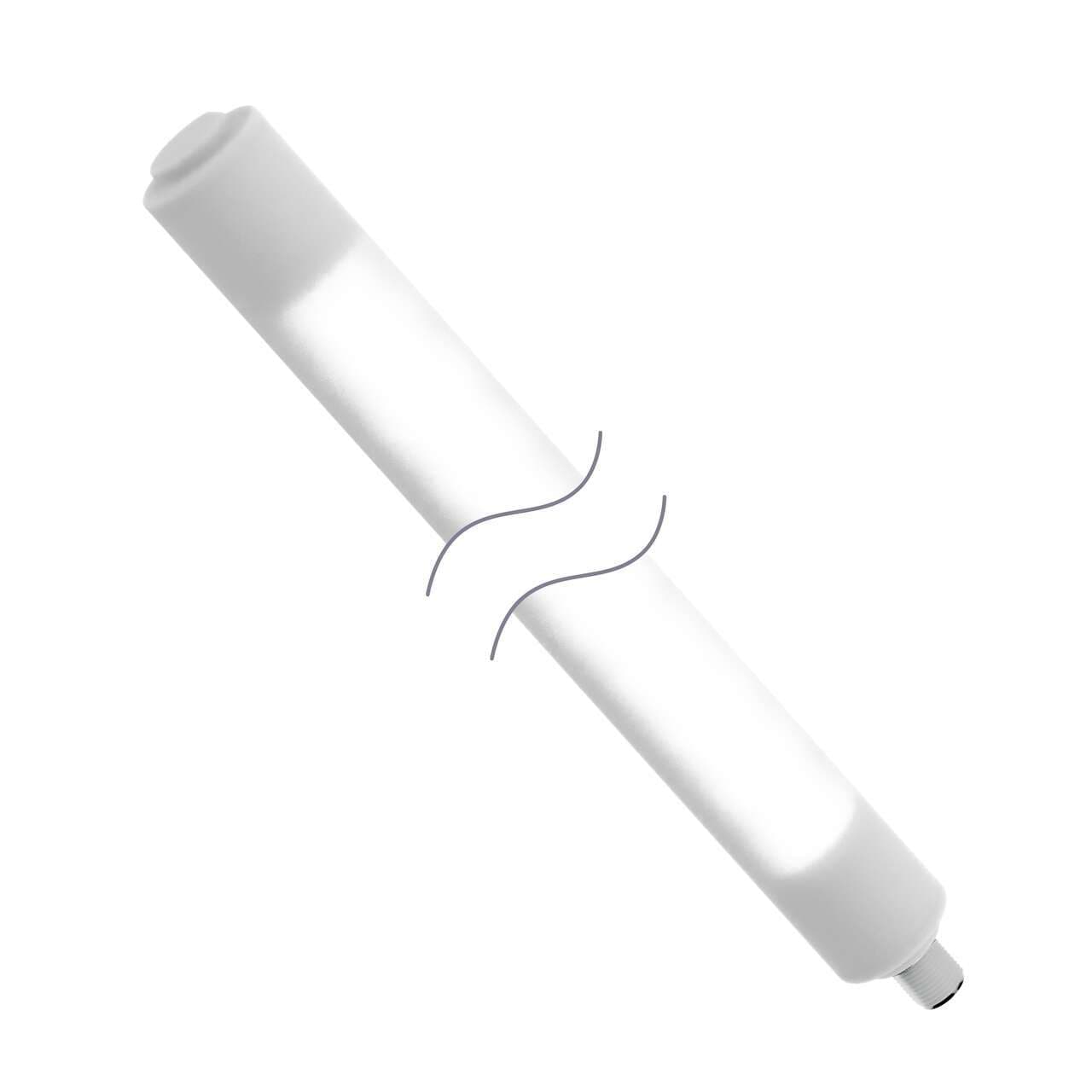

Banner Engineering WLS27XWR-430DSQ is a dual color series industrial sealed LED task light designed for a variety of applications. It features a diffused window with a 2-color white/red (W/R) color pattern LED illumination, suitable for tasks requiring clear visibility. This model operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 1.2A. The task light measures 430mm in length and 27mm in diameter, encased in a cylindrical linear strip shape. The copolyester diffused window and FDA-grade copolyester outer housing ensure durability and compliance with health standards. It is equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The WLS27XWR-430DSQ offers two digital inputs (12-30Vdc) for color control, allowing for versatile use in different settings. It boasts a high degree of protection with ratings of IP66, IP67, and IP69K, making it resistant to dust, water, and high-pressure washdowns. The ambient air temperature range for operation is from -40°C to +70°C, accommodating a wide range of environmental conditions.
Related documents WLS27XWR-430DSQ Specs
