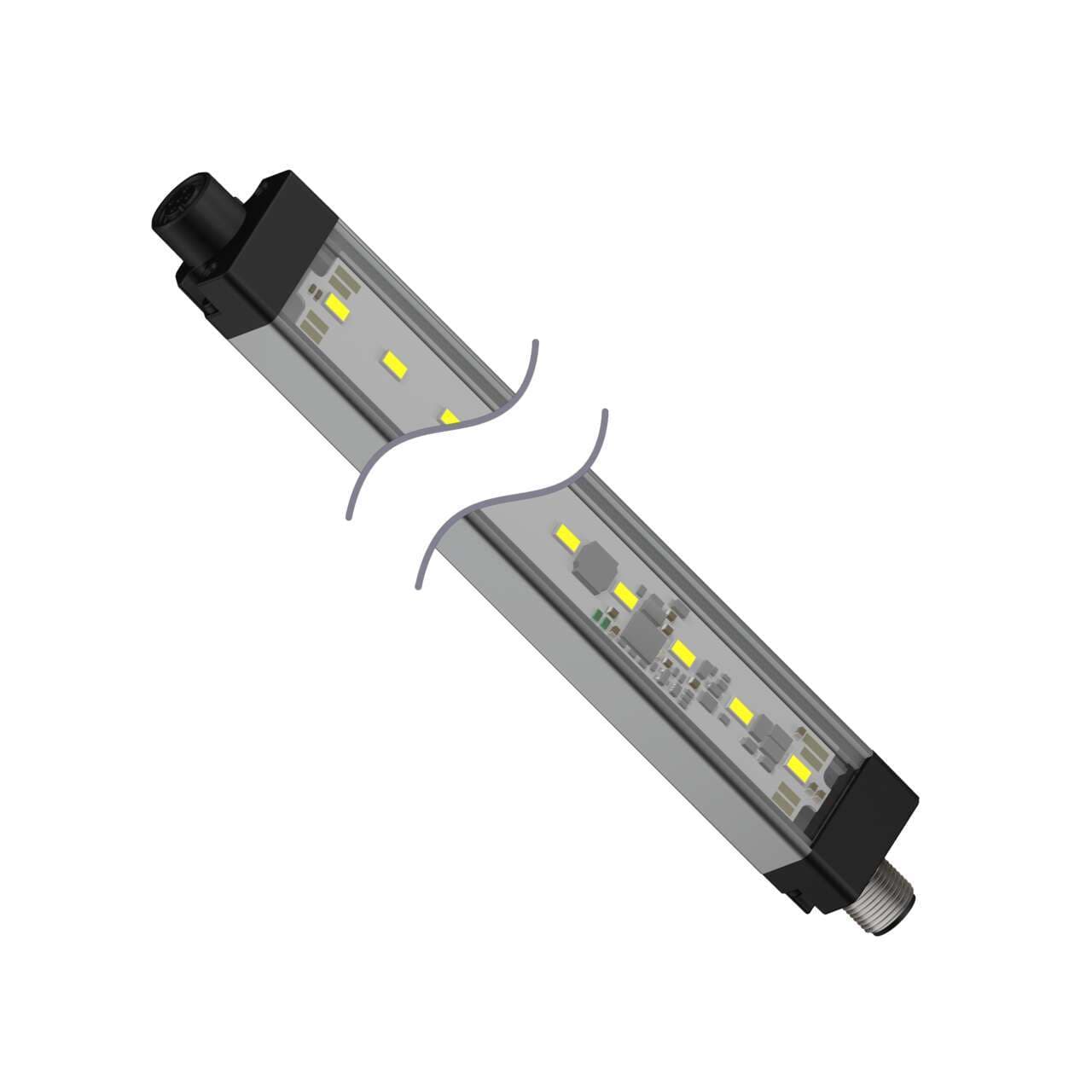

WLS28-2CW430DXQ Banner Light Bars
Part#:WLS28-2CW430DXQ
Manufacturer:Banner
Alt. Part#:87812
Product Lifecycle:Active
In-stock parts: 4
Jun 19, 2025
WLS28-2 Work Light Strip; Diffuse Window; Length: 430 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS28-2CW430DXQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight418.665416 g
- Country Of OriginMX
- Mounting Thread No Thread
- Dimming Option High-Low-Off
- Feature: Hazardous Area No
- Product Size (mm) 28
- Supply Voltage 12-30 V dc
- Illumination Yes
- Animation Option 1 Solid On
- Environmental Rating IP50
- Number of Colors / Segments 1
- Number of Input Pins/Conductors 4
- Feature: Audible No
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 476.0 x 28.0 x 20.9
- Feature: Cascade Yes
- Power Source DC
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Color Option 1 White
- Storage Temp (°C) -40 to 70
- Housing Style Linear Strip
- Lumens Color 1 900
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant No
- Max Op. Temperature (°C) 70
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Wireless No
- Primary Housing Material Aluminum
- Illuminated Length (LxWxH mm) 430.0
- Power DC
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Quick Disconnect Type M12 (Euro)
- IO Link No
- Connection Integral QD
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS28-2CW430DXQ Description
Banner Engineering WLS28-2CW430DXQ is a cascadable LED industrial strip light/bar designed for task lighting applications. It features a diffused plastic window for 1-color Cool White (W) LED illumination and operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L430mm x W28mm, and it is constructed with a polycarbonate (PC) window and an aluminium housing. This linear light strip is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. It has an IP50 degree of protection, making it suitable for surface or wall mounting. The ambient air temperature for operation ranges from -40°C to +70°C. Additionally, it includes 1 x digital input (12-30Vdc) for color control and offers a luminous flux of 900 lm (lumens).
Related documents WLS28-2CW430DXQ Specs
