WLS27XGR-850DSQ Banner Signal Towers
Part#:WLS27XGR-850DSQ
Manufacturer:Banner
Alt. Part#:801116
Product Lifecycle:Active
In-stock parts: 2
Jun 19, 2025
WLS27 Dual Color Light Strip; Length: 850 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: Green (100%) Red (100%); 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XGR-850DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight680.388 g
- Country Of OriginMX
- Cable Length (m) 2
- Product Size (mm) 27
- Animation Option 2 Solid On
- Primary Window Material Copolyester Diffused
- Multi-Color Device Single Color On
- Color Option 1 Green
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Max Op. Temperature (°C) 70
- Wireless No
- Power DC
- Lumens Color 1 900
- Supply Voltage 12-30 V dc
- Feature: Hazardous Area No
- Primary Housing Material FDA Copolyester
- Animation Option 1 Solid On
- Max Current Color (mA) 2400
- Min Op. Temperature (°C) -40
- Number of Colors / Segments 2
- Quick Disconnect Type M12 (Euro)
- Illuminated Length (LxWxH mm) 850.0
- Feature: Washdown Rated Yes
- Power Source DC
- Color Technology Standard LED
- Lumens Color 2 600
- Environmental Rating IP66; IP67; IP69
- Housing Style Linear Strip
- Connection Integral QD
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 914.5
- Feature: Chemical Resistant Yes
- Mounting Thread No Thread
- Illumination Yes
- Color Option 2 Red
- Storage Temp (°C) -40 to 70
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Number of Input Pins/Conductors 4
- Feature: Audible No
- IO Link No
- Pro-Editor Compatible (Discrete) No
- Feature: Quick Disconnect Yes
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XGR-850DSQ Description

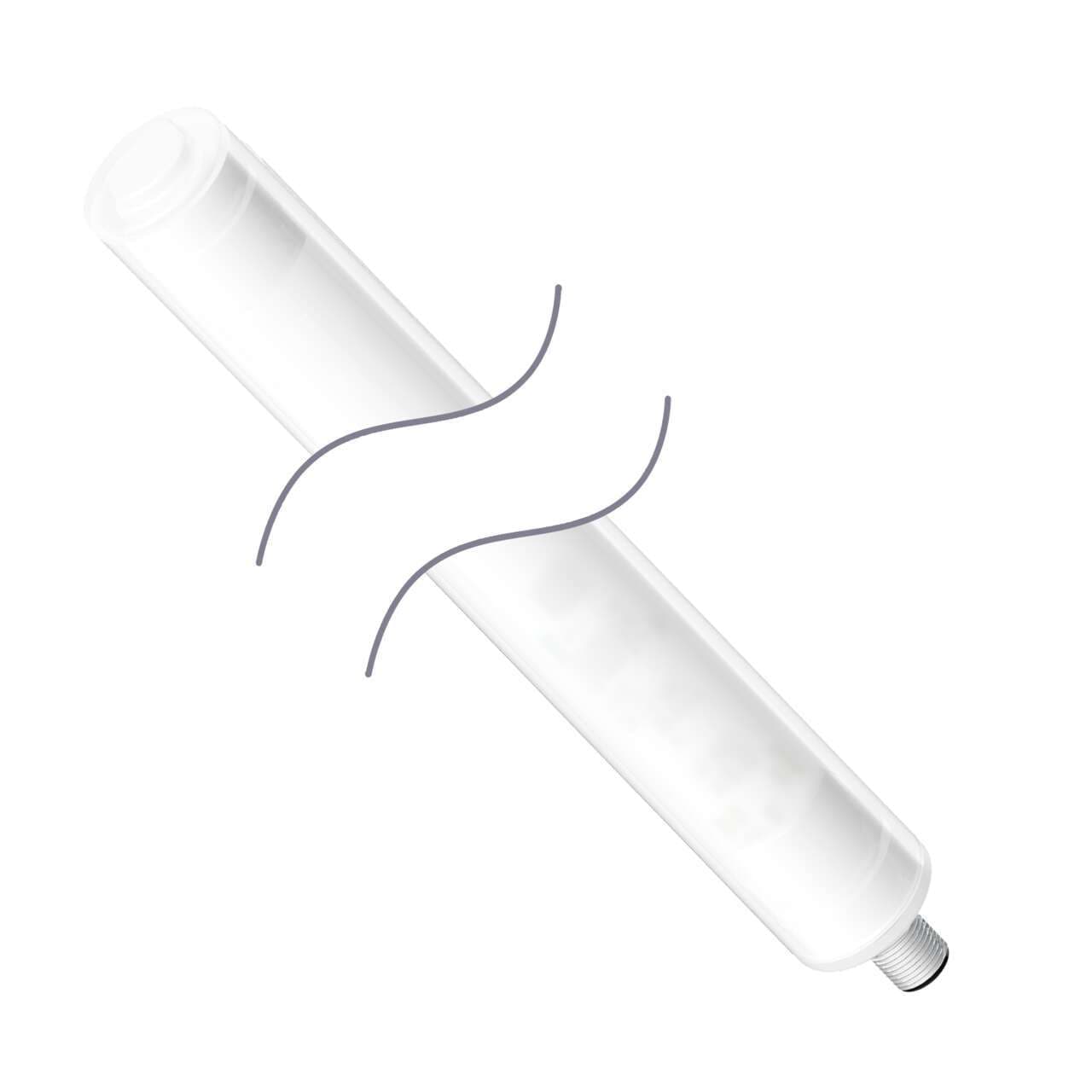

Banner Engineering WLS27XGR-850DSQ is a dual color series industrial sealed LED task light designed for a variety of applications. It features a diffused window with a 2-color G/R color pattern LED illumination, suitable for tasks requiring clear visibility. The light operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has dimensions of L850mm x D27mm. The cylindrical linear strip is made from FDA-grade copolyester for both the diffused window and the outer housing, ensuring durability and compliance with health standards. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. The WLS27XGR-850DSQ offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it suitable for use in harsh environments. It can operate in ambient air temperatures ranging from -40°C to +70°C. The task light includes 2 digital inputs (12-30Vdc) for color control and has a current consumption of 2.4A. It provides a luminous flux of 900 lumens, ensuring adequate lighting for a wide range of industrial tasks.
Related documents WLS27XGR-850DSQ Specs
