WLS27CWGRYB5-0285DS24Q Banner Signal Towers
Part#:WLS27CWGRYB5-0285DS24Q
Manufacturer:Banner
Alt. Part#:802093
Product Lifecycle:Active
In-stock parts: 8
Jun 19, 2025
WLS27 Multicolor Light Strip; Length: 285 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White, Green, Red, Yellow, Blue; Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27CWGRYB5-0285DS24Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight272.1552 g
- Country Of OriginMX
- Mounting Thread No Thread
- Feature: Washdown Rated Yes
- Primary Housing Material FDA Copolyester
- Color Technology Standard LED
- Animation Option 3 Solid On
- Animation Option 5 Solid On
- Primary Window Material Copolyester Diffused
- Pro-Editor Compatible (Discrete) No
- Indication Yes
- Connection Integral QD
- Animation Option 2 Solid On
- Color Option 5 Blue
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant Yes
- Illumination Yes
- Color Option 1 White
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Color 5 - Wavelength/Color Temp/Coordinates 470 nm
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 360.0
- Feature: Quick Disconnect Yes
- Power Source DC
- Animation Option 1 Solid On
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Color 4 - Wavelength/Color Temp/Coordinates 580 nm
- Environmental Rating IP66; IP67; IP69
- Feature: Audible No
- Power DC
- Lumens Color 1 650
- Lumens Color 2 400
- Lumens Color 5 125
- Illuminated Length (LxWxH mm) 285.0
- Wireless No
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Color Option 2 Green
- Color Option 4 Yellow
- Max Current Color (mA) 400
- Storage Temp (°C) -40 to 70
- Multi-Color Device Single Color On
- Housing Style Linear Strip
- Quick Disconnect Type M12 (Euro)
- Lumens Color 3 185
- Supply Voltage 24 V dc
- Feature: Hazardous Area No
- IO Link No
- Number of Colors / Segments 5
- Color Option 3 Red
- Lumens Color 4 570
- Max Op. Temperature (°C) 50
- Feature: Cascade Yes
- Animation Option 4 Solid On
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Product Size (mm) 27
- Number of Input Pins/Conductors 4
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27CWGRYB5-0285DS24Q Description

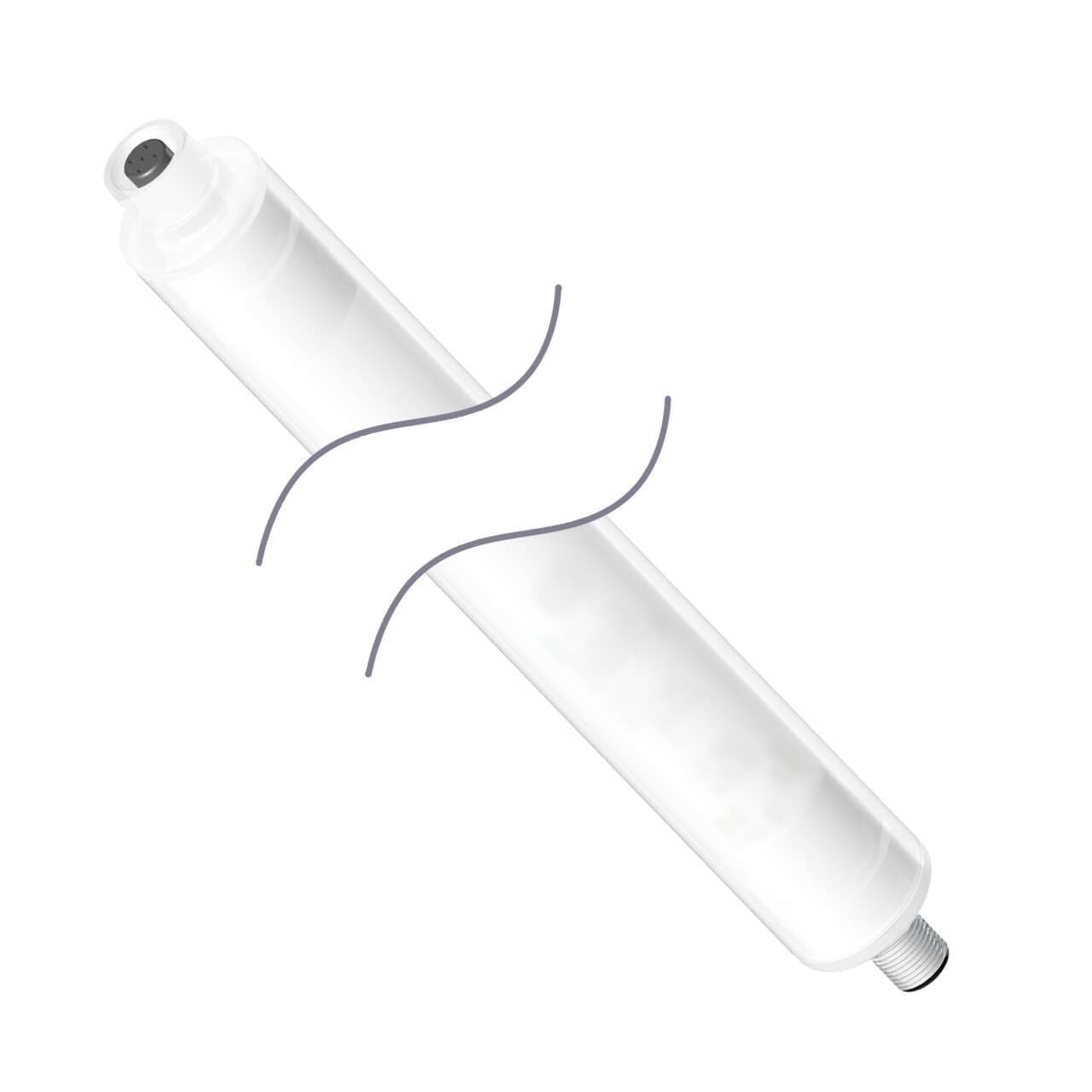

Banner Engineering WLS27CWGRYB5-0285DS24Q is a task light from the EZ-STATUS series designed for harsh environments. This product features a shatterproof LED strip light with a binary control diffused window, capable of cascading 5-color (White/Green/Red/Yellow/Blue) LED illumination within a black housing. It operates on a 24Vdc supply voltage and measures L285mm x D27mm. The material used includes an anodized aluminum inner housing and FDA-grade copolyester outer housing, forming a 27mm diameter tube. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The cylindrical linear strip shape of this product is complemented by a high degree of protection, rated at IP66, IP67, and IP69K, making it suitable for operation in ambient air temperatures ranging from -40°C to +50°C. Additionally, it features 3 x digital inputs (24Vdc) for color control.
Related documents WLS27CWGRYB5-0285DS24Q Specs
