WLS27PXRGBW1130DSKQ Banner Signal Towers
Part#:WLS27PXRGBW1130DSKQ
Manufacturer:Banner
Alt. Part#:807475
Product Lifecycle:Active
In-stock parts: 29
Jun 18, 2025

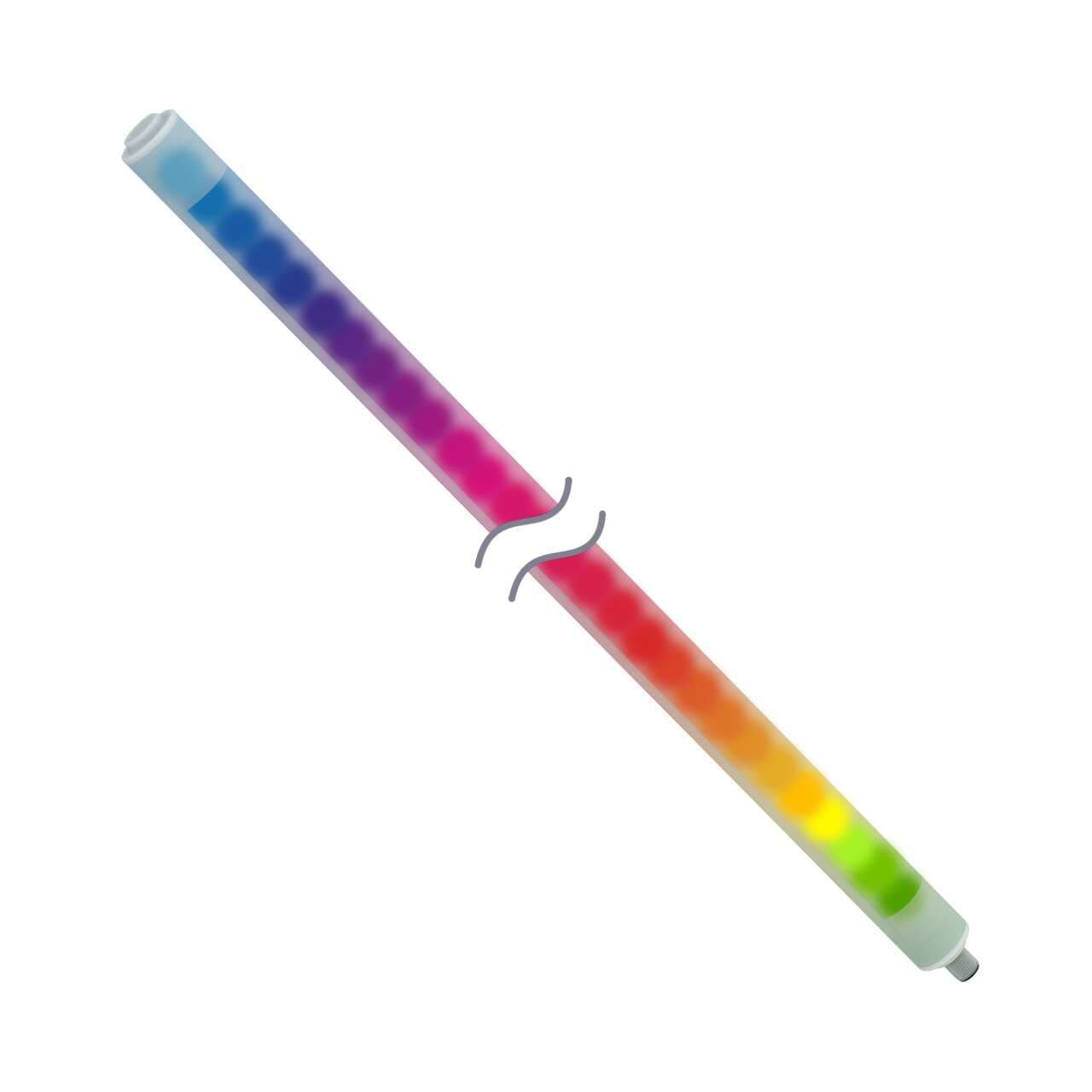

WLS27 Pro Light Strip with IO-Link; Diffuse Window; Length: 1130 mm; Voltage: 18-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: RGBW; Non-Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27PXRGBW1130DSKQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight861.8248 g
- Country Of OriginMX
- Power DC
- Connection Integral QD
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 1183.5
- Feature: Audible No
- Power Source DC
- Color Option 1 RGBW
- Illuminated Length (LxWxH mm) 1130.0
- Indication Intensity High Brightness & Daylight Visible
- Indication Yes
- Animation Option 1 IO-Link Controlled
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Color Input Control Communication Protocol
- Color Technology RGB IO-Link
- Wire Selectable Function Programmable
- Min Op. Temperature (°C) -40
- Wireless No
- Illumination Yes
- Supply Voltage 18-30 V dc
- Feature: Washdown Rated Yes
- IO Link Yes
- Mounting Thread No Thread
- Number of Tower Light Segments Programmable
- Max Current Color (mA) 2200
- Input Type Communication Protocol
- Number of Colors / Segments Programmable
- Dimming Option IO-Link Controlled
- Primary Window Material Copolyester Diffused
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material FDA Copolyester
- Quick Disconnect Type M12 (Euro)
- Number of Input Pins/Conductors 4
- Environmental Rating IP66; IP67; IP69
- Housing Style Linear Strip
- Product Size (mm) 27
- Max Input Response Time (ms) 45
- Storage Temp (°C) -40 to 70
- Multi-Color Device Simultaneous Colors On
- Feature: Hazardous Area No
- Feature: Chemical Resistant Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27PXRGBW1130DSKQ Description
WLS27 Pro Light Strip with IO-Link; Diffuse Window; Length: 1130 mm, Voltage: 18-30 V dc; Environmental Rating: IP66; IP67; IP69K, Color: RGBW; Non-Cascadable, Euro 4-pin Quick Disconnect
