WLS28-2CWGRYB5-0285X24Q Banner Light Bars
Part#:WLS28-2CWGRYB5-0285X24Q
Manufacturer:Banner
Alt. Part#:804663
Product Lifecycle:Active
In-stock parts: 2
Jun 19, 2025
WLS28-2 Multicolor Light Strip; Length: 285 mm; Voltage: 24 V dc; Environmental Rating: IP50; Colors: White Green Red Yellow Blue; Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS28-2CWGRYB5-0285X24Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight335.65808 g
- Country Of OriginMX
- Primary Housing Material Aluminum
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Lumens Color 5 125
- Feature: Hazardous Area No
- Wireless No
- Power Source DC
- Animation Option 1 Solid On
- Lumens Color 3 185
- Color Option 5 Blue
- Min Op. Temperature (°C) -40
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Color Option 2 Green
- Number of Input Pins/Conductors 4
- Primary Window Material Polycarbonate Clear
- Mounting Thread No Thread
- Color Technology Standard LED
- Lumens Color 2 400
- Lumens Color 4 570
- Max Op. Temperature (°C) 50
- Indication Yes
- Connection Integral QD
- Color Option 4 Yellow
- Supply Voltage 24 V dc
- Feature: Cascade Yes
- Housing Style Linear Strip
- Lumens Color 1 650
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Illuminated Length (LxWxH mm) 285.0
- Feature: Audible No
- Illumination Yes
- Quick Disconnect Type M12 (Euro)
- Color 4 - Wavelength/Color Temp/Coordinates 580 nm
- Environmental Rating IP50
- IO Link No
- Number of Colors / Segments 5
- Color Option 1 White
- Color Option 3 Red
- Max Current Color (mA) 400
- Storage Temp (°C) -40 to 70
- Power DC
- Product Size (mm) 28
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Color 5 - Wavelength/Color Temp/Coordinates 470 nm
- Physical Dimensions (LxWxH or DxH mm) 335.0 x 28.0 x 21.0
- Feature: Chemical Resistant No
- Multi-Color Device Single Color On
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS28-2CWGRYB5-0285X24Q Description

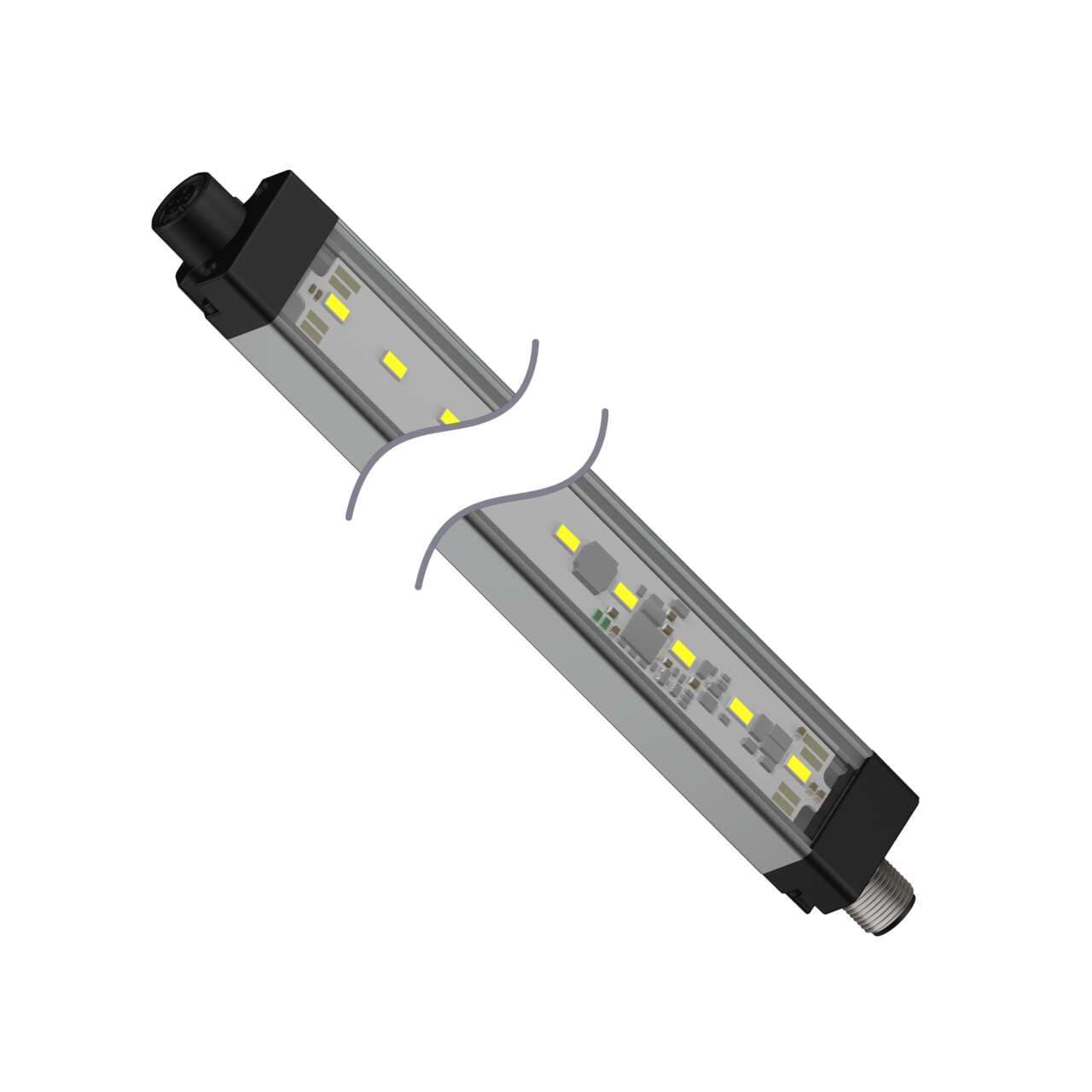

Banner Engineering WLS28-2CWGRYB5-0285X24Q is a task light from the EZ-STATUS series, designed as a cascadable multicolor LED industrial strip light/bar. It features binary control with a clear plastic window and a 5-color W/G/R/Y/B color pattern LED illumination, housed in black anodized aluminum with a polycarbonate window. This linear light strip operates on a 24Vdc supply voltage and measures L285mm x W28mm. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The part offers a degree of protection of IP50 and can operate in ambient air temperatures ranging from -40°C to +50°C. It also includes 3 x digital inputs (24Vdc) for color control.
Related documents WLS28-2CWGRYB5-0285X24Q Specs
