WLS27XW285DSQ Banner Signal Towers
Part#:WLS27XW285DSQ
Manufacturer:Banner
Alt. Part#:94275
Product Lifecycle:Active
In-stock parts: 4
Jun 19, 2025
WLS27 Work Light Strip; Diffused Window; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: White; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XW285DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight255.825888 g
- Country Of OriginMX
- Mounting Thread No Thread
- Supply Voltage 12-30 V dc
- Primary Window Material Copolyester Diffused
- Multi-Color Device Single Color On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power Source DC
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Storage Temp (°C) -40 to 70
- Feature: Chemical Resistant Yes
- Power DC
- Animation Option 1 Solid On
- Dimming Option High-Low-Off
- Max Op. Temperature (°C) 70
- IO Link No
- Number of Colors / Segments 1
- Color Technology Standard LED
- Min Op. Temperature (°C) -40
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 351.5
- Housing Style Linear Strip
- Quick Disconnect Type M12 (Euro)
- Lumens Color 1 800
- Feature: Hazardous Area No
- Product Size (mm) 27
- Color Option 1 White
- Illuminated Length (LxWxH mm) 285.0
- Feature: Washdown Rated Yes
- Wireless No
- Illumination Yes
- Connection Integral QD
- Max Current Color (mA) 800
- Feature: Audible No
- Primary Housing Material FDA Copolyester
- Number of Input Pins/Conductors 4
- Environmental Rating IP66; IP67; IP69
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XW285DSQ Description

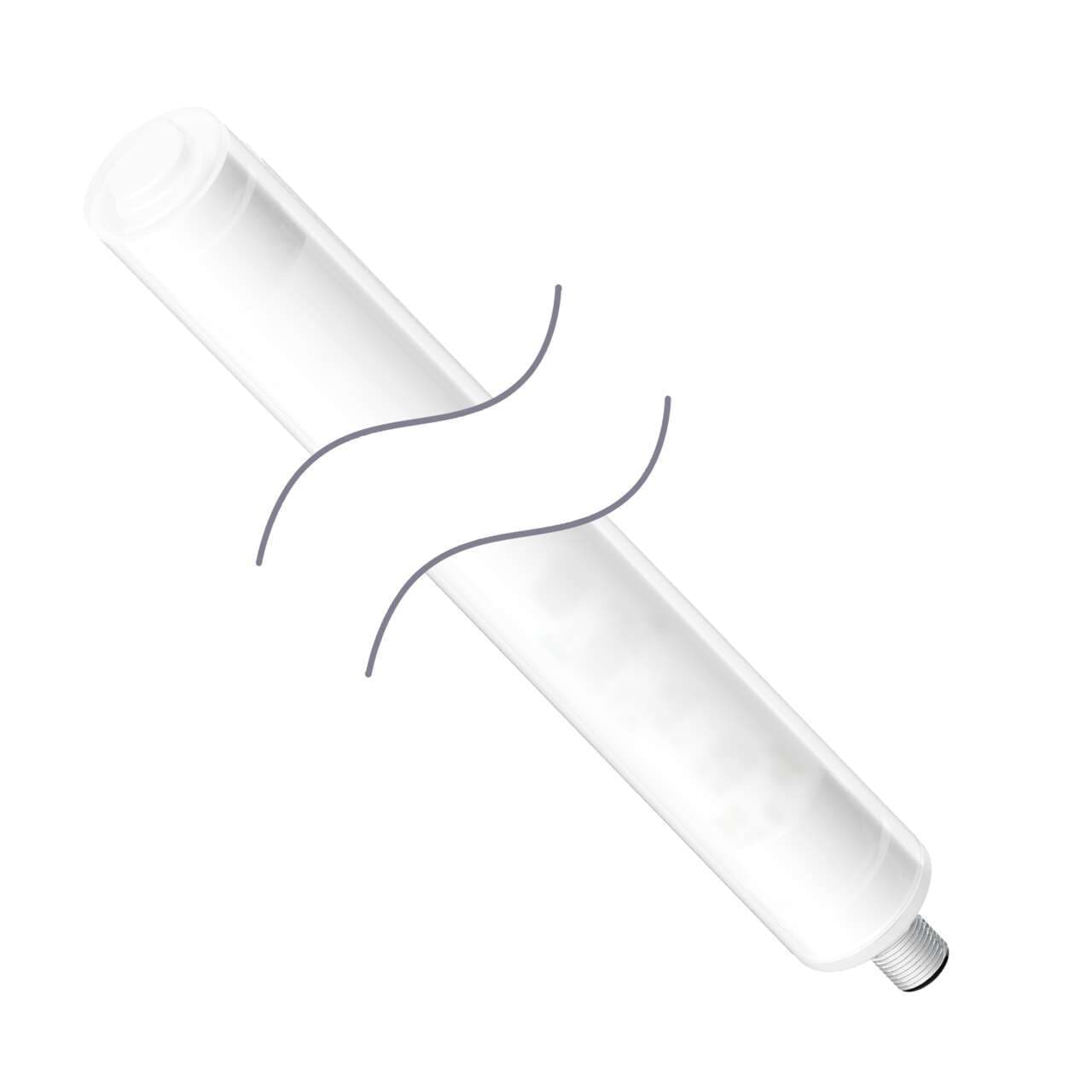

Banner Engineering WLS27XW285DSQ is a single color series industrial sealed LED task light designed for a variety of applications. This task light features a diffused window with 1-color white LED illumination, operating on a supply voltage range of 12Vdc to 30Vdc with a nominal 24Vdc. It measures 285mm in length and 27mm in diameter, encapsulated in a cylindrical linear strip shape. The construction includes a copolyester diffused window and FDA-grade copolyester outer housing, ensuring durability. It is pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The WLS27XW285DSQ offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it suitable for harsh environments. It operates efficiently within an ambient air temperature range of -40°C to +70°C. This model also features 1 x digital input (12-30Vdc) for color control, consumes 800mA of current, and provides a luminous flux of 800 lumens.
