WLS28-2XW285SQ Banner Light Bars
Part#:WLS28-2XW285SQ
Manufacturer:Banner
Alt. Part#:88083
Product Lifecycle:Active
In-stock parts: 4
Jun 19, 2025
WLS28-2 Work Light Strip; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: White; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS28-2XW285SQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight453.592 g
- Country Of OriginMX
- Product Size (mm) 28
- Dimming Option High-Low-Off
- Primary Window Material Polycarbonate Clear
- Number of Colors / Segments 1
- Lumens Color 1 800
- Min Op. Temperature (°C) -40
- Pro-Editor Compatible (Discrete) No
- Power DC
- Color Technology Standard LED
- Illuminated Length (LxWxH mm) 285.0
- Feature: Washdown Rated Yes
- Illumination Yes
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 326.0 x 28.0 x 20.9
- Power Source DC
- Color Option 1 White
- Supply Voltage 12-30 V dc
- Feature: Hazardous Area No
- Primary Housing Material Aluminum
- Animation Option 1 Solid On
- Max Op. Temperature (°C) 70
- Wireless No
- Mounting Thread No Thread
- Connection Integral QD
- Environmental Rating IP65; IP67; IP69
- Modbus RTU No
- Housing Style Linear Strip
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Input Pins/Conductors 4
- Storage Temp (°C) -40 to 70
- IO Link No
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS28-2XW285SQ Description

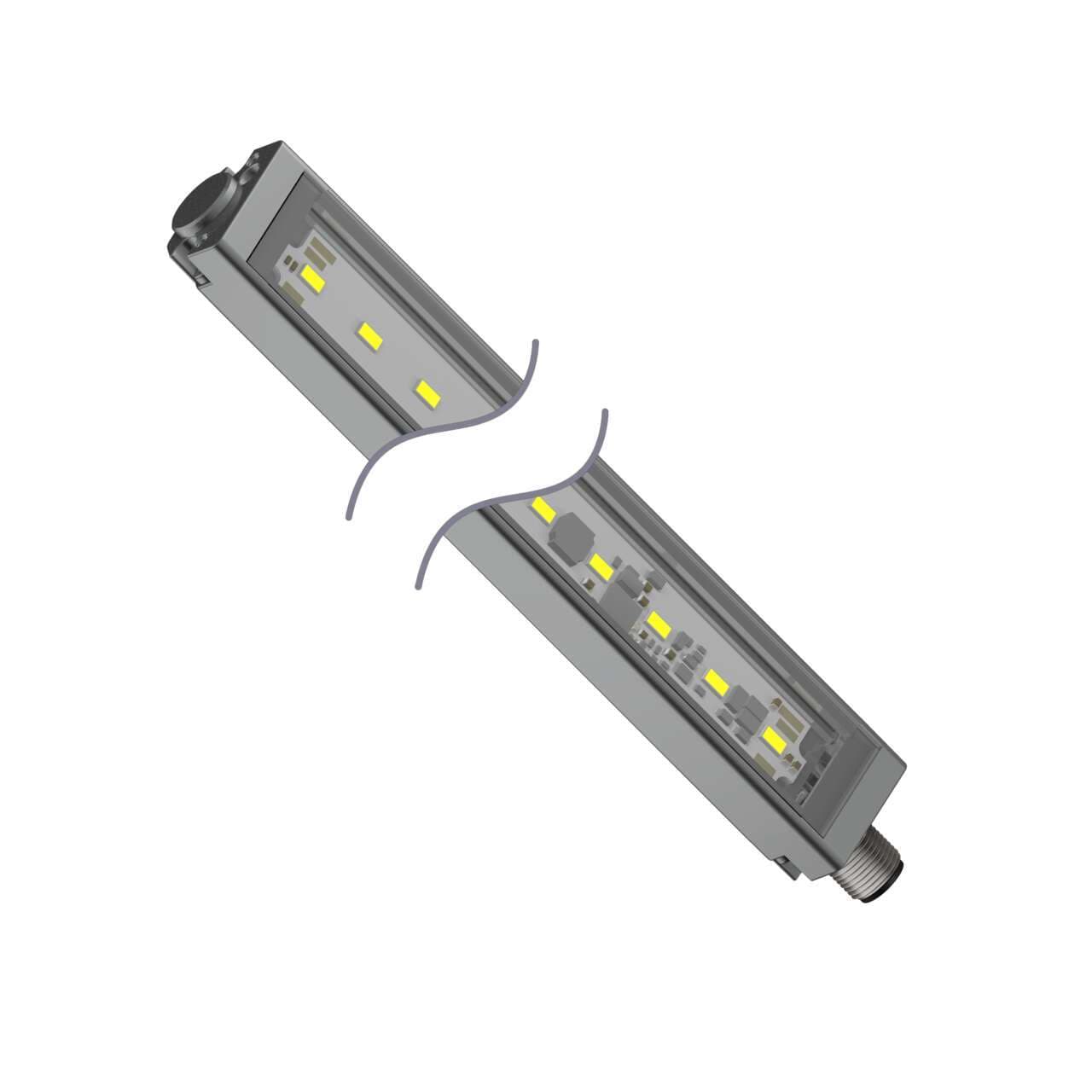

Banner Engineering WLS28-2XW285SQ is a sealed LED industrial strip light designed for task lighting applications. It features a clear plastic window with 1-color Cool White (W) LED illumination. The supply voltage ranges from 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. This product measures 285mm in length and 28mm in width. The window is made of Polycarbonate (PC), and it has an Anodized Aluminium housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style Quick Disconnect (QD) connector for easy installation. The linear light strip is designed for surface or wall mounting and offers a degree of protection rated at IP65, IP67, and IP69K, making it suitable for various industrial environments. It can operate in ambient air temperatures ranging from -40°C to +70°C. Additionally, it includes 1 x digital input (12-30Vdc) for color control.
Related documents WLS28-2XW285SQ Specs
