WLS27XWGRXX3-0285DS24Q Banner Signal Towers
Part#:WLS27XWGRXX3-0285DS24Q
Manufacturer:Banner
Alt. Part#:802019
Product Lifecycle:Active
Get a quick Quote!
WLS27 Multicolor Light Strip; Length: 285 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White, Green, Red; Non-Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XWGRXX3-0285DS24Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight263.8091072 g
- Country Of OriginMX
- Power Source DC
- Number of Colors / Segments 3
- Animation Option 2 Solid On
- Max Current Color (mA) 400
- Feature: Quick Disconnect Yes
- Housing Style Linear Strip
- Color Technology Standard LED
- Color Option 3 Red
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant Yes
- Illumination Yes
- Lumens Color 1 650
- Illuminated Length (LxWxH mm) 285.0
- Min Op. Temperature (°C) -40
- Indication Yes
- Product Size (mm) 27
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 351.5
- Multi-Color Device Single Color On
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Number of Input Pins/Conductors 4
- Feature: Audible No
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Integral QD
- Animation Option 3 Solid On
- Feature: Hazardous Area No
- Mounting Thread No Thread
- Quick Disconnect Type M12 (Euro)
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Storage Temp (°C) -40 to 70
- Power DC
- Color Option 1 White
- Lumens Color 3 185
- Feature: Washdown Rated Yes
- IO Link No
- Primary Housing Material FDA Copolyester
- Animation Option 1 Solid On
- Lumens Color 2 400
- Environmental Rating IP66; IP67; IP69
- Color Option 2 Green
- Supply Voltage 24 V dc
- Primary Window Material Copolyester Diffused
- Pro-Editor Compatible (Discrete) No
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XWGRXX3-0285DS24Q Description

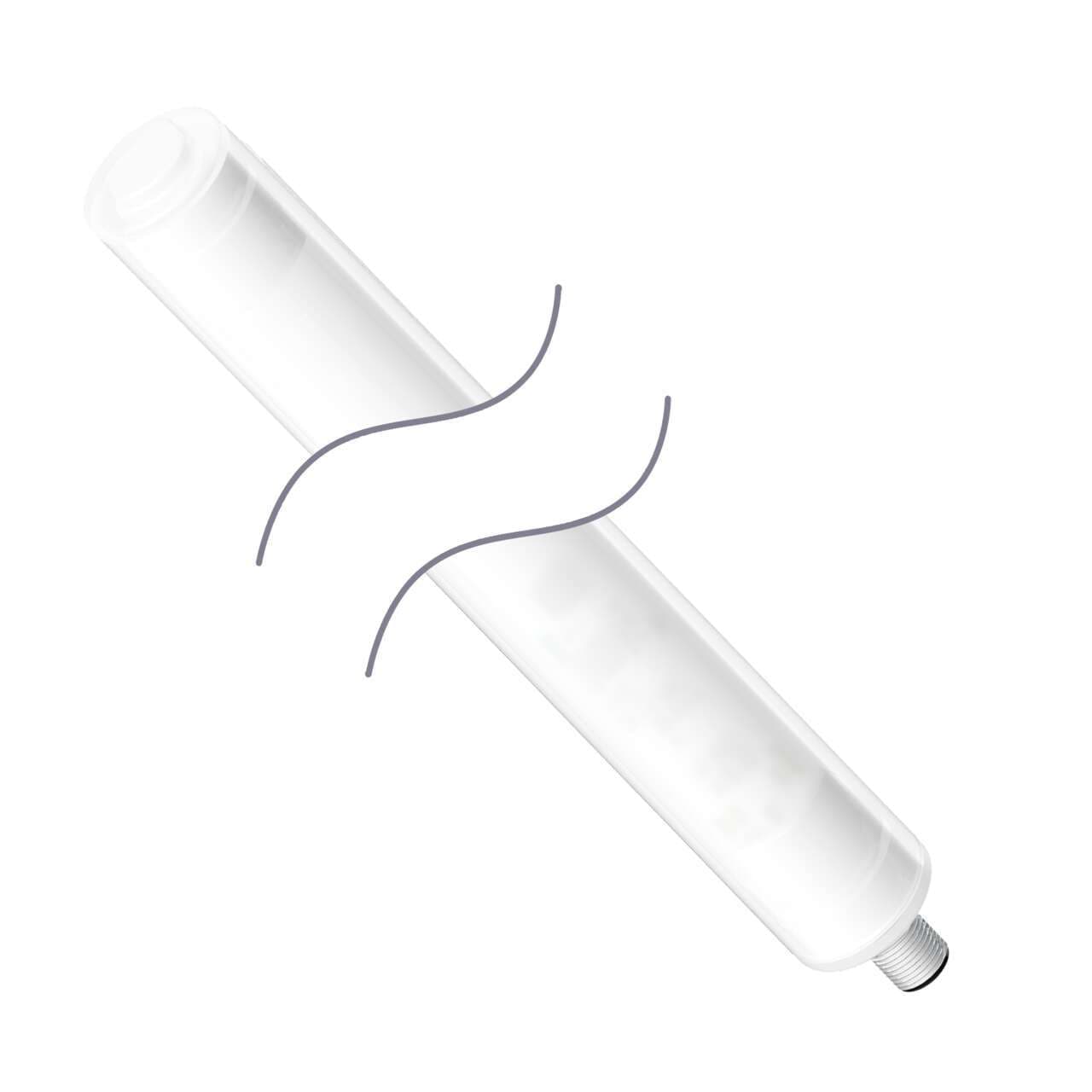

Banner Engineering WLS27XWGRXX3-0285DS24Q is a task light from the EZ-STATUS series designed for harsh environments. This shatterproof LED strip light features a diffused window with a 3-color W/G/R color pattern LED illumination housed in a black casing. It operates on a 24Vdc supply voltage and measures L285mm x D27mm. The light is constructed with an anodized aluminum inner housing and an FDA-grade copolyester outer housing, making it durable for various applications. The cylindrical linear strip has a 27mm diameter and is pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. It offers a high degree of protection with ratings of IP66, IP67, and IP69K, ensuring its performance in demanding conditions. The ambient air temperature for operation ranges from -40°C to +50°C. Additionally, it includes 3 x digital inputs (24Vdc) for color control, allowing for customization in signaling and task lighting applications.
