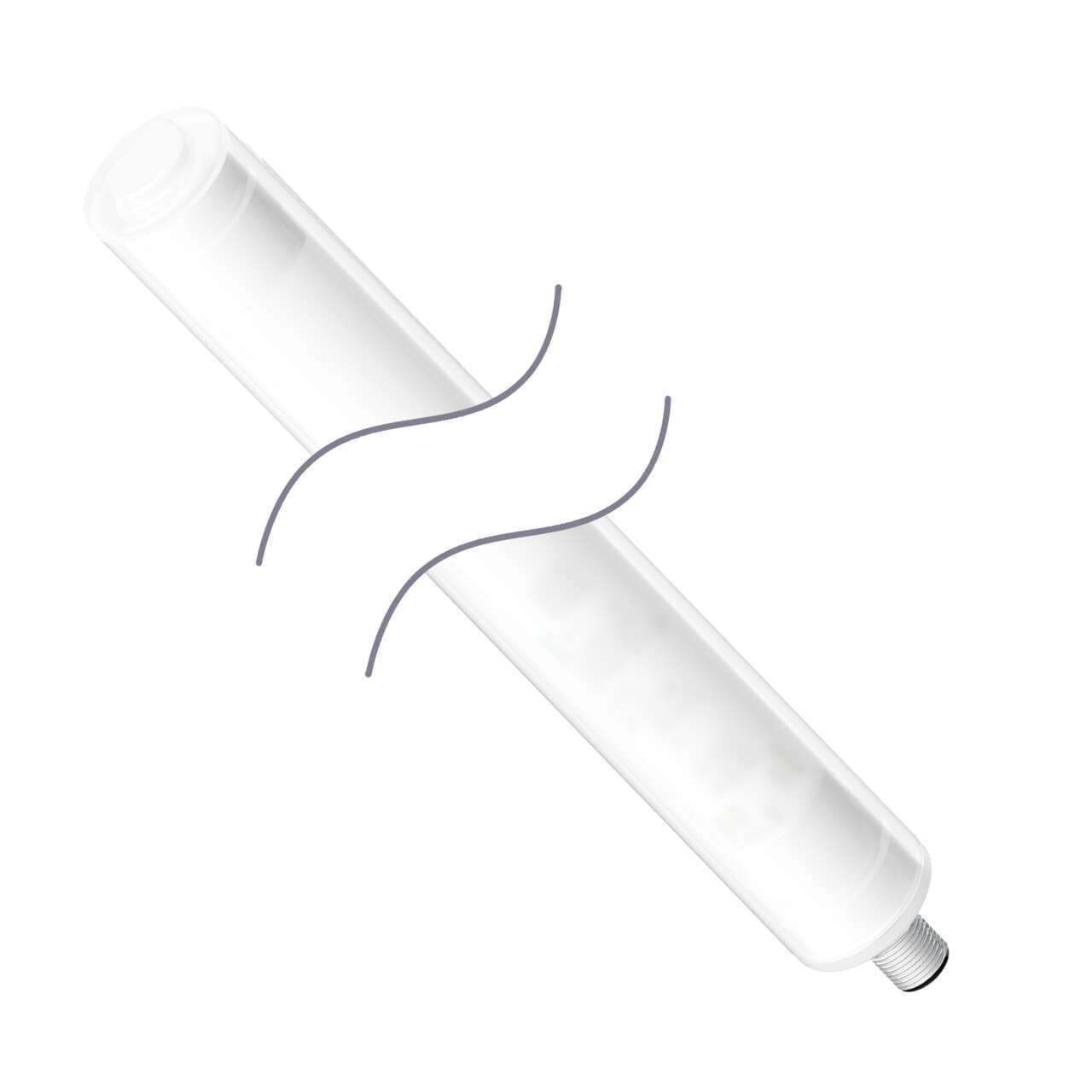

WLS27XW850DSPWMQ Banner Signal Towers
Part#:WLS27XW850DSPWMQ
Manufacturer:Banner
Alt. Part#:95866
Product Lifecycle:Active
Get a quick Quote!
WLS27 Work Light Strip; Diffused Window; Length: 850 mm; PWM Dimming; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: White; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XW850DSPWMQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight612.3492 g
- Country Of OriginMX
- Illumination Yes
- Color Technology Standard LED
- Lumens Color 1 2400
- Illuminated Length (LxWxH mm) 850.0
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Power DC
- Dimming Option PWM
- Number of Input Pins/Conductors 4
- Storage Temp (°C) -40 to 70
- Power Source DC
- Animation Option 1 Solid On
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- IO Link No
- Primary Housing Material FDA Copolyester
- Connection Integral QD
- Environmental Rating IP66; IP67; IP69
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 2400
- Max Op. Temperature (°C) 70
- Wireless No
- Product Size (mm) 27
- Mounting Thread No Thread
- Supply Voltage 12-30 V dc
- Feature: Chemical Resistant Yes
- Housing Style Linear Strip
- Number of Colors / Segments 1
- Quick Disconnect Type M12 (Euro)
- Feature: Washdown Rated Yes
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Color Option 1 White
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 914.5
- Modbus RTU No
- Primary Window Material Copolyester Diffused
- Feature: Quick Disconnect Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XW850DSPWMQ Description
Banner Engineering WLS27XW850DSPWMQ is a PWM dimmable series industrial sealed LED task light designed for a variety of applications requiring illumination. This task light features a diffused window for 1-color white LED illumination and operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It measures 850mm in length and 27mm in diameter, with the housing made from FDA-grade copolyester and a copolyester diffused window, ensuring durability and compliance for use in sensitive environments. The cylindrical linear strip is pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. It offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it suitable for use in harsh conditions. The ambient air temperature range for operation is from -40°C to +70°C. It includes 1 x digital input (12-30Vdc) for color control, consumes 2.4A of current, and provides a luminous flux of 2400 lumens, ensuring bright and effective lighting for tasks.
Related documents WLS27XW850DSPWMQ Specs
1-year warranty
