WLS27XW570DSQ Banner Signal Towers
Part#:WLS27XW570DSQ
Manufacturer:Banner
Alt. Part#:94277
Product Lifecycle:Active
Get a quick Quote!
WLS27 Work Light Strip; Diffused Window; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: White; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XW570DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight453.592 g
- Country Of OriginMX
- Power DC
- Animation Option 1 Solid On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 1600
- Environmental Rating IP66; IP67; IP69
- Multi-Color Device Single Color On
- Housing Style Linear Strip
- Lumens Color 1 1600
- Primary Window Material Copolyester Diffused
- Illumination Yes
- Connection Integral QD
- Storage Temp (°C) -40 to 70
- Wireless No
- Mounting Thread No Thread
- Dimming Option High-Low-Off
- Max Op. Temperature (°C) 70
- IO Link No
- Power Source DC
- Color Technology Standard LED
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 1
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Primary Housing Material FDA Copolyester
- Color Option 1 White
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 633.5
- Feature: Hazardous Area No
- Product Size (mm) 27
- Quick Disconnect Type M12 (Euro)
- Illuminated Length (LxWxH mm) 570.0
- Feature: Chemical Resistant Yes
- Supply Voltage 12-30 V dc
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XW570DSQ Description

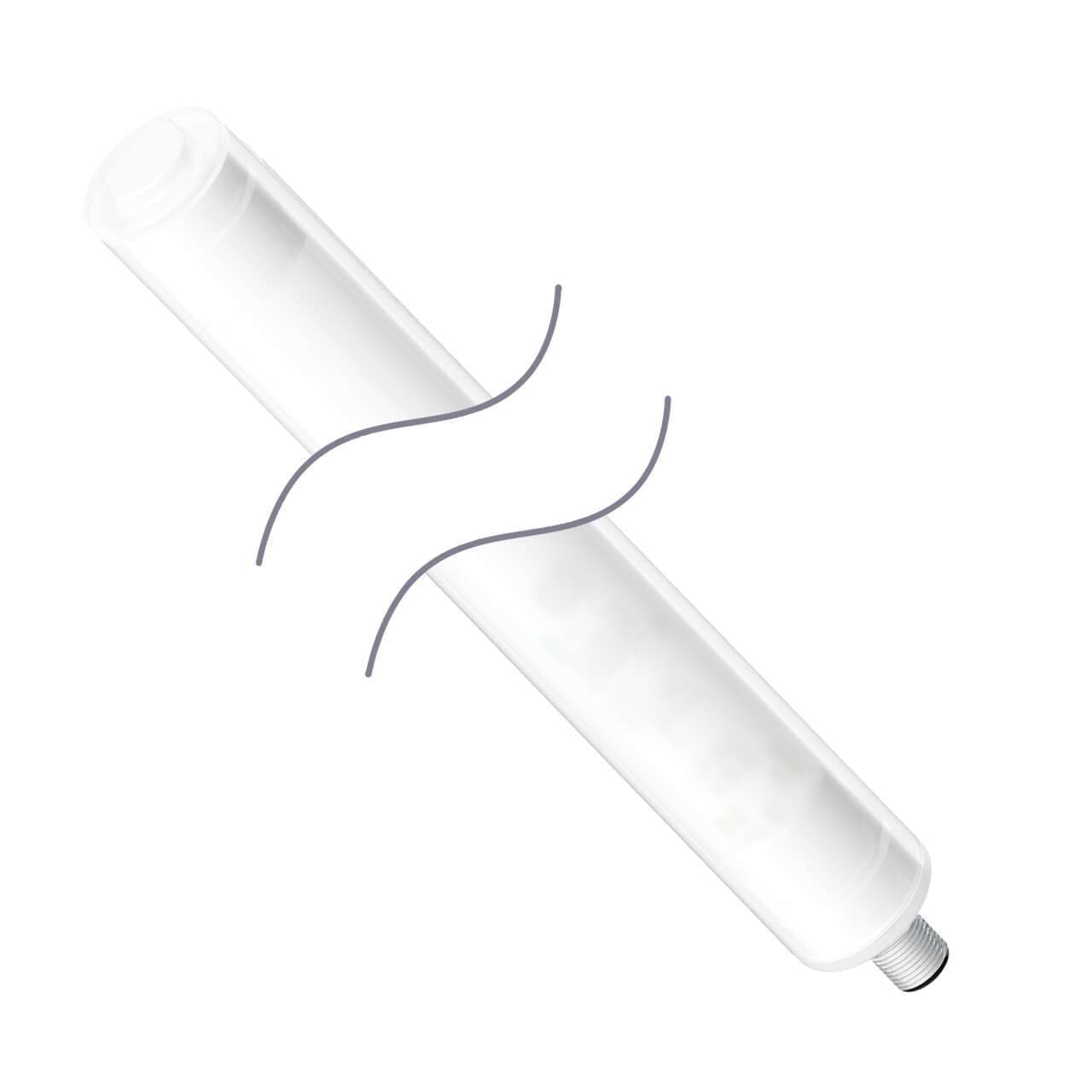

Banner Engineering WLS27XW570DSQ is a single color series industrial sealed LED task light designed for a variety of applications. This task light features a diffused window for 1-color White LED illumination and operates on a supply voltage of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It measures L570mm x D27mm, with a cylindrical linear strip shape and a 27mm tube diameter. The material used includes a copolyester diffused window and FDA-grade copolyester for the outer housing, ensuring durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. This model offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it suitable for harsh environments. It can operate in ambient air temperatures ranging from -40°C to +70°C. The WLS27XW570DSQ also features 1 x digital input (12-30Vdc) for color control, consumes 1.6A of current, and provides a luminous flux of 1600 lm (lumens).
