WLS27XGYRXX6-1130DS24Q Banner Signal Towers
Part#:WLS27XGYRXX6-1130DS24Q
Manufacturer:Banner
Alt. Part#:804339
Product Lifecycle:Active
Get a quick Quote!
WLS27 Multicolor Light Strip; I/O Block Control; Length: 1130 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: Green, Yellow, Red; Non-Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XGYRXX6-1130DS24Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight816.4656 g
- Country Of OriginMX
- Number of Colors / Segments 3
- Lumens Color 1 1600
- Supply Voltage 24 V dc
- Multi-Color Device Single Color On
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material FDA Copolyester
- Quick Disconnect Type M12 (Euro)
- Animation Option 3 Solid On
- Feature: Chemical Resistant Yes
- Indication Yes
- Product Size (mm) 27
- Lumens Color 2 2280
- Environmental Rating IP66; IP67; IP69
- Feature: Hazardous Area No
- Power DC
- Connection Integral QD
- Color Option 3 Red
- I/O Block Compatible Yes
- Storage Temp (°C) -40 to 70
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Color Option 1 Green
- Animation Option 2 Solid On
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Min Op. Temperature (°C) -40
- Power Source DC
- Color Option 2 Yellow
- Number of Input Pins/Conductors 4
- Wireless No
- Feature: Quick Disconnect Yes
- Illumination Yes
- Illuminated Length (LxWxH mm) 1130.0
- Color 2 - Wavelength/Color Temp/Coordinates 580 nm
- Primary Window Material Copolyester Diffused
- Housing Style Linear Strip
- Animation Option 1 Solid On
- Max Current Color (mA) 400
- IO Link No
- Mounting Thread No Thread
- Color Technology Standard LED
- Lumens Color 3 740
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 1183.5
- Feature: Audible No
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Op. Temperature (°C) 50
- Feature: Washdown Rated Yes
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XGYRXX6-1130DS24Q Description

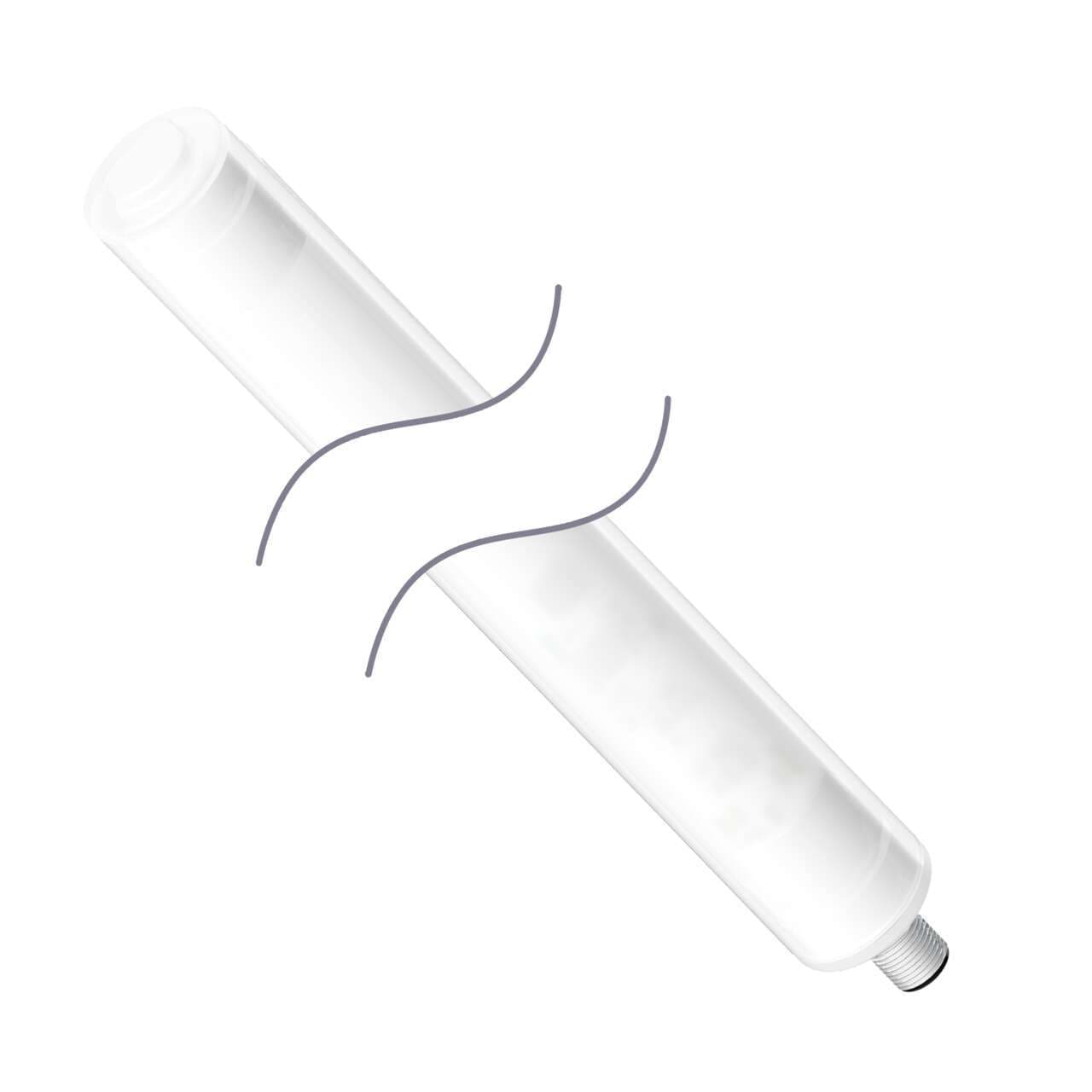

Banner Engineering WLS27XGYRXX6-1130DS24Q is a task light from the EZ-STATUS series designed for harsh environments. This shatterproof LED strip light features an I.O. block control with a diffused window and a 3-color G/Y/R color pattern LED illumination, housed in black. It operates on a 24Vdc supply voltage and measures L1130mm x D27mm. The material used includes an anodized aluminum inner housing and an FDA-grade copolyester outer housing, forming a 27mm diameter cylindrical linear strip. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. This product offers a high degree of protection with IP66, IP67, and IP69K ratings, ensuring its operation in ambient air temperatures ranging from -40°C to +50°C. It also features 3 x digital inputs (24Vdc) for color control.
