WLS27XGYRXX6-0570DS24Q Banner Signal Towers
Part#:WLS27XGYRXX6-0570DS24Q
Manufacturer:Banner
Alt. Part#:804337
Product Lifecycle:Active
Get a quick Quote!
WLS27 Multicolor Light Strip; I/O Block Control; Length: 570 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: Green, Yellow, Red; Non-Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XGYRXX6-0570DS24Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight435.44832 g
- Country Of OriginMX
- Power Source DC
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Animation Option 3 Solid On
- Feature: Audible No
- Wireless No
- Illumination Yes
- Connection Integral QD
- Max Current Color (mA) 800
- Supply Voltage 24 V dc
- Feature: Hazardous Area No
- Indication Yes
- Lumens Color 1 800
- Color Option 2 Yellow
- I/O Block Compatible Yes
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect Yes
- Mounting Thread No Thread
- Quick Disconnect Type M12 (Euro)
- Color 2 - Wavelength/Color Temp/Coordinates 580 nm
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Housing Style Linear Strip
- Animation Option 1 Solid On
- Color Option 3 Red
- Illuminated Length (LxWxH mm) 570.0
- Primary Window Material Copolyester Diffused
- Primary Housing Material FDA Copolyester
- Color Option 1 Green
- Lumens Color 2 1140
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 633.5
- Feature: Washdown Rated Yes
- IO Link No
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Product Size (mm) 27
- Number of Colors / Segments 3
- Lumens Color 3 370
- Environmental Rating IP66; IP67; IP69
- Feature: Chemical Resistant Yes
- Pro-Editor Compatible (Discrete) No
- Power DC
- Color Technology Standard LED
- Animation Option 2 Solid On
- Number of Input Pins/Conductors 4
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XGYRXX6-0570DS24Q Description

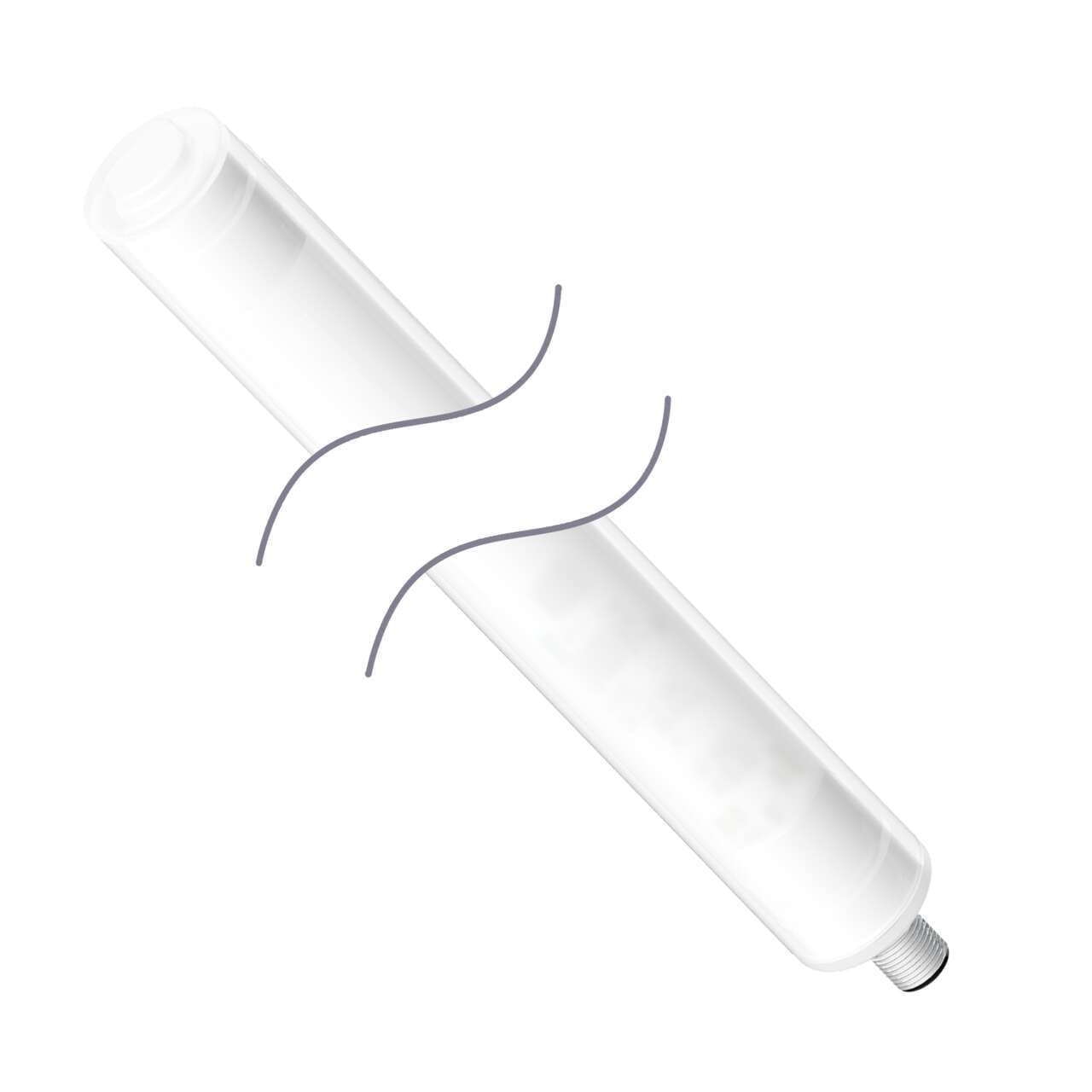

Banner Engineering WLS27XGYRXX6-0570DS24Q is a task light from the EZ-STATUS series designed for harsh environments. This shatterproof LED strip light features an I.O. block control with a diffused window and a 3-color G/Y/R color pattern LED illumination, housed in a black anodized aluminum inner housing with an FDA-grade copolyester outer housing. It operates on a 24Vdc supply voltage and measures L570mm x D27mm with a 27mm tube diameter. The light is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. Its cylindrical linear strip shape is engineered to withstand ambient air temperatures ranging from -40°C to +50°C. With an IP66, IP67, and IP69K degree of protection, it is well-suited for demanding environments. The device also features 3 x digital inputs (24Vdc) for color control.
