WLS27PXRGBW285DSQ Banner Signal Towers

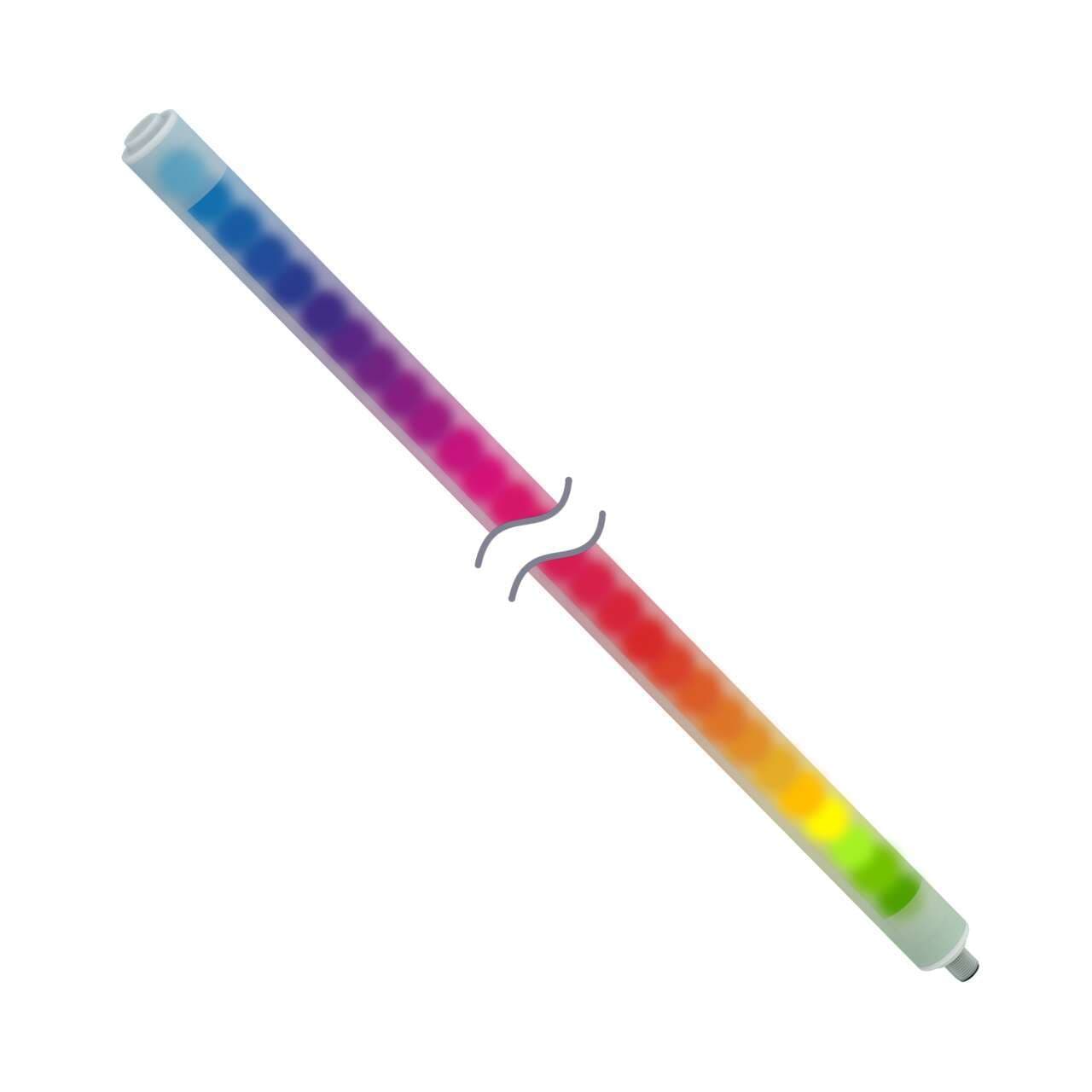

Banner WLS27PXRGBW285DSQ WLS27 Pro Light Strip; Diffuse Window; Length: 285 mm; Voltage: 18-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: RGBW; Non-Cascadable; 4-pin M12 Integral QD
Banner

Part#:WLS27PXRGBW285DSQ

Manufacturer:Banner

Alt. Part#:807458

Product Lifecycle:Active

Get a quick Quote!

WLS27 Pro Light Strip; Diffuse Window; Length: 285 mm; Voltage: 18-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: RGBW; Non-Cascadable; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS27PXRGBW285DSQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight255.825888 g
  • Country Of OriginMX
  • Power
    DC
  • Color Option 1
    RGBW
  • I/O Block Compatible
    Yes
  • Indication
    Yes
  • Product Size (mm)
    27
  • Quick Disconnect Type
    M12 (Euro)
  • Environmental Rating
    IP66; IP67; IP69
  • Indication Intensity
    High Brightness & Daylight Visible
  • Housing Style
    Linear Strip
  • Animation Option 1
    See Configuration File
  • Supply Voltage
    18-30 V dc
  • Primary Window Material
    Copolyester Diffused
  • Color Input Control
    Multiple (One or more wires/color, enables more colors than input wires)
  • Number of Tower Light Segments
    Programmable
  • Max Input Response Time (ms)
    300
  • Primary Housing Material
    FDA Copolyester
  • Color Technology
    RGB Configurable
  • Number of Input Pins/Conductors
    4
  • Pro-Editor Compatible (Discrete)
    Yes
  • Power Source
    DC
  • Max Current Color (mA)
    550
  • Storage Temp (°C)
    -40 to 70
  • IO Link
    No
  • Illumination
    Yes
  • Connection
    Integral QD
  • Illuminated Length (LxWxH mm)
    285.0
  • Feature: Washdown Rated
    Yes
  • PFM Input
    Yes
  • Wire Selectable Function
    Programmable
  • Physical Dimensions (LxWxH or DxH mm)
    27.0 x 351.5
  • Feature: Audible
    No
  • Min Op. Temperature (°C)
    -40
  • Wireless
    No
  • Mounting Thread
    No Thread
  • Number of Colors / Segments
    19
  • Dimming Option
    Programmable
  • Max Op. Temperature (°C)
    50
  • Modbus RTU
    No
  • Feature: Chemical Resistant
    Yes
  • Multi-Color Device
    Simultaneous Colors On
  • Feature: Hazardous Area
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLS27PXRGBW285DSQ Description

WLS27 Pro Light Strip; Diffuse Window; Length: 285 mm, Voltage: 18-30 V dc; Environmental Rating: IP66; IP67; IP69K, Color: RGBW; Non-Cascadable, Euro 4-pin Quick Disconnect

Related documents WLS27PXRGBW285DSQ Specs

WLS27PXRGBW285DSQ 206059.pdf
