WLS27CWW990DSQ Banner Signal Towers
Part#:WLS27CWW990DSQ
Manufacturer:Banner
Alt. Part#:95971
Product Lifecycle:Active
Get a quick Quote!
WLS27 Work Light Strip; Diffused Window; Length: 990 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: Warm White; Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27CWW990DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight771.1064 g
- Country Of OriginMX
- Illumination Yes
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
- Mounting Thread No Thread
- Connection Integral QD
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Housing Style Linear Strip
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 1065.5
- Feature: Audible No
- Wireless No
- Cable Length (m) 2
- Lumens Color 1 2800
- Environmental Rating IP66; IP67; IP69
- IO Link No
- Power DC
- Color 1 - Wavelength/Color Temp/Coordinates 3000K (Warm)
- Dimming Option High-Low-Off
- Primary Window Material Copolyester Diffused
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 2800
- Illuminated Length (LxWxH mm) 990.0
- Multi-Color Device Single Color On
- Number of Colors / Segments 1
- Product Size (mm) 27
- Supply Voltage 12-30 V dc
- Feature: Cascade Yes
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Min Op. Temperature (°C) -40
- Feature: Hazardous Area No
- Primary Housing Material FDA Copolyester
- Color Option 1 White
- Max Op. Temperature (°C) 70
- Feature: Chemical Resistant Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27CWW990DSQ Description

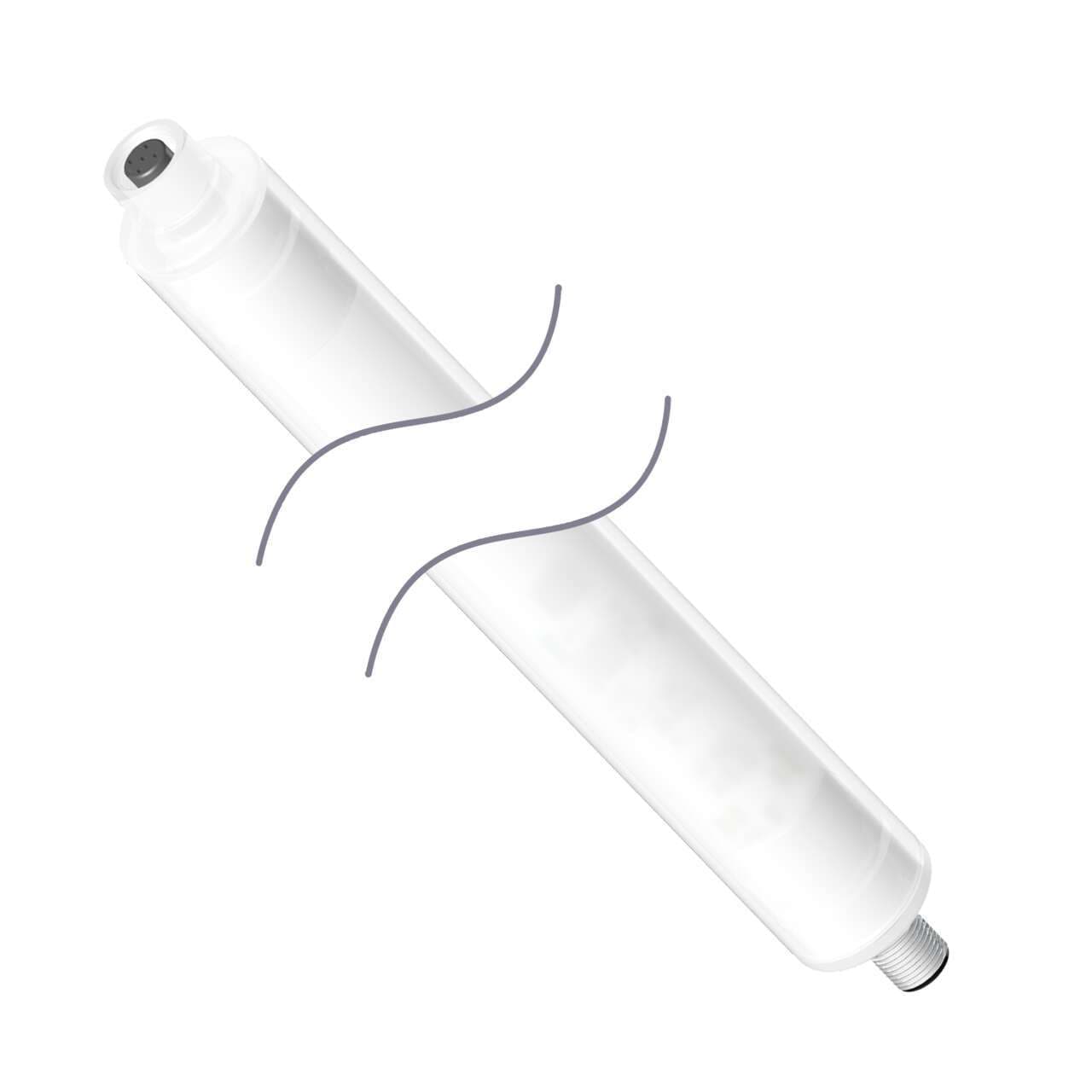

Banner Engineering WLS27CWW990DSQ is a single color series industrial sealed LED task light designed for a variety of applications. This task light features a diffused window cascadable 1-color Warm White (WW) LED illumination, operating on a supply voltage range of 12Vdc to 30Vdc with a nominal 24Vdc. It measures 990mm in length and 27mm in diameter, encased in a copolyester diffused window and FDA-grade copolyester outer housing, making it suitable for stringent environments. The cylindrical linear strip is pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. It offers a high degree of protection with ratings of IP66, IP67, and IP69K, ensuring durability against dust, water, and high-pressure washdowns. The task light operates efficiently in ambient air temperatures ranging from -40°C to +70°C. It includes 1 x digital input (12-30Vdc) for color control, consumes 2.8A of current, and provides a luminous flux of 2800 lm.
Related documents WLS27CWW990DSQ Specs
