WLS27CWW570DSQ Banner Signal Towers
Part#:WLS27CWW570DSQ
Manufacturer:Banner
Alt. Part#:95968
Product Lifecycle:Active
Get a quick Quote!
WLS27 Work Light Strip; Diffused Window; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: Warm White; Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27CWW570DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight453.592 g
- Country Of OriginMX
- Modbus RTU No
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Storage Temp (°C) -40 to 70
- Feature: Chemical Resistant Yes
- Color Technology Standard LED
- Dimming Option High-Low-Off
- Primary Housing Material FDA Copolyester
- Color Option 1 White
- Supply Voltage 12-30 V dc
- Feature: Hazardous Area No
- Illumination Yes
- Max Current Color (mA) 1600
- Environmental Rating IP66; IP67; IP69
- Wireless No
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 3000K (Warm)
- Max Op. Temperature (°C) 70
- Feature: Cascade Yes
- Power DC
- Lumens Color 1 1600
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Feature: Quick Disconnect Yes
- Housing Style Linear Strip
- Product Size (mm) 27
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 642.5
- Primary Window Material Copolyester Diffused
- Feature: Audible No
- Number of Colors / Segments 1
- Connection Integral QD
- Illuminated Length (LxWxH mm) 570.0
- IO Link No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27CWW570DSQ Description

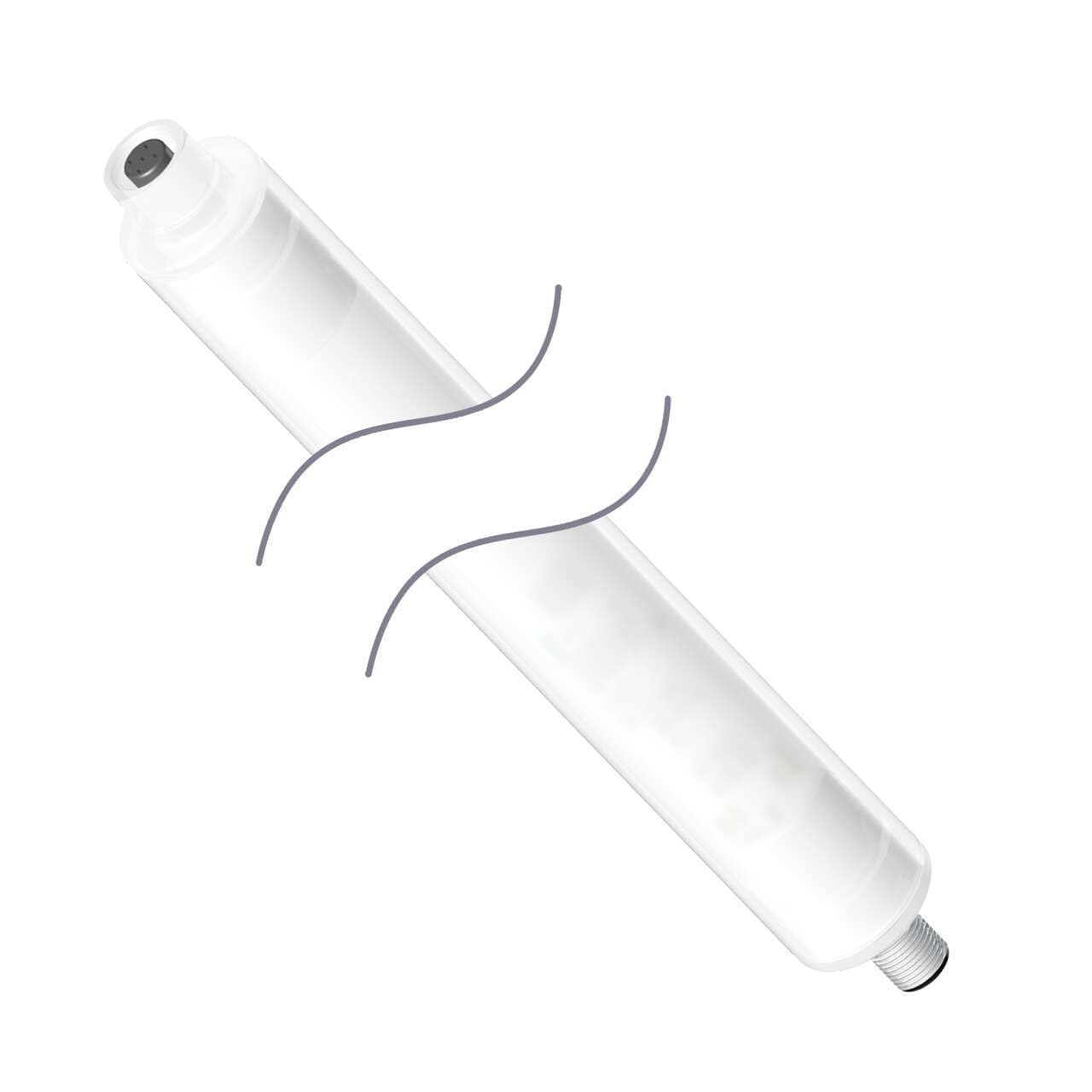

Banner Engineering WLS27CWW570DSQ is a single color series industrial sealed LED task light designed for a variety of applications requiring illumination. This task light features a diffused window cascadable 1-color Warm White (WW) LED illumination, operating on a supply voltage range of 12Vdc to 30Vdc with a nominal voltage of 24Vdc. It measures L570mm x D27mm, with a cylindrical linear strip shape and a 27mm tube diameter. The material used for the diffused window and the FDA-grade copolyester outer housing ensures durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The WLS27CWW570DSQ offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it suitable for harsh environments. It can operate in ambient air temperatures ranging from -40°C to +70°C. This model includes 1 x digital input (12-30Vdc) for color control and has a current consumption of 1.6A. It provides a luminous flux of 1600 lm (lumens), ensuring adequate lighting for various tasks.
Related documents WLS27CWW570DSQ Specs
1-year warranty
