WLS27CWR-850DSQ Banner Signal Towers
Part#:WLS27CWR-850DSQ
Manufacturer:Banner
Alt. Part#:96095
Product Lifecycle:Active
Get a quick Quote!
WLS27 Dual Color Light Strip; Length: 850 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White (100%) Red (100%); Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27CWR-850DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight680.388 g
- Country Of OriginMX
- Power Source DC
- Primary Housing Material FDA Copolyester
- Color Technology Standard LED
- Animation Option 2 Solid On
- Max Op. Temperature (°C) 70
- Feature: Cascade Yes
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Max Current Color (mA) 2400
- IO Link No
- Housing Style Linear Strip
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Connection Integral QD
- Color Option 2 Red
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 923.0
- Feature: Hazardous Area No
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 2
- Color Option 1 White
- Environmental Rating IP66; IP67; IP69
- Primary Window Material Copolyester Diffused
- Multi-Color Device Single Color On
- Power DC
- Lumens Color 1 1425
- Supply Voltage 12-30 V dc
- Feature: Chemical Resistant Yes
- Illumination Yes
- Animation Option 1 Solid On
- Illuminated Length (LxWxH mm) 850.0
- Feature: Quick Disconnect Yes
- Quick Disconnect Type M12 (Euro)
- Number of Input Pins/Conductors 4
- Modbus RTU No
- Product Size (mm) 27
- Lumens Color 2 600
- Feature: Washdown Rated Yes
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27CWR-850DSQ Description

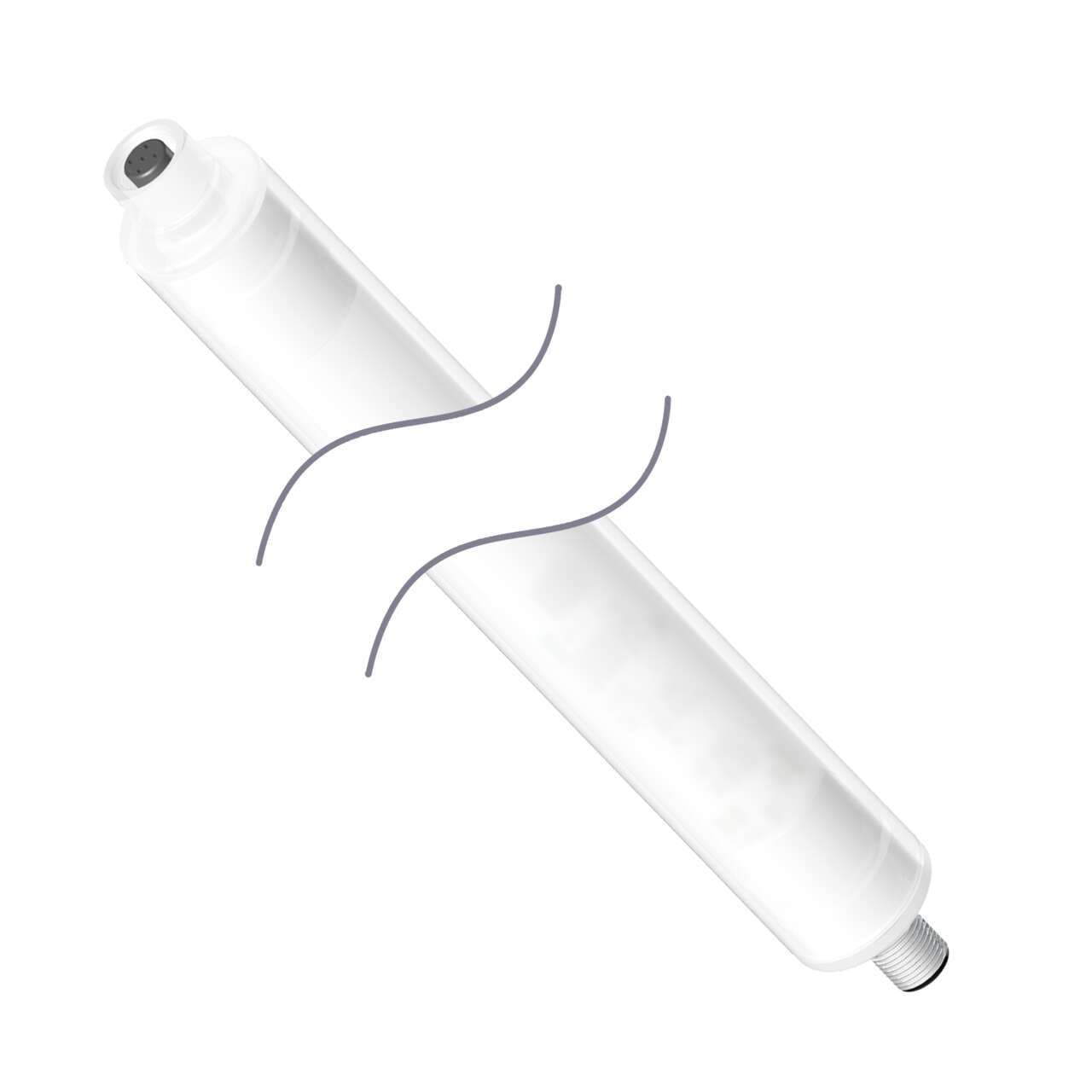

Banner Engineering WLS27CWR-850DSQ is a dual color series industrial sealed LED task light designed for a variety of applications requiring high-quality illumination. This task light features a diffused window cascadable 2-color W/R color pattern LED illumination, operating on a supply voltage range of 12Vdc to 30Vdc with a nominal 24Vdc. It measures 850mm in length and 27mm in diameter, constructed from FDA-grade copolyester for both the diffused window and the outer housing, ensuring durability and compliance with stringent standards. The cylindrical linear strip is pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. It offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it suitable for harsh environments. The ambient air temperature for operation ranges from -40°C to +70°C. It includes 2 digital inputs (12-30Vdc) for color control, consumes 2.4A of current, and provides a luminous flux of 1425 lumens, ensuring bright and effective lighting for various tasks.
