WLS27CWR-1130DSQ Banner Signal Towers
Part#:WLS27CWR-1130DSQ
Manufacturer:Banner
Alt. Part#:96096
Product Lifecycle:Active
Get a quick Quote!

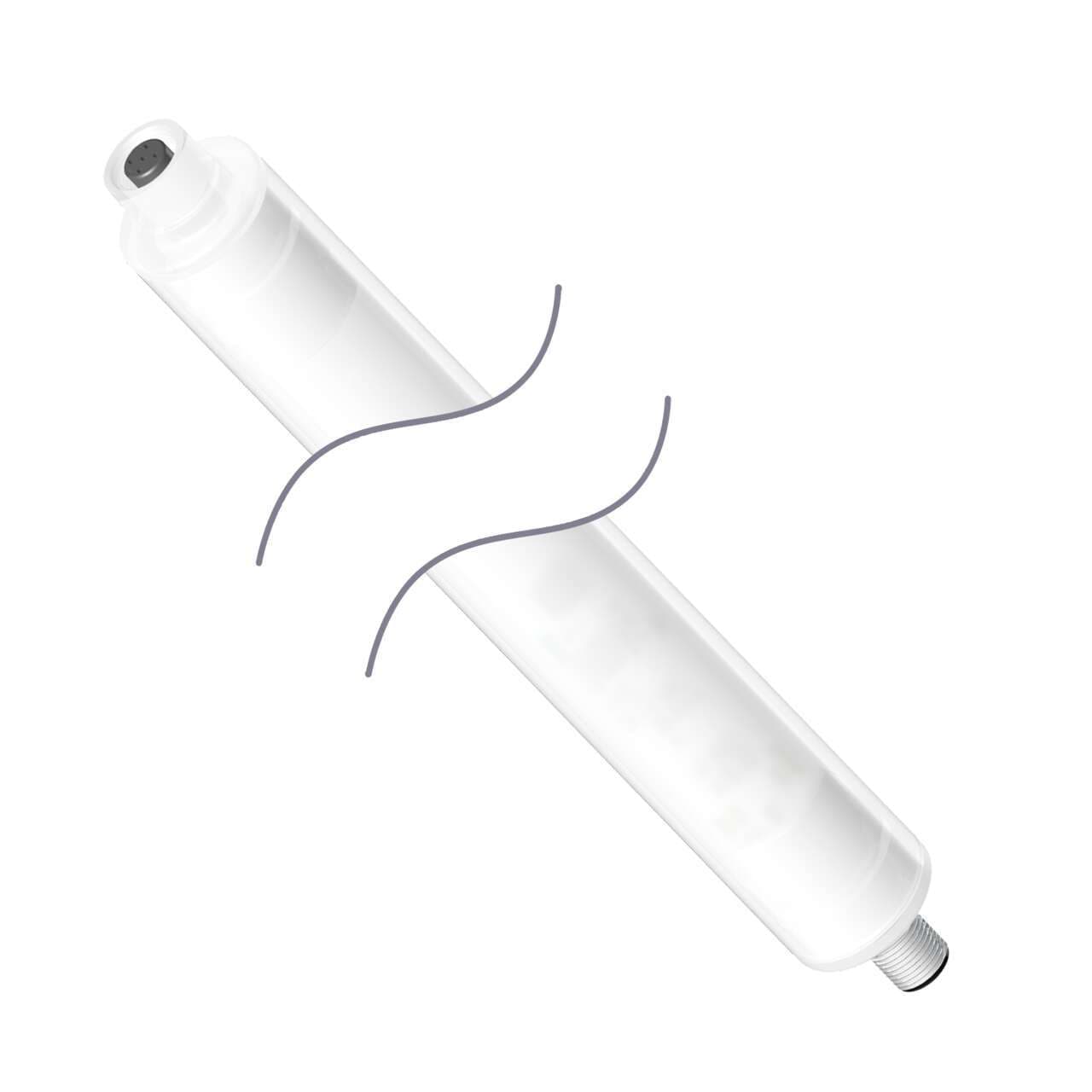

WLS27 Dual Color Light Strip; Length: 1130 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White (100%) Red (100%); Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27CWR-1130DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight816.4656 g
- Country Of OriginMX
- Primary Housing Material FDA Copolyester
- Color Technology Standard LED
- Color Option 2 Red
- Max Op. Temperature (°C) 70
- Multi-Color Device Single Color On
- Number of Colors / Segments 2
- Connection Integral QD
- Max Current Color (mA) 3200
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Illumination Yes
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 1192.5
- Feature: Hazardous Area No
- Housing Style Linear Strip
- Lumens Color 1 1900
- Illuminated Length (LxWxH mm) 1130.0
- Feature: Cascade Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Supply Voltage 12-30 V dc
- Primary Window Material Copolyester Diffused
- Modbus RTU No
- Product Size (mm) 27
- Color Option 1 White
- Lumens Color 2 800
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect Yes
- Mounting Thread No Thread
- Quick Disconnect Type M12 (Euro)
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Wireless No
- Power DC
- Animation Option 2 Solid On
- Environmental Rating IP66; IP67; IP69
- Feature: Chemical Resistant Yes
- Power Source DC
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Storage Temp (°C) -40 to 70
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27CWR-1130DSQ Description
Banner Engineering WLS27CWR-1130DSQ is a dual color series industrial sealed LED task light designed for a variety of applications. This task light features a diffused window cascadable 2-color W/R color pattern LED illumination, suitable for providing clear visibility in industrial environments. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L1130mm x D27mm, making it a cylindrical linear strip light. It is constructed from FDA-grade copolyester for both the diffused window and the outer housing, ensuring durability and compliance with relevant health standards. The light is equipped with a 4-pin M12 Euro-style QD connector for easy and secure connection. It offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it resistant to dust, water, and high-pressure water jets. The ambient air temperature range for operation is between -40°C and +70°C. Additionally, it features 2 digital inputs (12-30Vdc) for color control and has a current consumption of 3.2A.
