WLS27CWGRYB5-0285HS24Q Banner Signal Towers
Part#:WLS27CWGRYB5-0285HS24Q
Manufacturer:Banner
Alt. Part#:804575
Product Lifecycle:Active
Get a quick Quote!
WLS27 Multicolor Light Strip; Length: 285 mm; Heavy Diffuse Window; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White, Green, Red, Yellow, Blue; Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27CWGRYB5-0285HS24Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight261.722584 g
- Country Of OriginMX
- Housing Style Linear Strip
- Illumination Yes
- Product Size (mm) 27
- Lumens Color 2 320
- Color Option 3 Red
- Lumens Color 5 100
- Min Op. Temperature (°C) -40
- Power DC
- Color Option 1 White
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Color Option 5 Blue
- Feature: Washdown Rated Yes
- Primary Housing Material FDA Copolyester
- Animation Option 1 Solid On
- Animation Option 4 Solid On
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 360.0
- Multi-Color Device Single Color On
- Number of Colors / Segments 5
- Quick Disconnect Type M12 (Euro)
- Animation Option 3 Solid On
- Max Current Color (mA) 400
- Max Op. Temperature (°C) 50
- Power Source DC
- Connection Integral QD
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Color 5 - Wavelength/Color Temp/Coordinates 470 nm
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Mounting Thread No Thread
- Color Option 2 Green
- Lumens Color 4 456
- Environmental Rating IP66; IP67; IP69
- Feature: Chemical Resistant Yes
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Lumens Color 1 520
- Color Option 4 Yellow
- Number of Input Pins/Conductors 4
- Primary Window Material Copolyester Heavy Diffused
- Modbus RTU No
- Animation Option 5 Solid On
- Feature: Audible No
- Indication Yes
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Lumens Color 3 148
- Illuminated Length (LxWxH mm) 285.0
- Color Technology Standard LED
- Animation Option 2 Solid On
- Color 4 - Wavelength/Color Temp/Coordinates 580 nm
- Supply Voltage 24 V dc
- Feature: Hazardous Area No
- Wireless No
- Feature: Cascade Yes
- Feature: Quick Disconnect Yes
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27CWGRYB5-0285HS24Q Description

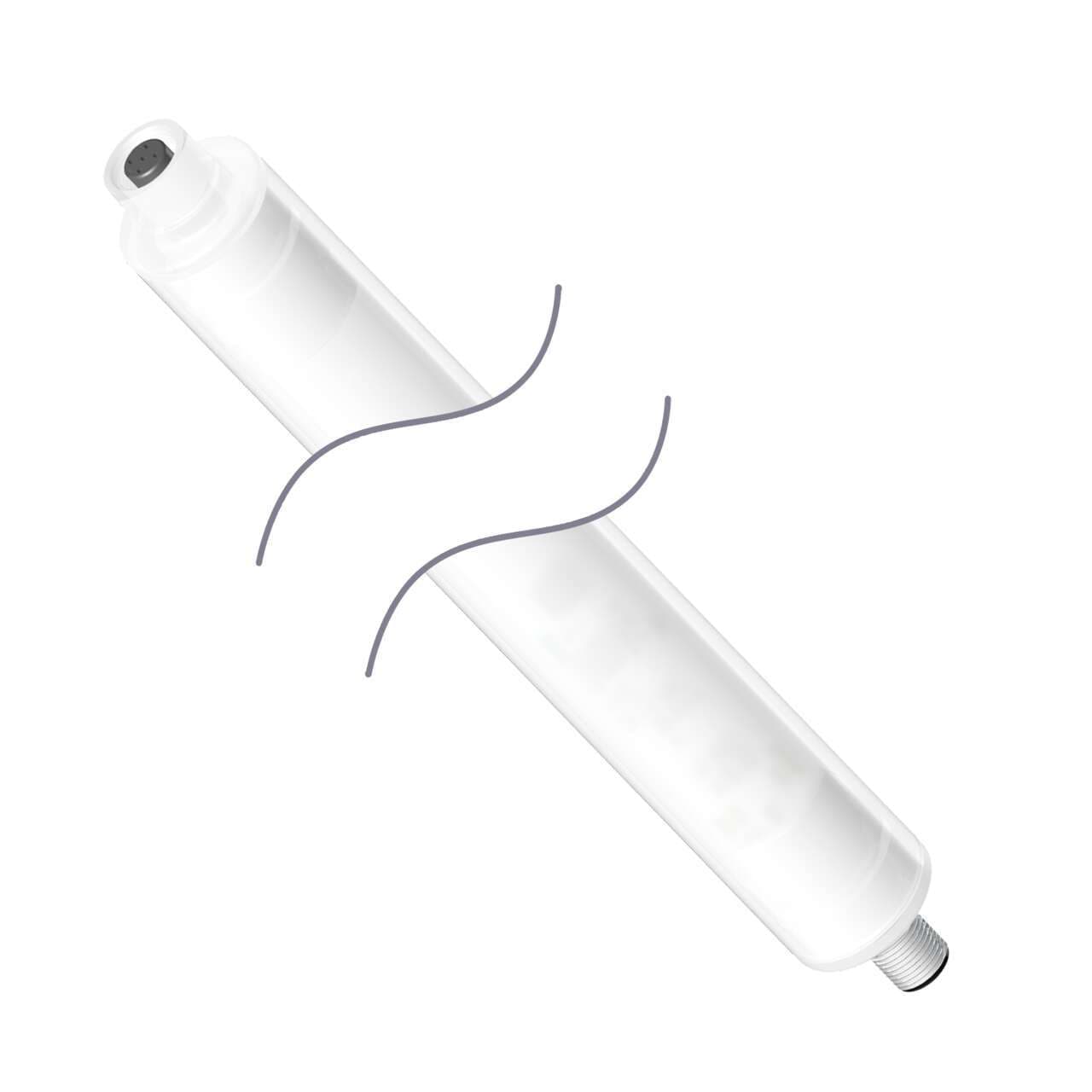

Banner Engineering WLS27CWGRYB5-0285HS24Q is a task light from the EZ-STATUS series designed for harsh environments. This shatterproof LED strip light features a binary control, heavy diffused window, and is cascadable, with a 5-color W/G/R/Y/B color pattern LED illumination. It comes in a black housing and operates on a 24Vdc supply voltage. The dimensions are L285mm x D27mm, with a 27mm tube diameter. It is constructed with an anodized aluminum inner housing and FDA-grade copolyester outer housing, ensuring durability. The connection is facilitated by a pre-equipped 4-pin M12 Euro-style QD connector, and its cylindrical linear strip shape is designed for easy integration. This product offers a high degree of protection with IP66, IP67, and IP69K ratings, making it suitable for a wide range of environmental conditions. It can operate in ambient air temperatures ranging from -40°C to +50°C and includes 3 x digital inputs (24Vdc) for color control.
Related documents WLS27CWGRYB5-0285HS24Q Specs
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
