WLS27CWB-570DSQ Banner Signal Towers
Part#:WLS27CWB-570DSQ
Manufacturer:Banner
Alt. Part#:802554
Product Lifecycle:Active
Get a quick Quote!
WLS27 Dual Color Light Strip; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White (100%); Blue (100%); Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27CWB-570DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight453.592 g
- Country Of OriginMX
- Animation Option 1 Solid On
- Cable Length (m) 2
- Lumens Color 2 220
- Feature: Washdown Rated Yes
- Modbus RTU No
- Illumination Yes
- Product Size (mm) 27
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Primary Window Material Copolyester Diffused
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 1 White
- Color 2 - Wavelength/Color Temp/Coordinates 470 nm
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant Yes
- Number of Colors / Segments 2
- Lumens Color 1 950
- Animation Option 2 Solid On
- Feature: Audible No
- Mounting Thread No Thread
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Storage Temp (°C) -40 to 70
- Wireless No
- Primary Housing Material FDA Copolyester
- Housing Style Linear Strip
- Feature: Hazardous Area No
- Max Op. Temperature (°C) 70
- Max Current Color (mA) 1600
- IO Link No
- Power Source DC
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 642.5
- Feature: Quick Disconnect Yes
- Color Option 2 Blue
- Connection Integral QD
- Number of Input Pins/Conductors 4
- Feature: Cascade Yes
- Power DC
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP66; IP67; IP69
- Multi-Color Device Single Color On
- Pro-Editor Compatible (Discrete) No
- Illuminated Length (LxWxH mm) 570.0
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27CWB-570DSQ Description

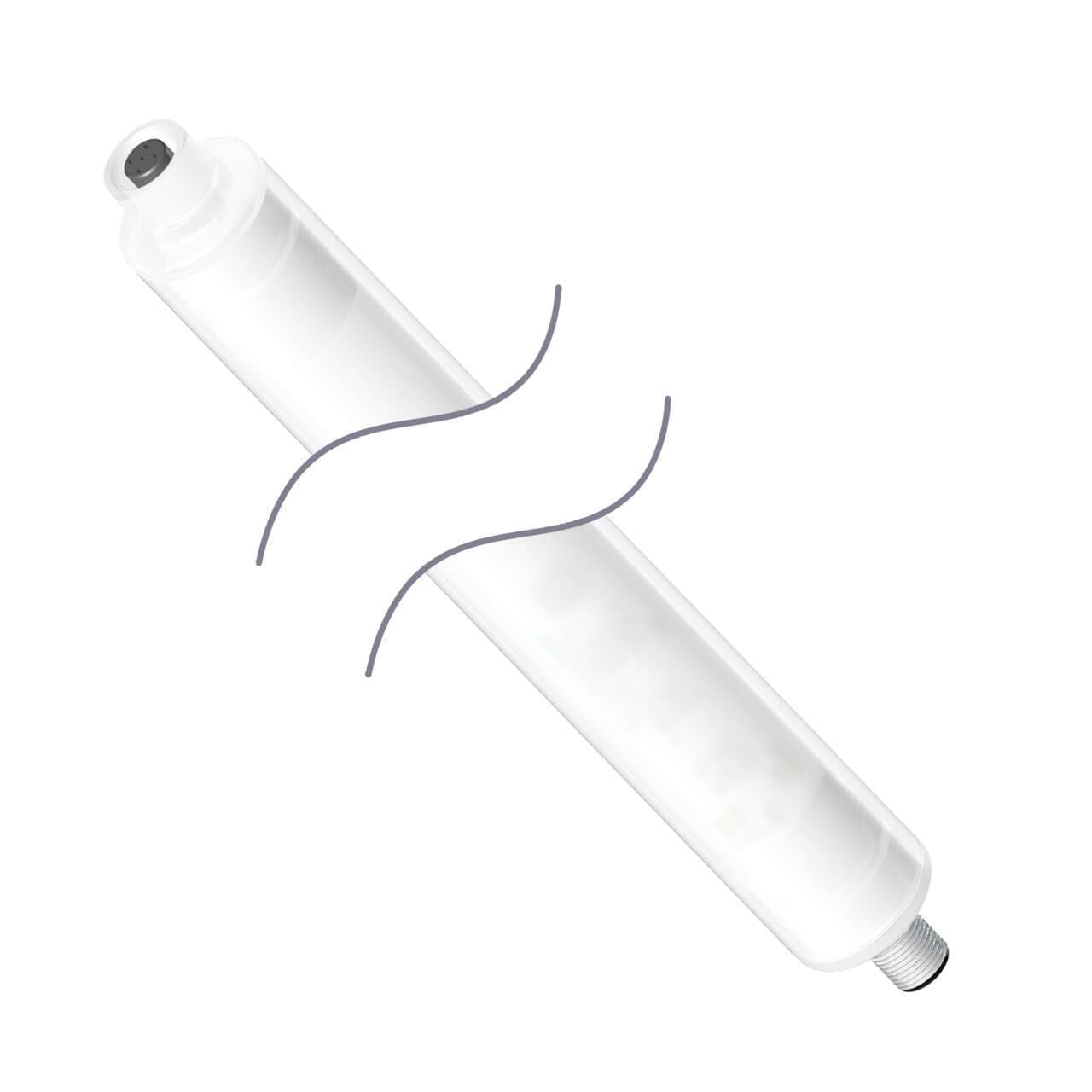

Banner Engineering WLS27CWB-570DSQ is a dual color series industrial sealed LED task light designed for a variety of applications requiring high-quality illumination. This task light features a diffused window cascadable 2-color W/B color pattern LED illumination, suitable for environments needing clear visibility. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this cylindrical linear strip light are L570mm x D27mm, with a diameter of 27mm, making it compact and versatile for installation in limited spaces. The material used for the diffused window and FDA-grade copolyester outer housing ensures durability and compliance with stringent safety standards. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy and secure connection. The WLS27CWB-570DSQ offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it resistant to dust, water, and high-pressure washdowns. It can operate in ambient air temperatures ranging from -40°C to +70°C, accommodating a wide range of industrial environments. The light includes 2 x digital inputs (12-30Vdc) for color control, has a current consumption of 1.6A, and provides a luminous flux of 950 lm, ensuring bright and effective lighting for tasks.
