WLS27CGYRXX6-0285DS24Q Banner Signal Towers
Part#:WLS27CGYRXX6-0285DS24Q
Manufacturer:Banner
Alt. Part#:804341
Product Lifecycle:Active
Get a quick Quote!
WLS27 Multicolor Light Strip; I/O Block Control; Length: 285 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: Green, Yellow, Red; Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27CGYRXX6-0285DS24Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight263.08336 g
- Country Of OriginMX
- Power Source DC
- Lumens Color 1 400
- Color 2 - Wavelength/Color Temp/Coordinates 580 nm
- Illuminated Length (LxWxH mm) 285.0
- Number of Colors / Segments 3
- Animation Option 2 Solid On
- Max Current Color (mA) 400
- Storage Temp (°C) -40 to 70
- IO Link No
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Animation Option 1 Solid On
- Lumens Color 3 185
- Wireless No
- Housing Style Linear Strip
- Color Option 2 Yellow
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Max Op. Temperature (°C) 50
- Indication Yes
- Color Technology Standard LED
- Lumens Color 2 570
- I/O Block Compatible Yes
- Feature: Cascade Yes
- Mounting Thread No Thread
- Connection Integral QD
- Color Option 3 Red
- Min Op. Temperature (°C) -40
- Primary Housing Material FDA Copolyester
- Power DC
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Number of Input Pins/Conductors 4
- Primary Window Material Copolyester Diffused
- Product Size (mm) 27
- Quick Disconnect Type M12 (Euro)
- Supply Voltage 24 V dc
- Feature: Washdown Rated Yes
- Modbus RTU No
- Illumination Yes
- Color Option 1 Green
- Animation Option 3 Solid On
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 360.0
- Feature: Chemical Resistant Yes
- Environmental Rating IP66; IP67; IP69
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Multi-Color Device Single Color On
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27CGYRXX6-0285DS24Q Description

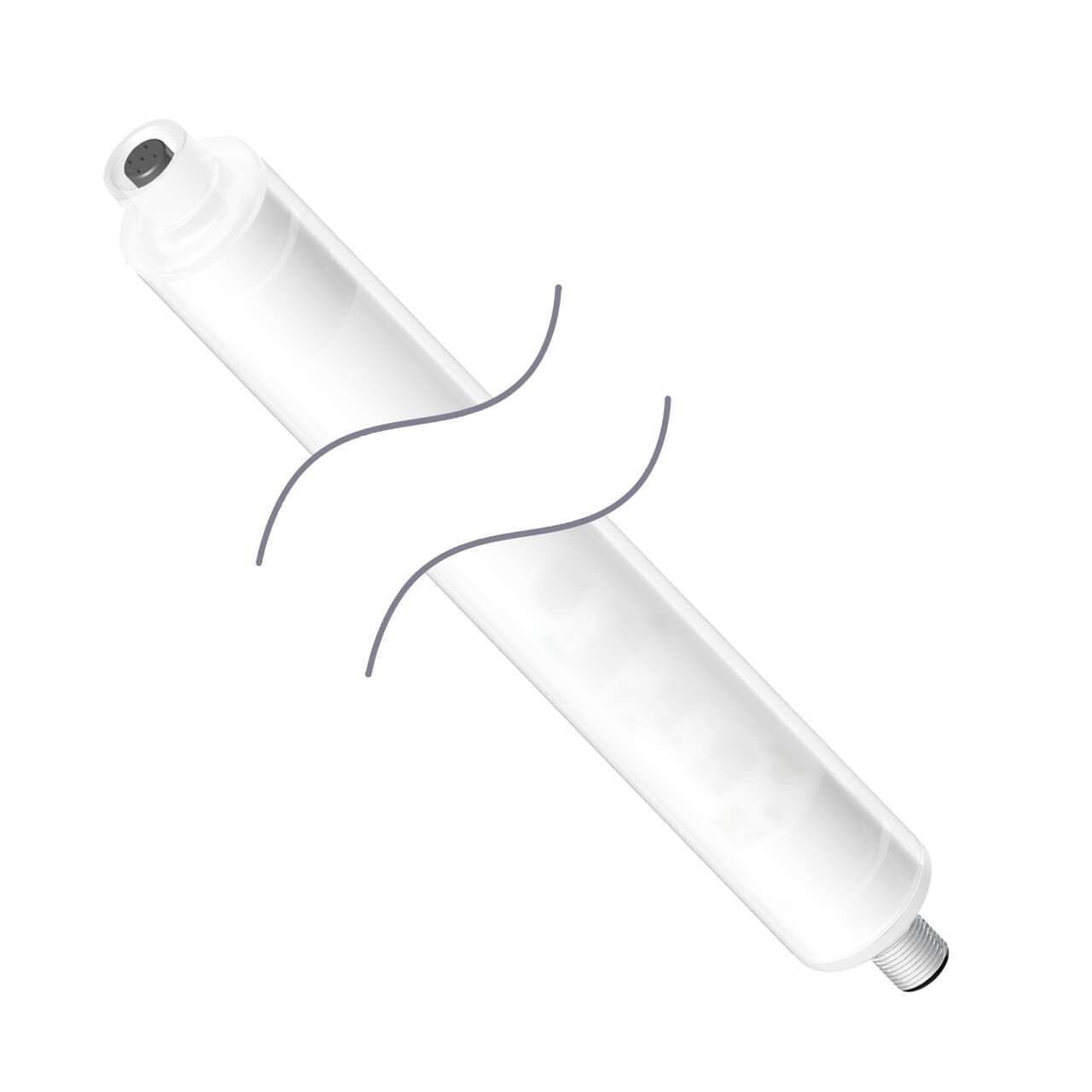

Banner Engineering WLS27CGYRXX6-0285DS24Q is a task light from the EZ-STATUS series designed for harsh environments. This shatterproof LED strip light features an I.O. block control, a diffused window, and is cascadable, with a 3-color G/Y/R color pattern LED illumination. It has a black housing and operates on a 24Vdc supply voltage. The dimensions are L285mm x D27mm, with a 27mm tube diameter. It is constructed with an anodized aluminum inner housing and an FDA-grade copolyester outer housing. The connection is facilitated by a pre-equipped 4-pin M12 Euro-style QD connector. Its cylindrical linear strip shape is designed to offer a degree of protection rated at IP66, IP67, and IP69K, making it suitable for operation in ambient air temperatures ranging from -40°C to +50°C. It also features 3 x digital inputs (24Vdc) for color control.
Related documents WLS27CGYRXX6-0285DS24Q Specs
